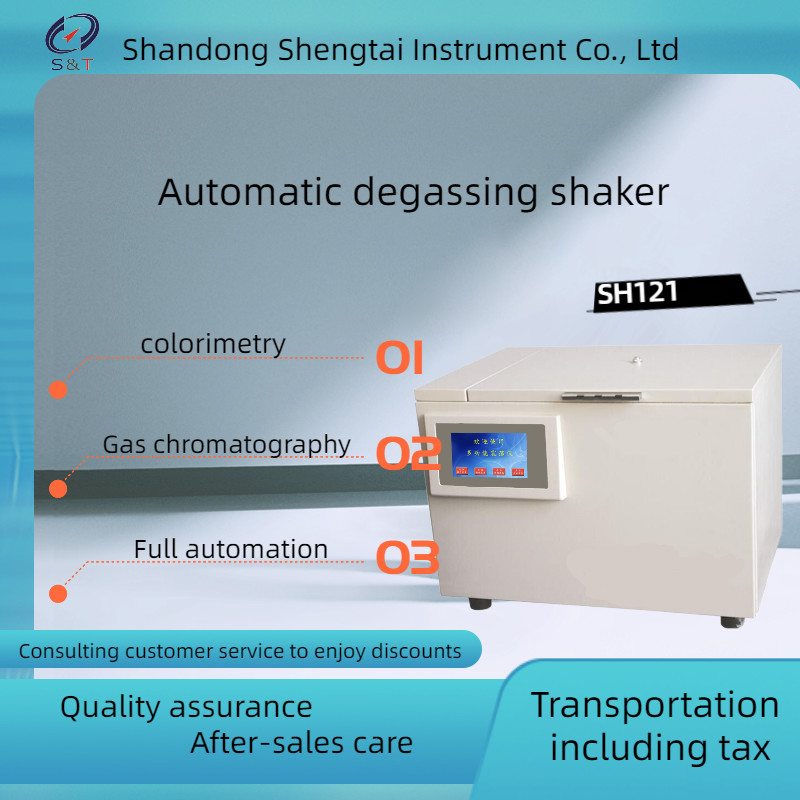

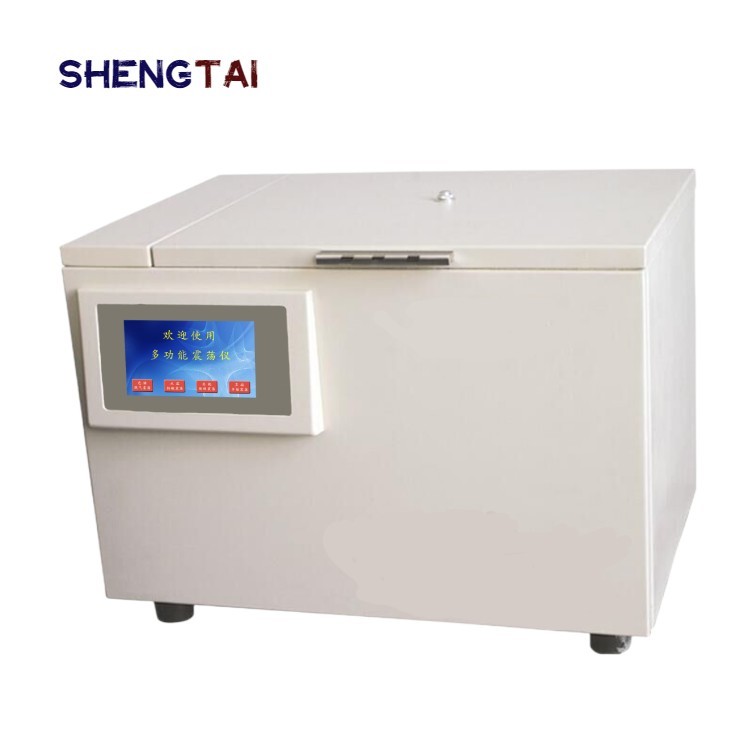

SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester

  • SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester
  • SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH121
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 5-8work days
Payment Terms T/T
Supply Ability 100 set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH121 Display Large Screen LCD Display (240*128)
Temperature Range Room Temperature ~100℃ Power Source AC 220V±22V
Temperature Control Accuracy Room Temperature ~50℃±0.2℃ Oscillation Frequency 275±3 Times/min
Oscillation Amplitude 35mm
Highlight

Transformer Degassing Oscillation Tester

,

Automatic Degassing Oscillation Tester

,

Multi Functional Degassing Oscillation Tester
Leave a Message
Product Description

SH121 degassing vibration instrument

Applicable standard:GB/T17625 DL429.4 standard, used for oil dissolved gas component content determination method (gas chromatography) oscillation degassing;

Oscillating degassing of water-soluble acids in oil (colorimetric method) can also be used for constant temperature and timing oscillation in other physical and chemical experiments.

1, GB7598-87 transformer oil in operation, turbine oil determination of water-soluble acid (colorimetric method);

2, SD304-89 insulation oil content determination of dissolved gas components (gas chromatography);

3, GB259-88 petroleum products water-soluble acid and alkali determination method.

Multi-Functional Automatic Degassing Oscillator-Automatic Degassing Oscillator

Automatic Constant Temperature Timing Heating Oscillator Multifunctional Degassing Oscillation Tester

Multi Function Temperature-Controlled Full Automatic Degassing Oscillator for Gas Chromatography

Automatic Transformer Oil Multifunctional Degassing Oscillator

SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester

Multi Function Temperature-Controlled Full Automatic Degassing Oscillator for Gas Chromatography



The main features

Adopt blue LCD large screen display, Chinese menu, no logo button.

Sliding door design makes it more convenient to take and place samples.

It has the characteristics of small volume, low noise, uniform distribution of temperature field and eight samples oscillating at a time.

The working process is fully automated, which reduces the labor intensity of the staff and improves the work efficiency. It is an ideal replacement product for the laboratory



Technical parameters

Display large screen LCD display (240*128);
Temperature range room temperature ~100℃;
Power source AC 220V±22V
Temperature control accuracy

room temperature ~50℃±0.2℃;


Oscillation frequency 275±3 times/min;
Oscillation amplitude 35mm
Equation 1 After constant temperature at 50℃ for 10 minutes, oscillate for 20 minutes and rest for 10 minutes.
Formula 2

after constant temperature at 50℃ for 10 minutes, oscillate for 5 minutes and keep the constant temperature at 75℃;


Self-defined meaning

20~99 minutes to set the oscillation, static time;

Set arbitrary temperature within 20~99℃
Sample size

Four 250ml triangular flasks can be placed

8 100ml syringes can be placed;
Instrument size: 500mm × 350mm × 375mm net weight: 31.5kg
Package size: 580mm × 430mm × 465mm gross weight: 39kg





Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Oscillating disk 1 set
3 power cord 1 piece
4 Instructions 1 copy
5

Packing list



 1 copy
6 Certificate warranty card 1 copy







SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester 0



OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.



Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated





SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester 1
