Existent Gum Tester Jet Evaporation Method ASTM D381 Diesel Fuel Testing Equipment

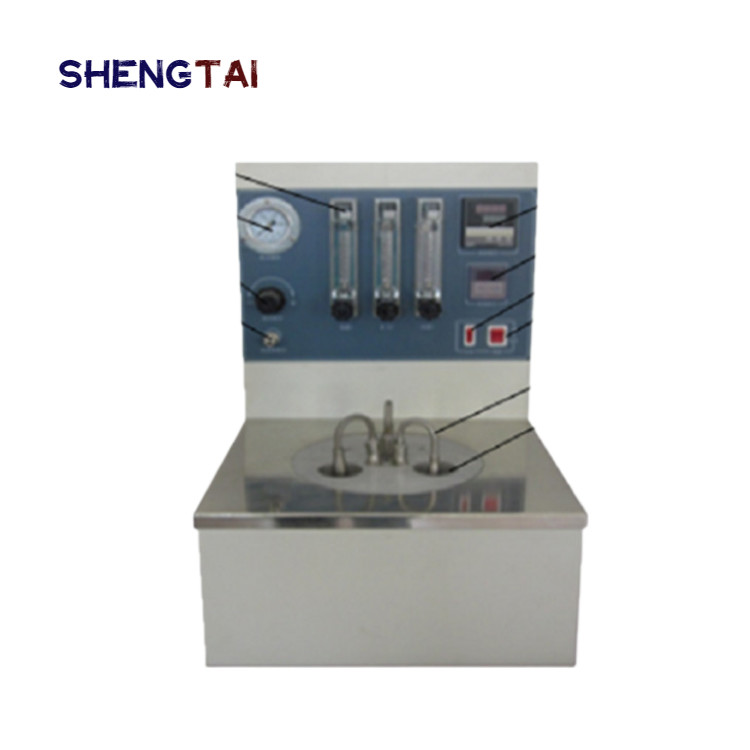

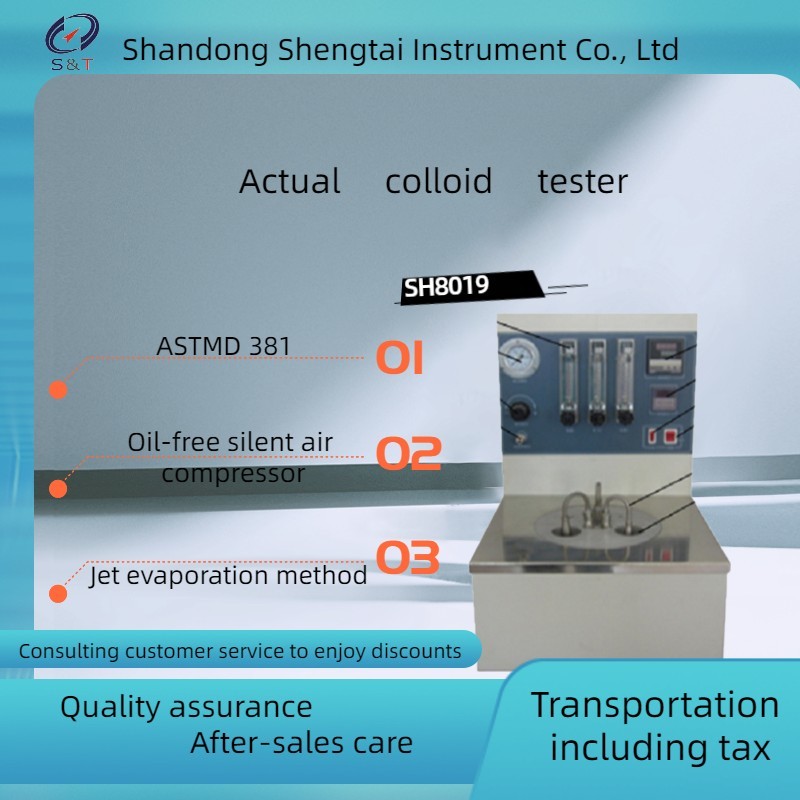

SH8019 Existent Gum Tester Jet Evaporation Method Petroleum Tester is specially used for measuring the actual gum content in aviation gasoline and automotive gasoline.

It is suitable for the actual gum test of aviation gasoline and automobile gasoline according to the method specified in ASTM D381 equivalent to GB/T 8019-2008 "Determination of fuel gum content by jet evaporation method". It is equipped with special oil-free silent air compressor.

Main technical specification and parameters:

Main technical parameters and performance

1, working power supply: AC (220±10%) V, 50Hz, 3500W.

2, evaporation bath type, size: aluminum bath block Φ260 ㎜×130mm (diameter × high).

3. Number of test holes: 3.

4, the test hole size: Φ 51 mm ×70mm (diameter × depth).

5, working temperature: (160~165)℃.

6, temperature control method: automatic temperature control.

7, temperature display: digital display.

8, flow display: by the float type air flow meter display.

9, air pressure reducing valve working pressure: 0.07Mpa.

10, nozzle outlet air flow rate: per hole (1000±150)mL/ s.

11, appearance size: 590×480×340mm (length × width × height, not including the thermometer holder).

OUR service

We advocate a technical marketing model, is a professional service, a pre-sale service, in-sales service and after-sales service throughout the body of trusted professional services.

Pre-sales service to provide customers with pre-sales technical advice, design of the test plan, assist users to complete the test, assist users in making inquiries for special auxiliary equipment for components.

After the contract is signed, we still negotiate and communicate with the user, confirm the specific test items and specific test requirements of the user, and communicate with the user's user department or user further. To ensure that the equipment provided to the user can fully meet the overall requirements of the user.

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
