    SH6532A Salt content in crude oil: suitable for measuring crude oil with salt content (mass fraction) ranging from 0.0005% to 0.15%, as well as heavy petroleum products such as residual oil and fuel oil. It can also be used to determine the contamination of used turbine oil and marine fuel oil by seawater. When the required precision does not exceed the range specified in this method, it can also be used for other products.

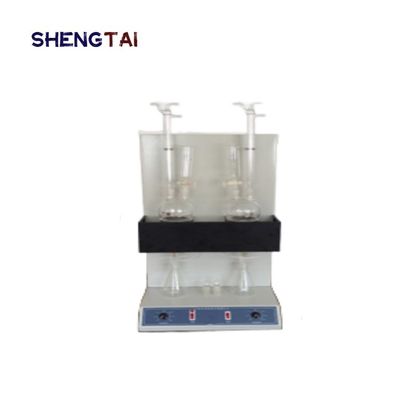

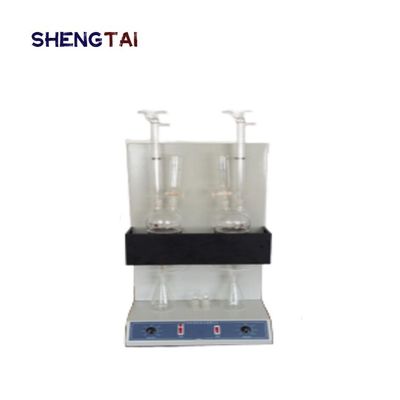

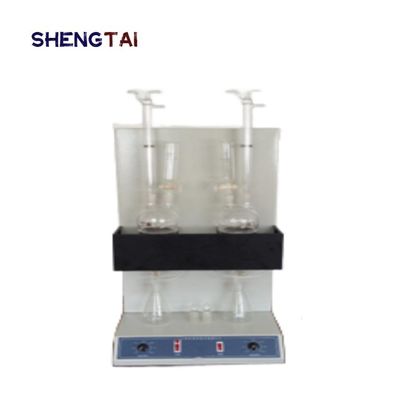

The SH6532A crude oil salt content tester (dual well) is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T6532 "Determination of salt content in crude oil - Potentiometric titration method"

Salt Content Tester For Crude Oil(Electrometric Method)Conforms to ASTM D6470 Petroleum Testing Equipment

ASTM D6470 Petroleum Products Lab Salt Content Tester/Salt in Crude Oil Analyzer

Crude Petroleum Salt Content Tester, Content in Crude Oil Tester

Turbine Oil Fuel Oil Crude Oil Salt Content Tester

Crude Petroleum / Fuel Oil Salt Content Tester

Instrument structure

lExtractor: consisting of a flask and a heating unit, with a flask volume of 500ml; The heating part consists of an electric heating wire wound around the lower end.

lColumn shaped drip funnel: used to add hot toluene, anhydrous ethanol, and other reagents for quantitative liquid separation.

lCondenser: It condenses the distilled gas.

lWater volume regulating valve: The water inlet of the water volume regulating valve is connected to tap water, the water outlet is connected to the water inlet of the condenser, and the water outlet of the condenser is connected to the sewer. Adjust the water inflow of the condenser through this valve.

lThermostatic electric furnace: used to heat the test solution that needs to be heated.

lGlass container: with a capacity of 1000ml, it is used to heat the test solution that needs to be heated.

lTriangular flask: A ground triangular flask used to receive the solution discharged from the flask.

lTriangular bottle stopper: The stopper of a triangular bottle.

l2-core aluminum plug: working power plug for extractor heating wire.

lSeparating funnel piston: the control piston for the extractor to discharge the solution.

lElectrical control box: the electrical part of the control instrument

Note: The voltage adjustment knob 1 (voltage adjustment knob 2) must be adjusted slowly to make the voltage rise slowly. Sudden increase in voltage is not allowed to prevent damage to the device.

Main technical parameters and indicators

lExtractor: Comply with the specifications and dimensions of glassware in GB/T6532 standard;

lExtractor heating power: 300W × 2；

lPower of thermostat electric furnace: 600W;

lWorking power supply: AC (220V ± 10V), 50Hz.

lPackage size: 550 × 400 × 380mm, weight approximately 12kg

lNote: The customer provides a magnetic stirrer and a potentiometric titrator

Packing list

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
