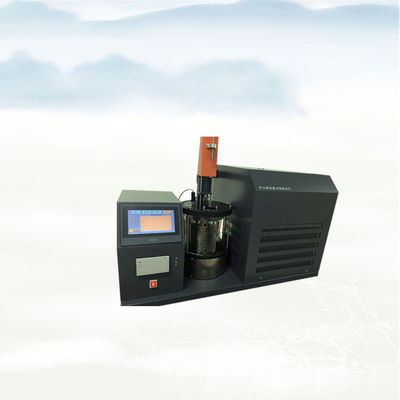

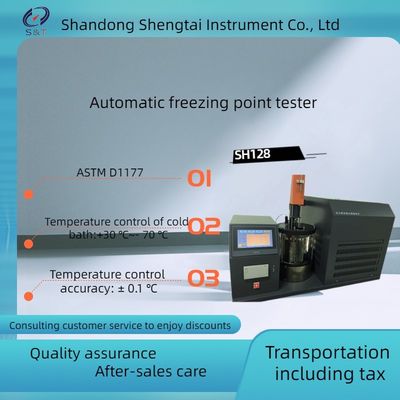

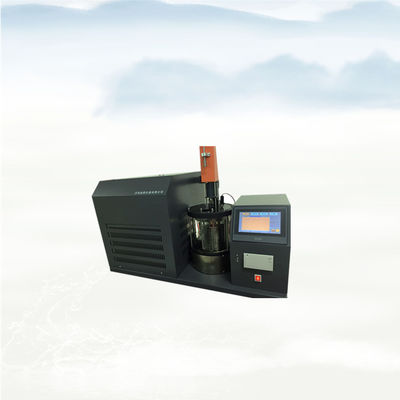

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

    SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.

Suitable for measuring freezing point of engine coolant and concentrated liquid.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.

Technical parameters

1, working power supply: AC220V±10%;

50 hz.

2, working cold tank: double vacuum glass bath.

3, cold tank temperature control: +30℃ ~ -70℃.

(customized +20℃ ~ -80℃)

4, temperature control accuracy: ±0.1℃.

5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.

6, Refrigeration system: imported overlapping refrigeration compressor.

7, sample mixing: synchronous reducer motor, 1 times/second.

8. Ambient temperature: ≤30℃.

9, relative humidity: ≤85%.

10. Power consumption of the whole machine: about 1500W.
