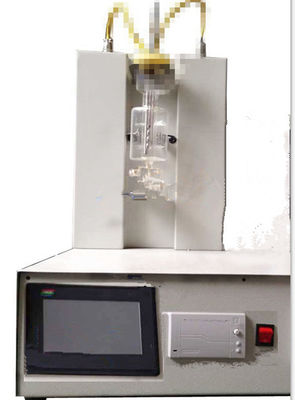

The fully automatic cloud point measuring instrument starts with one click and the process is automatically completed

SH412 automatic chemical turbidity point tester is designed and manufactured according to the requirements stipulated in national standard GB/T5559-2010 "Determination of Turbidity point of Ethylene oxide type and Ethylene oxide -- propylene oxide block polymerization type non-ionic surfactant", and is suitable for determination of turbidity point of light-colored chemical products.

Performance Features:
1.7-inch color LCD touch screen.
2. Adopt photoelectric sensor imported from abroad, the test result is accurate and repeatable.
3. Simple operation, one-click start, the test process will be completed automatically.
4. The host is controlled by microprocessor program, and the test process is automatically heated, stirred, identified and stored.
6. Automatic printing, automatic stop after the test.
7. The experimental results can be exported through the USB flash disk, and can be compared for many times after being stored in the computer
8. Date password setting function.
Technical parameters:
Standard: GB/T5559
Temperature control range: room temperature ~200℃
Temperature control accuracy: ±0.1℃.
Heating method: electric heating rod
Heating power: 60W
Stirring mode: automatic stirring by motor
Detection method: photoelectric sensor
Store records: 200
Printing method: Micro printer
Power supply: AC 220V± 10% 50HZ
Storage: Experimental results can be stored in 199 groups of historical data for easy query;
Result output: At the same time can be equipped with U disk output function, output to the PC side for long-term storage
Output format: The output format of the usb flash disk is CSV or Excel.
Data extension: laser printer interface, link to HP1108 laser printer (optional).
Data protection: With date password setting function.
Standard printing: standard printing with automatic measurement and thermal sensitivity of micro printer
Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later
Data management: Can connect to limIS system
Data memory: Microcomputer instrument memory can be expanded to 16 gigabytes.
