ASTM D2386 Lab Test Instruments Aviation Coal Freezing Point Tester Dual automatic mixing SH128C

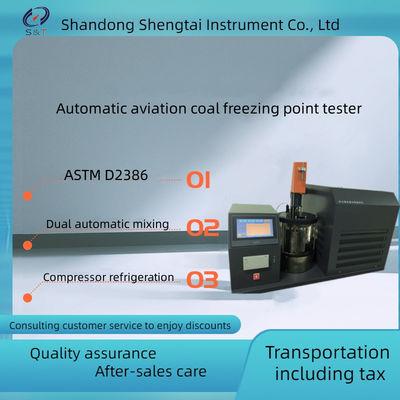

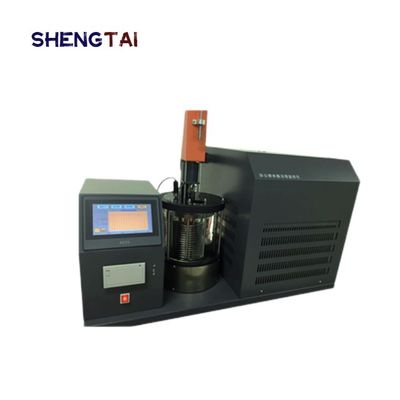

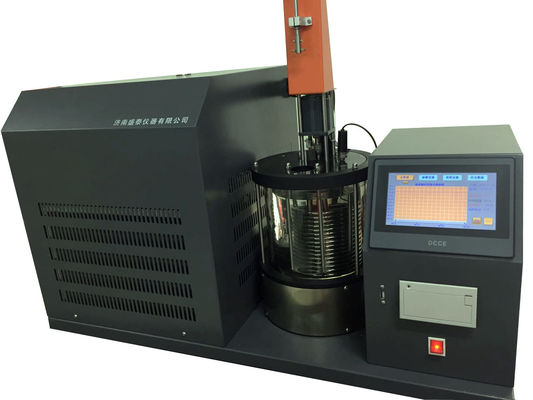

SH128C Automatic Aviation Coal Freezing Point Tester

Overview
SH128C automatic jet coal freezing point tester is designed and manufactured according to GB / T 2430 "Jet Fuel Freezing Point Determination Method" and ASTM D2386. It is suitable for determining the freezing point of jet fuel oil.

Instrument features:
1. Using embedded system design, using imported PT100 temperature sensor,
2. Automatic detection during the whole test process; 7-inch color touch screen;
3. Can store test results; can view historical data; print results on the instrument,
4. Mechanical automatic stirring, double automatic stirring of bath and sample
5. Experimental results can be exported via U disk, and can be tested and compared multiple times after being stored in the computer
6. Adopt optical fiber sensor to judge the crystallization temperature and decrystallization temperature.

Technical Parameters
1. Working power supply: AC220V ± 10%; 50Hz.
2. Working cold bath: Double-layer vacuum glass bath.
3. Temperature control of cold bath: + 30 ℃ ～ -70 ℃.
4. Temperature control accuracy: ± 0.5 ℃.
5. Bath liquid stirring: The stirring motor automatically stirs, the power is 6W, 1200r / min.
6. Refrigeration system: Imported cascade refrigeration compressor.
7. Sample stirring: Synchronous gear motor, 1 time / second.
8. Double-wall glass test tube Freezing point test tube: outer tube outer diameter 30 ± 0.7mm wall thickness 1.9 ± 0.3mm
The inner diameter of the inner tube is 18.7 ± 1.1mm long 232mm wall thickness 1.65 ± 0.35mm
9. Ambient temperature: ≤30 ℃.
10. Relative humidity: ≤85%.
11. Power consumption of the whole machine: about 1500W.
