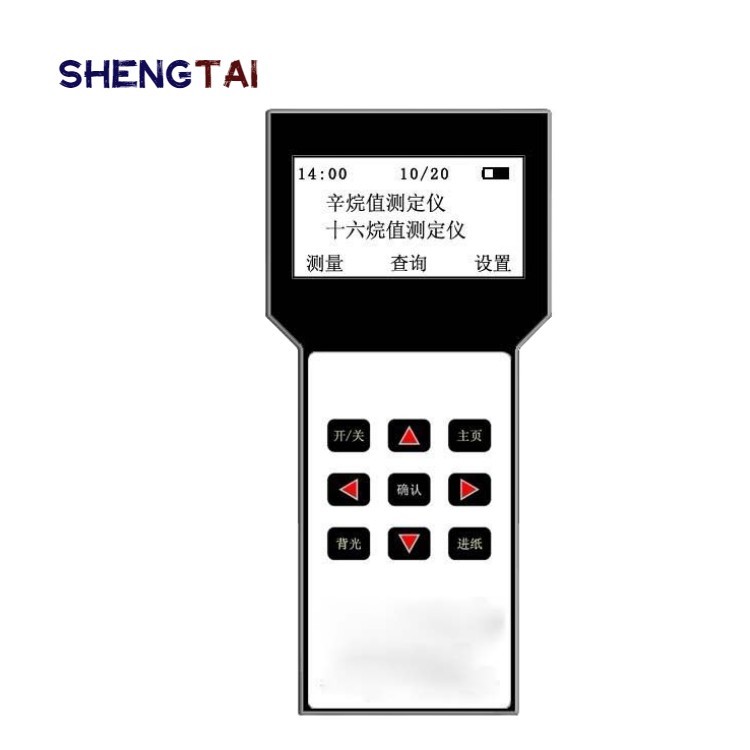

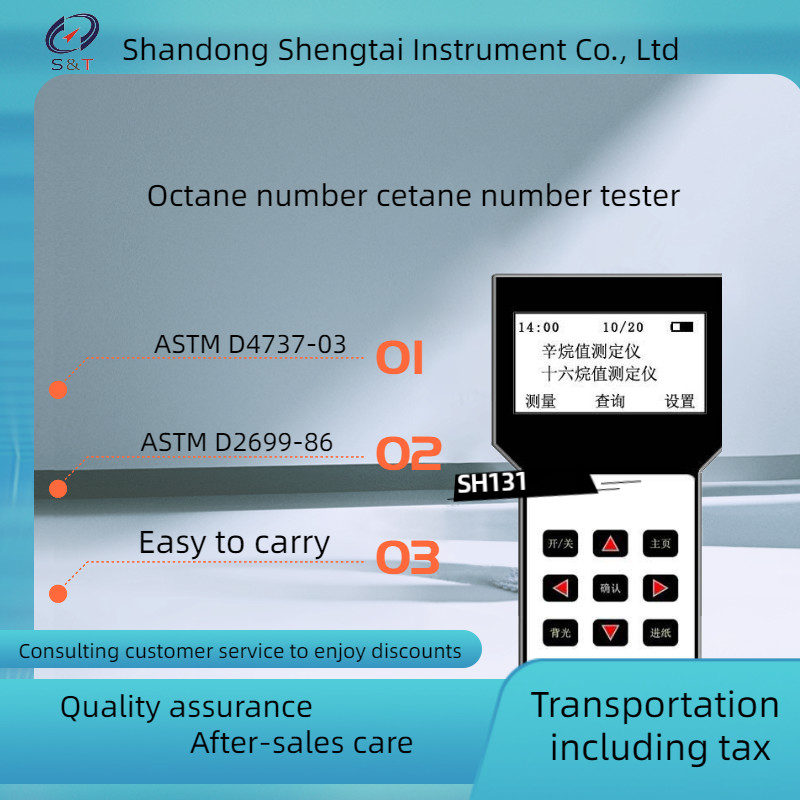

SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699

  • SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699
  • SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699
  • SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH131
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH131 Measuring Time (seconds) <20
Output Way LCD Display, Print Out The Critical Value Of Low Battery Voltage V 2.5
Cetane Number Measurement Range (CN), In CN Units 20-100
Highlight

1500W freezing point teste

,

ASTM D117 Freezing Point Tester
Leave a Message
Product Description

SH131 octane cetane number tester is adopt international advanced measuring principle, according to the diversity of domestic oil product design and development, fill the blank of the variety of product testing, with precise and can quickly detect the octane value of the product and cetane number, both Chinese and English two languages, the large capacity data storage and can print directly measured values, page design humanized operation is simple, adopts imported case and chips, sensors use alloy metal seal design, super long standby, a charging circuit suitable for on-site, field and laboratory work.



New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699

Portable Octane Number & Cetane Number Tester

Portable Octane and Cetane Number Tester

New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699

Automatic Biodiesel Cetane Number Tester for Cetane Number Testing of Biodiesel



Main features

1. Can simultaneously detect gasoline octane number and diesel cetane number, one machine dual use.

2. Through long-term data acquisition instrument, database, complete with new technology to develop a variety of detection mode, detectable methanol gasoline, ethanol gasoline, naphtha, solvent oil, straight run oil, light oil, aromatic hydrocarbons, MTBE, manganese base, methanol diesel, catalytic diesel oil, biological diesel oil, emulsified diesel oil and other oil products, fill the some product octane number and cetane number blank.

3. The introduction of international dielectric constant measurement principle, according to the Chinese market demand design and development, is a completely in line with the domestic market, and includes the advantages of the original domestic testing instruments.

4. Fast and accurate detection, simple operation, large screen Chinese display, EL backlight support, easy to use in dim light environment, host panel Chinese menu operation.

5. Germany imported original instrument shell, durable, and small and easy to carry, the chip and core components are imported, increase the sensitivity and service life of the instrument, the circuit board can be guaranteed for three years, the company promises that any non-human quality problems within three years, free replacement.

Sensor alloy metal fully sealed manufacturing, packing box has high strength, high impact resistance, absolutely sealed waterproof, moistureproof, dustproof, with square sponge inside.

6. The upper and lower limits of the mode can be set in advance, which can be automatically displayed beyond the range to facilitate user detection.

7. With automatic shutdown energy saving function, low power consumption design, 4 rechargeable batteries, can be recycled charging, battery reliability is stronger.

SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699 0

Measuring principle

Octane number meter is the principle of the octane number of gasoline and diesel cetane number of insulation permeability and electromagnetic induction measurement of charge characteristics.

The results are determined by measuring the dielectric properties of the oil product against a known data model that is stored in memory.

The induction device is very precise and can measure small changes in dielectric parameters.

Thus, the octane number and cetane number of petroleum products can be detected.



Technical parameters

● Measurement items: vehicle gasoline and diesel oil

● Octane number measurement according to: ASTM D2699-86, ASTM D2700-86.

● Cetane number of diesel oil is measured according to ASTM D4737-03, ASTM D613, EN ISO 5165.

● Operating range: temperature -10℃~+40℃, relative humidity 30%~81%R.H., atmospheric pressure 64~ 106KPa

specification

S/N Parameters to describe Numerical
1 Octane number measurement range (ON) ON as a unit of measurement (can be adjusted according to customer requirements) 40-120
2 Allowable measurement error of octane meter, per unit (maximum) ±0.5(Contrast that with the desktop standard method)
3 The range within which an octane meter can be measured, per unit (maximum) ±0.2
4 Cetane number measurement range (CN), in CN units (can be adjusted according to customer requirements) 20-100
5 Allowable measurement error of cetane number meter, CN (Max) ±1(Contrast that with the desktop standard method)
6

The floating range of the results of a cetane number meter, in CN units (maximum)

Measuring time (seconds)

 ±0.5
7 Measuring time (seconds) <20
8 The critical value of low battery voltage V 2.5
9 Host machine, mm(length × width × height) 224x106x40
10 Sensor, mm 60х100
11 Weight, Kg(maximum) 5
12 Duration of service (in hours) 15
13 Output way LCD display, print out
14 Current consumption 30ma

SH131 New Hand-Hold Gasoline Octane Number Cetane Number Tester ASTM D2699 1

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Sample cup 1 piece
3 Power cord 1 piece
4 Instruction 1 copy
5 Packing list 1 copy
6 Certificate warranty card 1 copy

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
