2500W Lab Test InstrumentsAutomatic Rotating Oxygen Bomb Instrument (Metal Bath) ASTM D2272

Automatic Rotating Oxygen Bomb Instrument (Metal Bath) standard ASTMD2272-2009

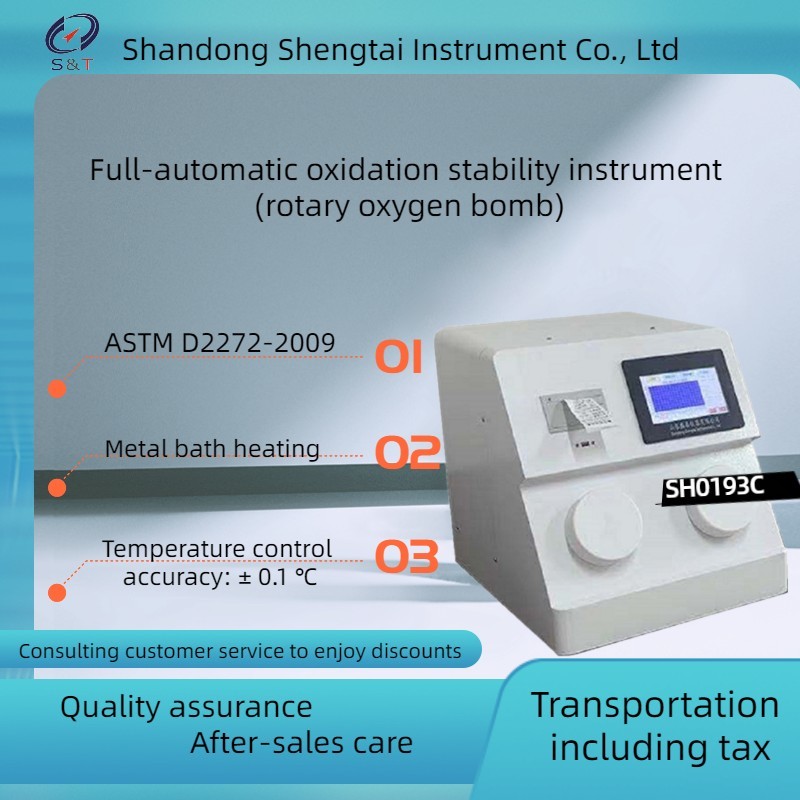

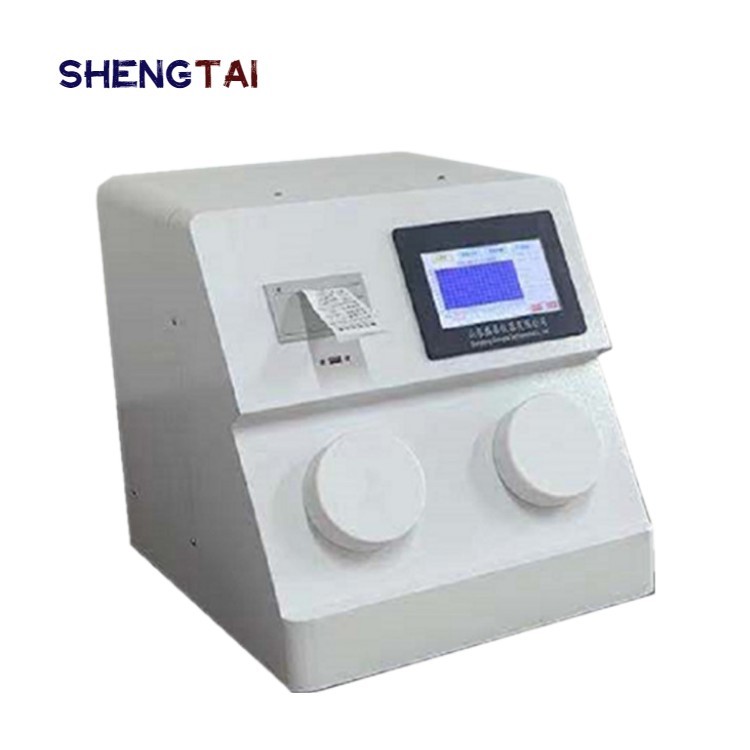

SH0193C Automatic Rotating Oxygen Bomb Instrument (Metal Bath)

SH0193C automatic rotary oxygen bomb tester is designed and manufactured according to the national standard ASTMD2272-2009 "Determination of Lubricating Oil Oxidation Stability" metal bath standard. It is suitable for evaluating the oxidation stability of new and used steam turbine oils with the same composition (base oil and additives). It can also be used to evaluate new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol as a quick assessment method for its oxidation stability. The test results are used to test the new mineral insulating oil containing 2,6-di-tert-butyl-p-cresol or 2,6-di-tert-butyl phenol or both, and the performance of each batch of oil can be continuously controlled.
Performance characteristics
l Used in new oil, in-use oil, steam turbine oil, lubricating oil, insulating oil and automobile gasoline engine oil, etc.
2. The metal measuring cell reduces the unpleasant smell emitted by the medium oil during the test, and eliminates the danger that may occur due to the long test time.
3. It can automatically perform pressure detection, data recording, oxidation time calculation on the tested oil sample, and can automatically end the test.
4. The metal bath is heated without liquid medium.
5. Simple ventilation, no need to be placed in a fume hood, exhaust gas and odor can be simply discharged through a plastic tube.
6. Can control the operation of 2 groups of tests at the same time or separately
7. Sample temperature sensor assembly: the temperature of the sample can be measured during the test
8. Instrument display: 7-inch color touch screen, beautiful interface, simple operation
9. High degree of automation: automatic constant temperature, automatic oxygen filling, automatic judgment of leakage, automatic recording of test data and real-time display of curves, automatic judgment of test inflection point, cut off heating after automatic test.
10. Micro printer: panel type thermal.
11. U disk export function, can export data to computer to save.
Technical Parameters:
1. Power supply: AC220V ± 10%.
2. Heating tube power: 2500W.
3. Range of pressure sensor: 0 ～ 1.6MPa, accuracy: ± 2 ‰.
4. Temperature control range: temperature control range: room temperature ~ 200.0 ℃
5. The temperature control point can be set: 140.0 ℃, 150.0 ℃.
6. Temperature control accuracy: ± 0.1 ℃.
7. Rotating speed of rotating mechanism: 100 ± 5r / min.
8. The angle between the oxygen bomb and the horizontal plane: 30 °.
9. Instrument size: 600mm * 400mm * 400mm (length, width and height)
10. Weight: 30kg

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
