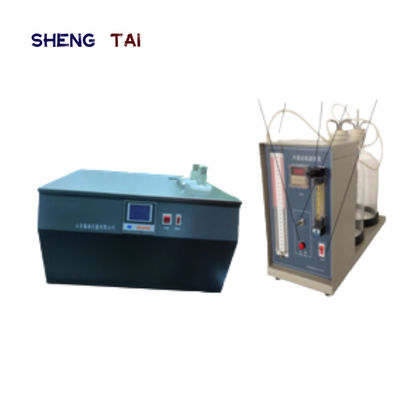

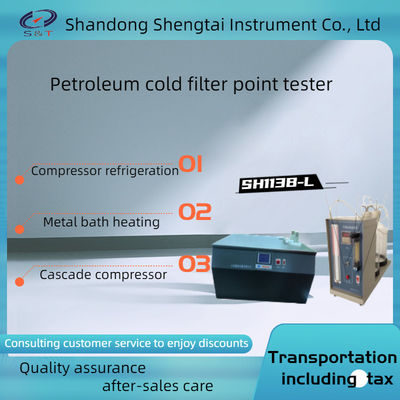

SH113B-L Petroleum Cold Filtration Point Tester with Single suction filter metal bath

SH113B-L Petroleum Cold Filtration Point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard SH/T0248, and is suitable for measuring the cold filtration point of petroleum products using the methods specified in the above standards.

Cold filtration point refers to the highest temperature (i.e., the lowest ambient temperature used at the flow point) when oil passes through the filter at less than 20 ml per minute under specified conditions

Main technical specifications, parameters and performance characteristics:

Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

The output mode is small LCD display, with good temperature control stability.

The main machine is heated in a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly.

4. Imported cascade compressor

5. Working power supply: AC220V ± 10%; 50Hz.

6. Temperature control range: room temperature~- 70 ℃

Temperature control accuracy: ± 0.5 ℃

8. Refrigeration system: New refrigeration compressor (dual compressor).

9. Ambient temperature: ≤ 30 ℃.

10. Relative humidity: ≤ 85%.

11. Power consumption: no more than 1500W

12. Package size: 890 * 530 * 480mm

13. Weight: 75kg

Details of petroleum product cold filter point tester

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
