PID Control Lab Test Instruments Grease Leakage Tester SH/T0326 ASTM D1263

SY0326 Grease leakage tester Applicable standard: SH/T0326 ASTM D1263

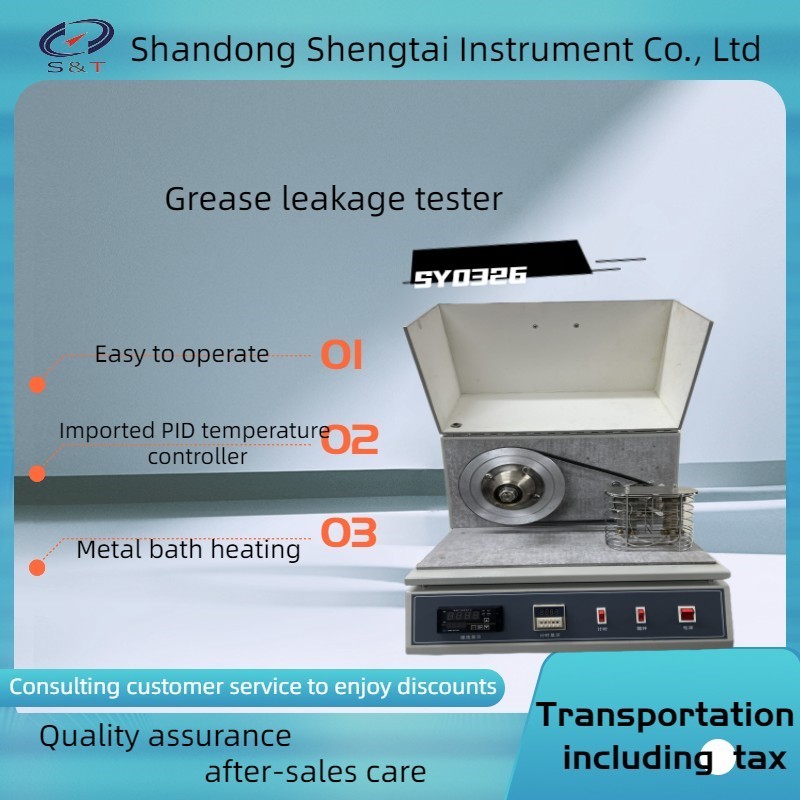

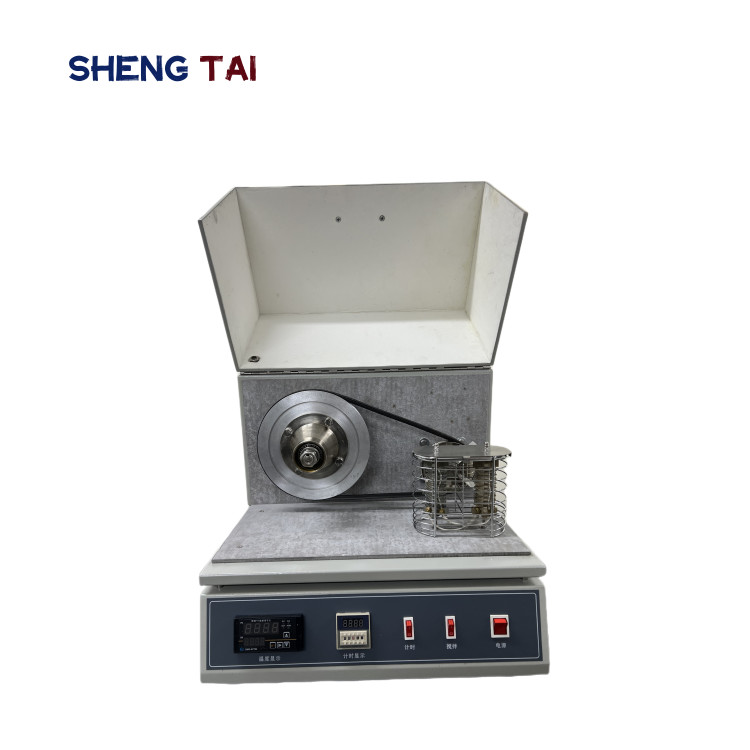

SY0326 Grease leakage tester

SY0326 Grease leakage tester is in strict accordance with the SH/T0326 standard design and manufacture, the instrument into the sample after modification of the front wheel hub and shaft assembly, so that the hub and shaft under the specified conditions a total of 360±5min operation.

Determine the leakage of grease or oil, and observe the bearing surface condition at the end of the sample.

The instrument is suitable for the determination of the leakage of automobile wheel bearing grease and can be used to distinguish the products with obviously different leakage characteristics.

Performance characteristics

1, The instrument adopts integrated design, meaningful appearance, easy to operate;

2. Unique heat pipe rod insert casting body box-type heating system makes the heating speed is fast and the temperature control accuracy is high;

3, Imported motor rotation, low noise, stable speed, good mechanical properties and small wear;

4, the hub and shaft assembly structure is compact, small end clearance, bearings are imported parts, reliability and wear resistance is guaranteed;

Microcomputer temperature controller, digital display, precision ±0.5℃ PT100 sensor;

6, digital display timer, record the test time;

7. There is a thermometer hole on the shaft assembly;

8, standard motor 660r/min±30r/min;

9, two groups of heating power combined 660W;

• The body is surrounded by thermal insulation cotton.

Technical parameters

1. Applicable standard: SH/T0326 ASTM D1263

2, heating method: metal bath heating

3, Temperature control mode: imported PID temperature controller

4, Temperature control range: normal temperature ~ 150℃ + 0.1℃

5. Timing method: digital display four-digit timer

6, timing range: 0.01s ~ 99H99m

7, motor speed: 660r/min±30r/min

8, the whole machine power: 1KW

9, working power supply: AC220V/50HZ

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
