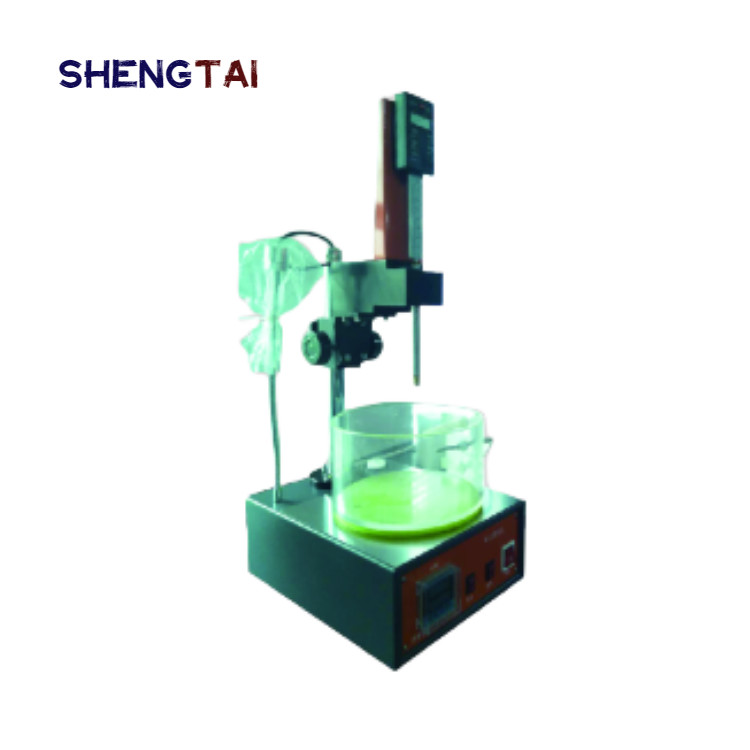

ASTM D217 needle Penetrometer with constant temperature SD-2801C

Bitumen and grease (or petroleum grease) penetration test

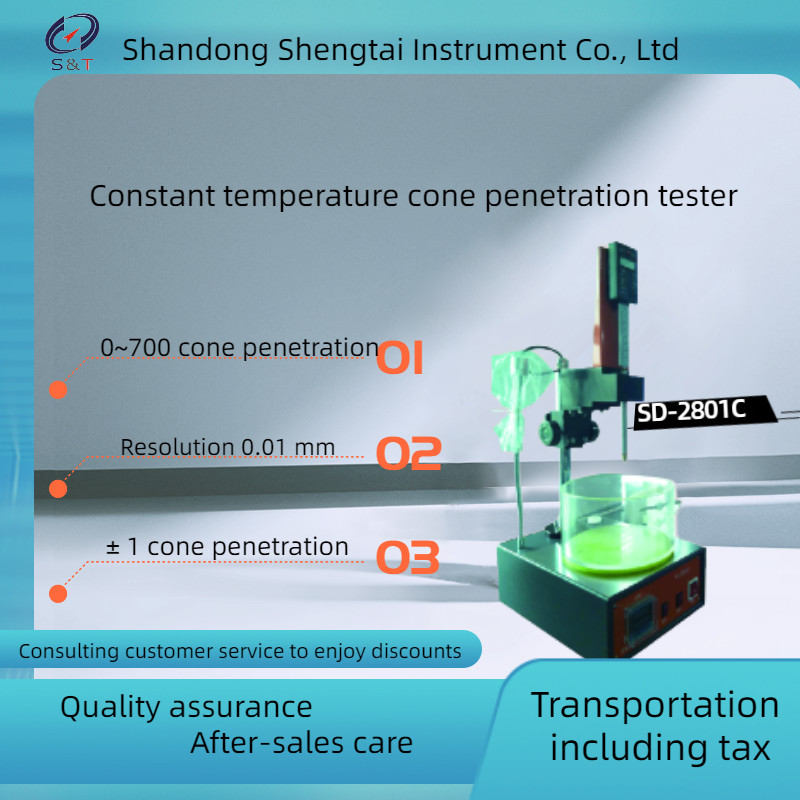

SD-2801C Constant temperature needle penetration tester

SD2801C constant temperature needle penetration meter is designed and manufactured according to the technical requirements and related regulations of GB/T269 "Determination of the cone penetration of grease and petroleum grease" and GB/T4509 standard of the People's Republic of China. It is mainly used for testing the needle penetration of asphalt and lubricating grease (or petroleum grease).
The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

I. Main technical features
1, the use of digital display to display the taper value, intuitive and eye-grabbing.
2, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
3, Equipped with heating constant temperature bath, water bath temperature automatic control, high cost performance instrument.

II. Main technical parameters and indicators
1, measuring range: 0 ~ 600 taper degree (digital display table 0-60mm);
2, cone entry time control device:;
Time can be set according to their own needs, the time error is less than ±0.1 seconds;
3, the resolution of 0.01㎜;
4. Needle insertion accuracy: ±1 cone insertion degree;
5, temperature range: 10 ~ 50 degrees (with semiconductor cold circulation device, can be heated or refrigerated);
6, temperature control accuracy: 25±0.1℃;
7, temperature control mode: high precision digital temperature controller, can be constant temperature to the standard requirements of 25 degrees;
8, standard cone: 102.5±0.05g, in line with the specifications of the national standard GB/T269;
9, lifting bracket: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;
10, others: equipped with cold light source, easy to use and operation.
11, Dimensions: 34×28×56 41×33×30
12, weight: 21kg

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China
