ST203C Automatic Drug Coagulation Point Instrument Polyethylene Glycol Acetic Acid Coagulation Point Detection

Automatic drug freezing point tester United States Pharmacopoeia 40 version.

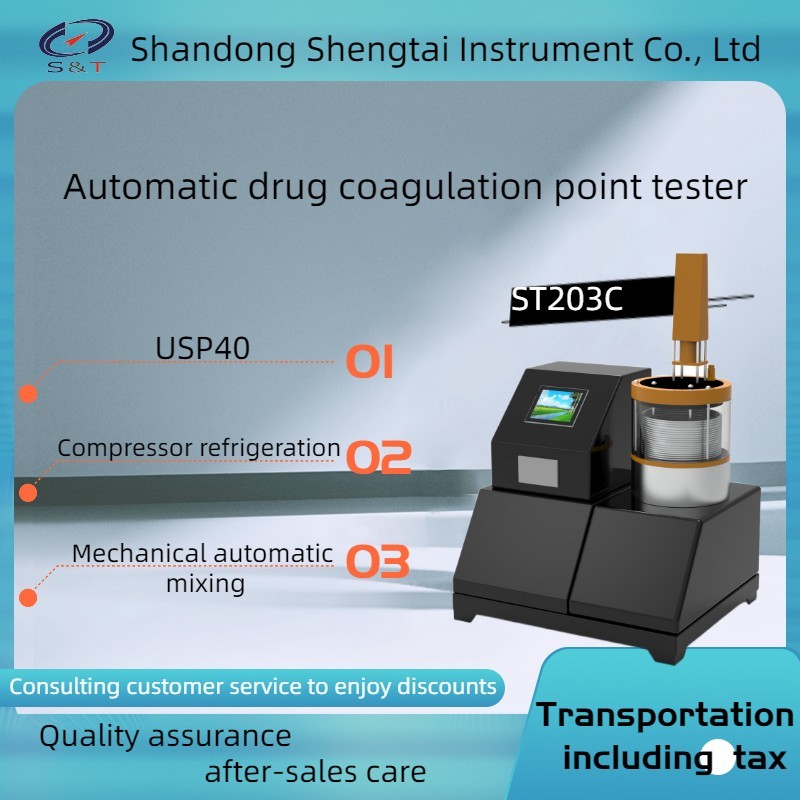

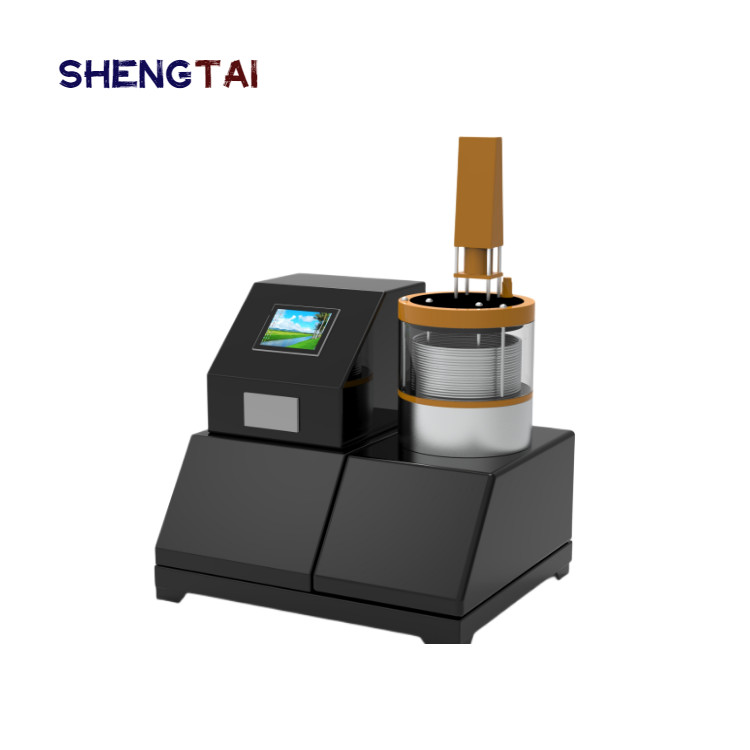

ST203C Automatic drug freezing point tester

ST203C Automatic drug freezing point meter is based on USP40 (United States Pharmacopoeia 40 version) USP 40 651 freezing point determination. It is suitable for determining the freezing point of liquid medicine. It is determined that when the drug condenses from a liquid to a solid, it stays at a constant temperature in a short time. Some medicines have a certain freezing point and purity change, and the freezing point also changes accordingly. Determining the freezing point can distinguish or check the purity of the drug. For example: polyethylene glycol, glacial acetic acid, phenol, magnesium stearate, bisphenol A and so on.

Instrument features:

1. Using embedded system design, automatic detection and automatic printing during the whole test

2. The test results can be exported via U disk;

3. 7-inch color touch screen; test results can be stored; historical data can be viewed;

4. The result is printed on the instrument, and the machine automatically stirs.

5. With date password setting function.

Technical Parameters

1. Power supply: AC220V±10%; 50Hz.

2. Working cold bath: Double-layer vacuum glass bath.

3. Temperature control of cold bath:-10℃～ +170℃

4. Temperature control accuracy: ±0.1℃.

5. Bathing liquid stirring: The stirring motor automatically stirs, the power is 6W, 1200r/min.

6. Refrigeration system: a new type of refrigeration compressor.

7. Sample stirring: Synchronous decelerating motor, 60 times per minute.

8. Data management: Limis system can be connected

Account management: According to the password setting, account hierarchical management, you can set the master account and sub-account.

9. Data memory: Microcomputer instrument memory can be expanded to 16G.

10. Refrigeration method: compressor refrigeration

11. Cooling method: air cooling

12. Printing: 20 columns of Chinese character dot matrix printing

13. Display: 128×64 Chinese characters display

14. Data extension: laser printer interface, can link HP1108 laser printer (optional)

15. Storage method: experimental results can store 199 sets of historical data for easy query;

16. Result output: at the same time can be equipped with U disk output function, output to the PC terminal for long-term storage

17. Output format: The output format of the result U disk is CSV or excel.

18. Data protection: with date password setting function.

19. Standard printing: standard micro printer, automatic measurement, automatic thermal printing

20. Remote upgrade: With TCP network transmission function, software can be remotely upgraded later

21. Ambient temperature: ≤30℃.

22. Relative humidity: ≤85%.

23. Power consumption of the whole machine: not more than 2000W.
