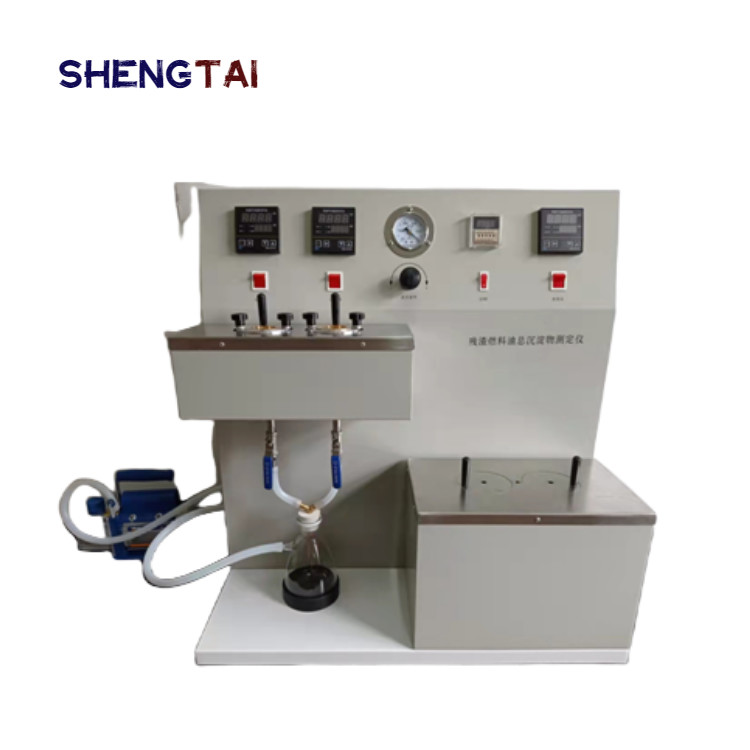

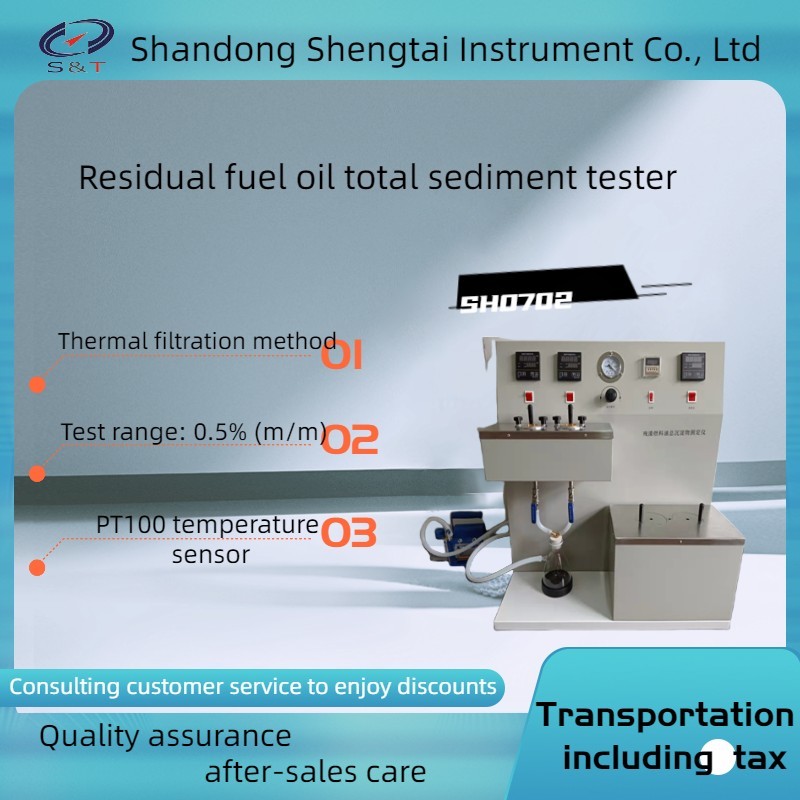

SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)

The residual fuel oil total sediment tester is designed and manufactured in accordance with SH/T0701 and SH/T0702 Residual fuel oil total sediment determination method (aging method, thermal filtration method). This method is applicable to the determination of total sediment in residual fuel oil with viscosity less than 55mm2/s at 100 ℃ and distillate fuel oil mixed with residual components.

This instrument is applicable to the total sediment in residual fuel oil and distillate fuel oil containing residual components.

Product features

1. Equipped with a special aging bath;

2. Standard filter elements with heating and cooling coils;

3. Glass fiber filter paper aperture 0.0016mm diameter 47mm;

4. Stainless steel ball valve switches heat source and cold source;

5. Digital display time relay controls working time;

6. Microcomputer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;

Technical parameter

1. Test sample: 25g

2. Waste flask capacity: 500ml

3. Test range: 0.5% (m/m)

4. Test bit: 2 units

5. Filter paper: aperture 0.0016mm diameter 47mm

6. Vacuum pressure: 40kpa

7. Applicable standard: SH/T0701 SH/T0702

8. Working power supply: AC220V 50HZ

9. Overall power: 1000W

10. Instrument size: 570 * 600 * 650mm; Net weight: 36KG

Packing List

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
