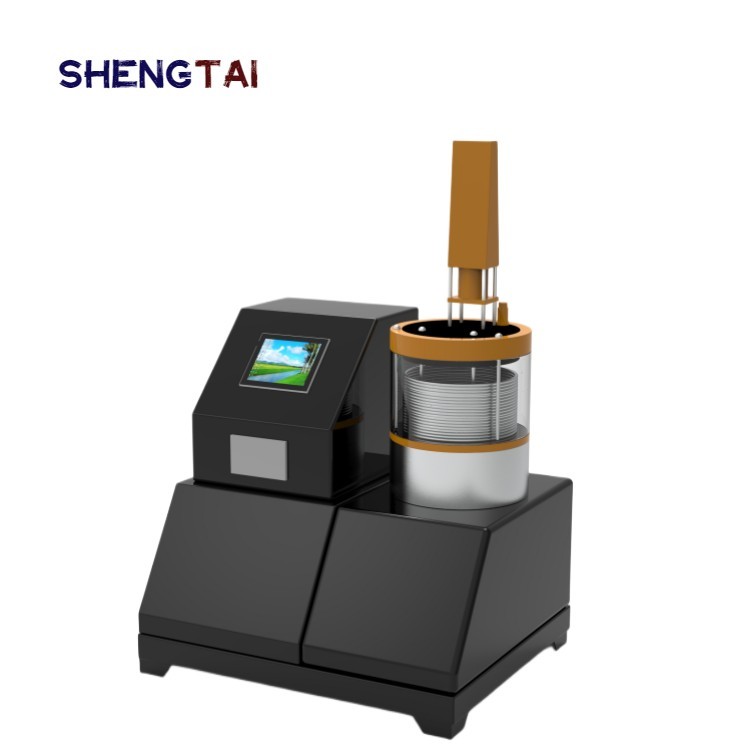

ST203C Drug Solidification Point Tester USP40 (United States Pharmacopoeia 40 Version) USP40 651

Automatic drug solidification point tester USP40 (United States Pharmacopoeia 40 version) USP40 651

The ST203C automatic drug freezing point meter is determined according to the freezing point of USP40 (United States Pharmacopoia 40 version) USP40 651.
It is suitable for determining the freezing point of liquid medicine.
Determine the temperature at which a drug remains constant for a short period of time as it condenses from a liquid to a solid.
Some drugs have certain solidification point, purity change, the solidification point will also change.
Determining the condensation point can distinguish or check the purity of the drug.
For example: polyethylene glycol glacial acetate phenol stearate magnesium bisphenol A and so on.
Instrument features:
1, the embedded system design, the whole process of automatic test detection, automatic printing
2, the test results can be exported through the U disk;
3. 7-inch color touch screen;
The test results can be stored;
You can view historical data;
4, the instrument printed results, mechanical automatic mixing.
5, with date password setting function.
Technical parameters
1, working power supply: AC220V±10%;
50 hz.
2, working cold tank: double vacuum glass bath.
3, cold tank temperature control: -10 ℃ ~ +170℃
4, temperature control accuracy: ±0.1℃.
5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.
6, Refrigeration system: new refrigeration compressor.
7, sample mixing: synchronous reducer motor, 60 times/min.
8. Data management: can be connected to the LIMIS system
Account management: according to the password to set up a hierarchical account management, can set the total account and sub-account.
9. Data memory: the memory of the microcomputer instrument can be expanded to 16G.
10. Refrigeration method: compressor refrigeration
11. Cooling method: air cooling
12. Printing: dot matrix printing of 20 Chinese characters
13. Display: 128×64 Chinese characters display
14. Data extension: laser printer interface, can be linked to HP1108 laser printer (optional)
15. Storage method: 199 sets of historical data can be stored for easy query;
16 results output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
17. Output format: the output format of the result USB flash disk is CSV or EXCEL.
18 data protection: with date password setting function.
19 standard printing: standard micro printer automatic measurement automatic thermal printing
20. Remote upgrade: with TCP network transmission function, software can be upgraded remotely in the later stage
21. Ambient temperature: ≤30℃.
22. Relative humidity: ≤85%.
23. Power consumption: no more than 2000W.
