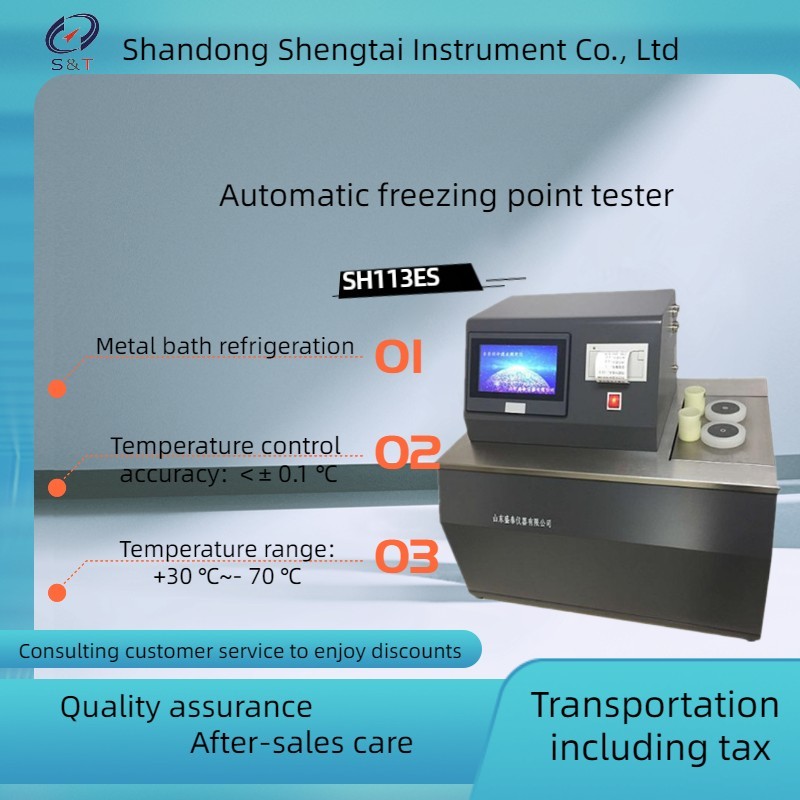

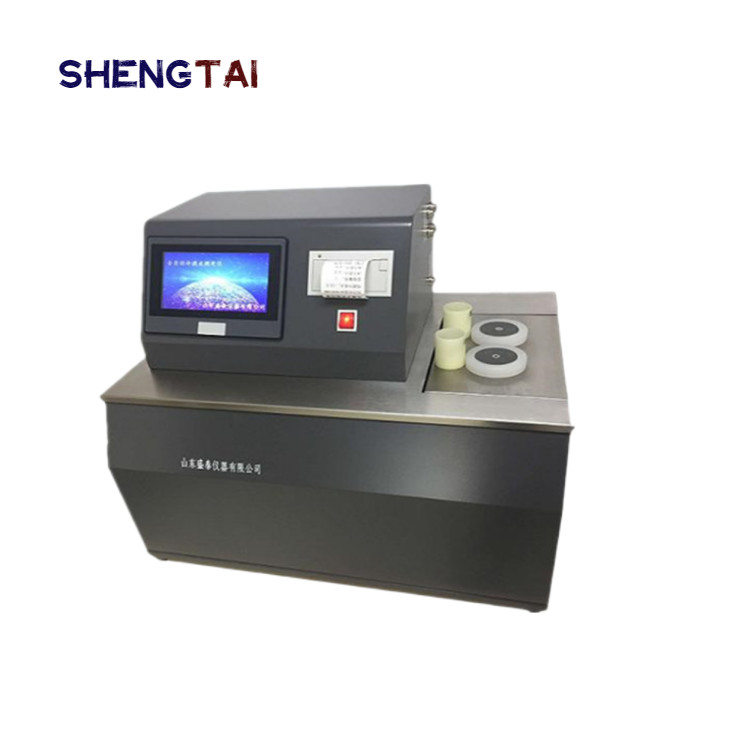

SH113ES Automatic Condensation Point Tester with Cascade compressor refrigeration

The SH113ES Automatic Condensation Point Tester is based on the national standard GB/T510 "Determination of Condensation Point of Petroleum Products". It adopts contemporary advanced technology, integrating mechanical, optical, electronic, and computer technology, and can automatically complete the measurement of the condensation point of petroleum products. This instrument uses photoelectric detection technology, glass tube automatic tilting method, and imported compressor refrigeration system to ensure that the required cooling depth is achieved.

The condensation point is the highest temperature of an oil product under specified test conditions when the test oil is loaded into a test tube and cooled to a level that does not move, expressed in degrees Celsius.

Technical parameters and features:

1. Standard: GB/T510

Human machine interface: 7-inch color LCD touch screen;

3. Refrigeration method: fully enclosed high-efficiency refrigeration compressor.

4. Detection method: Imported photoelectric switch detection

5. After upgrading, historical data can be stored for easy query; At the same time, it can be equipped with a U disk output function.

6. Standard micro printer Automatic measurement Automatic printing

7. If there is no personnel to operate after the test, set the automatic shutdown time of the refrigerator within 0-50min to avoid frequent startup of the compressor and prolong the service life of the instrument,

9. Standard micro printer Automatic measurement Automatic thermal printing

10. Number of test holes: double holes

11. Temperature range:+30 ℃~- 70 ℃

12. Temperature control accuracy: ＜ ± 0.1 ℃

13. Sample size: Place at the scale line of the test tube

14. Refrigeration medium: metal bath refrigeration

15. Printer: small thermal printer

16. Storage method: Experimental results can be stored in 199 sets of historical data for easy query;

17. Result output: At the same time, it can be equipped with a U-disk output function, which can be output to the PC terminal for long-term storage

18. Output Format: The output format of the result USB flash disk is CSV or Excel.

19. Standard printing: Standard micro printer Automatic measurement Automatic thermal printing

20. Data memory: The memory of microcomputer instruments can be expanded to 16G.

★ 21. Remote upgrade: With TCP network transmission function, remote software upgrade can be performed later (optional)

★ 22. Data management: connectable to the LIMS system (optional)

23. Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

Package size: 690 * 520 * 660 Package weight: 80kg

Packing list of fully automatic Condensation point instrument
