Ultraviolet Fluorescence Sulfur Meter Conforms To ASTM D5453 SH/T 0689-2000

Ultraviolet fluorescence sulfur meter conforms to ASTM D5453, SH/T 0689-2000

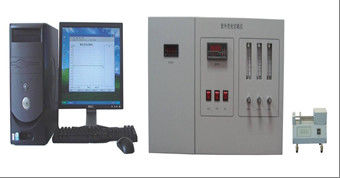

The principle of SH0689 Ultraviolet fluorescence sulfur meter was determined by ultraviolet fluorescence method.
It conforms to ASTM D5453, SH/T 0689-2000 and is suitable for the determination of total sulfur content in crude oil, distillate oil, liquefied petroleum gas, plastics, petrochemical products and food.
After the sample was introduced into the high-temperature cracking furnace, the sample underwent pyrolysis oxidation reaction.
At about 1000℃, the sample was completely gasified and oxidized, and the sulfide was quantitatively converted to sulfur dioxide.
The reaction gas is carried by carrier gas, and the water in it is removed by the membrane dryer and enters the reaction chamber.
Sulfur dioxide is exposed to certain wavelengths of ultraviolet light, and its absorption turns some electrons into high-energy orbits.
Once the electrons are returned to their original orbits, the excess energy is released in the form of light, which is detected and received by a photomultiplier tube at a specific wavelength. The emitted fluorescence is completely specific to the sulfur and is proportional to the sulfur content of the original sample.
After amplification by microcurrent amplifier and data processing by computer, it can be converted into an electrical signal proportional to the light intensity, and the sulfur content of the corresponding sample can be calculated by measuring its size.
Scope of application: it is suitable for the determination of total sulfur content in gasoline, diesel oil, lubricating oil, crude oil, distillate oil, liquefied petroleum gas, gas, natural gas, plastics, petrochemical products, food, coal, etc.

Compliance with ASTM D5453, SH/T 0689-2000, etc.
(meet the testing standards of national, national, and national no. 6 gasoline and diesel)

Main features
1, computer control operation, man-machine dialogue can be achieved, data, peak shape can be automatically stored and printed.
2. The operating software can be connected with LIMIS system to realize automatic data transmission.
3. The new type of quartz cracking tube is adopted in the instrument, which can increase the sampling quantity and reduce the measurement error.
4. Automatic switch of cooling fan saves the trouble of waiting for shutdown of finished samples and saves time and effort.
5. The darkroom system adopts foreign zui new technology, and the key components adopt imported detection elements, which improves the detection accuracy of the instrument
6. The imported film dryer is used to absorb water, which saves the trouble of frequently replacing magnesium perchlorate and reduces the problem of air leakage.

7, the use of computer control temperature, improve the temperature control precision of the instrument, and not easy to overheat.
8, the use of air cooling instead of water cooling, save water resources.
9. The existing calibration curve can be adjusted and calibrated with standard samples for sample analysis.

Technical parameters
Determination range: 0.2 ~ 10000mg/L (PPM)
Detection limit: 1mg/L (PPM) (sulfur element)
Repeatability error: 1.0mg/L < X≤10mg/L, Cv≤±10%
10 mg/L < X Cv plus or minus 5% or less
Air source requirements: high purity oxygen: more than 99.98%;
High purity argon: above 99.98%
Temperature control range: room temperature ~ 1200℃
Temperature control precision: ±1℃
Working power supply: AC220V±10% 50HZ
Environmental requirements: temperature 15 ~ 40℃;
Humidity of 85% or less


Approximate conversion formula
1% = 10000 PPM
1 PPM = 1 mg/L
