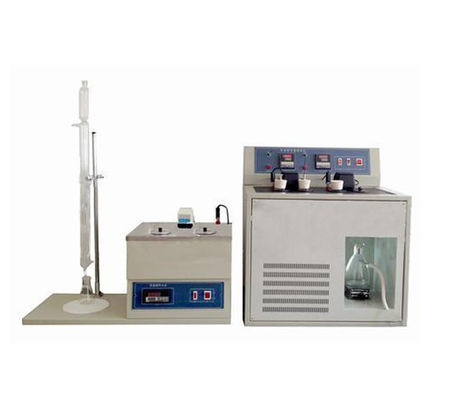

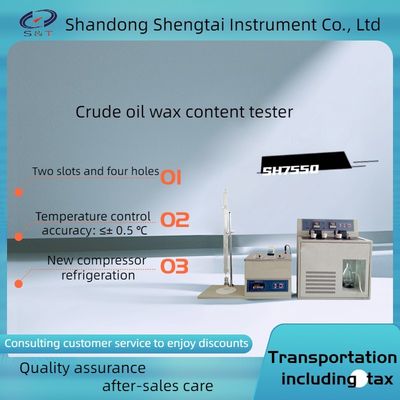

Crude oil wax content tester with two slots and four holes stainless steel bath SH7550

Crude oil wax content tester China industry standard SY/T-7550

SH7550 Crude oil wax content tester is designed and manufactured in accordance with the requirements of the People's Republic of China industry standard SY/T-7550 "Wax, colloid, asphaltene in crude oil content determination method". It is suitable for the determination of wax content in crude oil products with water content not more than 0.5%(mass fraction).

Performance characteristics:
1: adsorption device: stainless steel bath, digital temperature controller automatic constant temperature. Temperature control point can be arbitrarily adjusted water bath built-in circulation pump, connected with the adsorption device, can keep the temperature control within the required range, water bath cover has two heating inlet, can heat the glass container.
2: dewaxing and filtering device: two slots four holes stainless steel bath, digital display temperature controller automatic constant temperature. Temperature control point can be adjusted arbitrarily, and with constant temperature bath stirring device, improve temperature control precision.
3: temperature range of two cold bath: room temperature ~ -40℃ Accuracy: ±0.5℃, temperature control point can be arbitrarily adjusted, do not affect each other.
Left cold bath constant temperature point: -20℃; Accuracy: ±0.5℃; There are two refrigeration holes for sample refrigeration,
Right cold bath temperature point: -25℃; Precision: ±0.5℃, with a double motor stirring device for stirring samples, the filtration device is built in the bath, can make the sample in the filtration process to keep the low temperature unchanged, the filter bottle with suction pump convenient and suction filtration.

Technical parameters
1, working power supply: AC220V±10%, 50Hz
2, water bath heating power: 2.0KW
3, water bath temperature control range: room temperature ~ 90℃
4, work cold tank: two groove four holes, two isothermal groove
5, cold bath temperature control range: -40 ℃ ~ room temperature
6, refrigeration system: new compressor refrigeration
7, temperature control accuracy: ≤±0.5℃
8, temperature display: LED digital display
9, ambient temperature: ≤35℃
10, relative humidity: ≤85%

The host 530 * 680 * 580 mm 45 kg
Accessories 450mm*390mm*490mm Weight: 25kg

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
