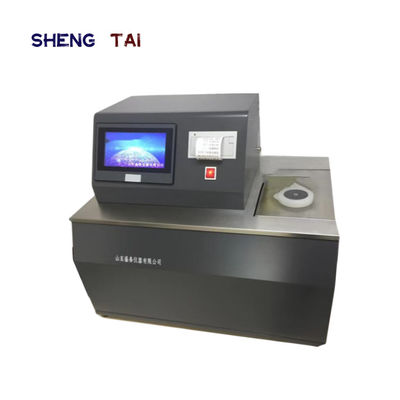

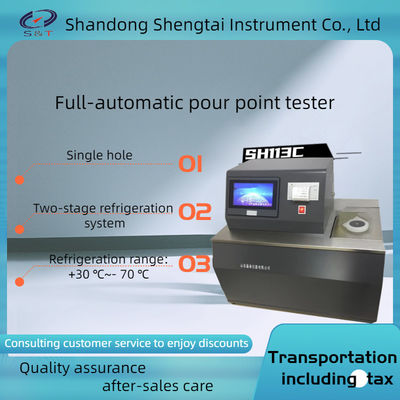

SH113C fully automatic pour point testerGB/T3535 National Standard Requirements ASTM D97 single hole

The SH113C fully automatic pour point tester meets the requirements of GB/T3535 national standard. ASTM D97 adopts a main control component composed of multiple microcontrollers, which automatically cools, maintains temperature, detects, and prints out the results automatically. Adopting a two-stage refrigeration system, the refrigeration range is from+30 ℃ to -70 ℃, suitable for detecting samples with pour/pour points higher than -35 ℃. The use of imported compressors ensures long-term stability and reliability, and is not easily damaged. Adopting a dry trap shaped cold bath box, it has small hysteresis, fast cooling, and no need for other cooling media, making it easy to use and maintain. Adopting high-performance infrared detection technology, with high detection sensitivity and strong reliability.

Pour point refers to the minimum temperature at which a cooled sample of oil can flow under specified test conditions; Expressed in ℃.

ASTM D97 pour point tester

ASTM D97 automatic pour point tester for gear oil hydraulic oil turbine oil

Automatic Oil Pour Point Measurement Meter/ ASTM D97 Pour Point Tester

Automatic ASTM D97 Pour Point Tester 

Automatic Petroleum Products Pour Point  Tester

Lubricant Oil Lab Testers Pour Point Testing Equipment By ASTM D97

-70C low temperature ASTM D97 pour point tester

Technical parameters and characteristics:

1. Compliance with standard: GB/T3535

2. Human machine interface: 7-inch color LCD touch screen;

3. Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

4. Detection method: Imported photoelectric switch detection

5. After upgrading, historical data can be stored for easy query; It can also be equipped with a USB flash drive output function.

6. Standard micro printer for automatic measurement and printing

7. If no personnel operate after the test is completed, set the automatic shutdown time of the refrigeration machine within 0-50min to avoid frequent opening of the compressor, and extend the service life of the instrument,

9. Standard micro printer for automatic measurement and thermal printing

10. Number of test holes: single hole

11. Temperature range:+30 ℃~-70 ℃

12. Temperature control accuracy: ＜± 0.1 ℃

13. Sample size: Place at the scale line of the test tube

14. Refrigerating medium: metal bath refrigeration

15. Printer: Small thermal printer

16. Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

17. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

18. Output Format: The output format of the result USB drive is CSV or Excel.

19. Standard printing: Standard micro printer for automatic measurement and thermal printing

20. Data memory: The memory of microcomputer instruments can be expanded to 16GB.

★ 21. Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

★ 22. Data management: can be connected to the LIMIS system (optional)

24. Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

Packaging size: 690 * 520 * 660 mm Packaging weight: 80kg

automatic pour point tester for turbine oil standard ASTM D97 Petroleum oil pour point tester

Packing list of automatic pour point meter
