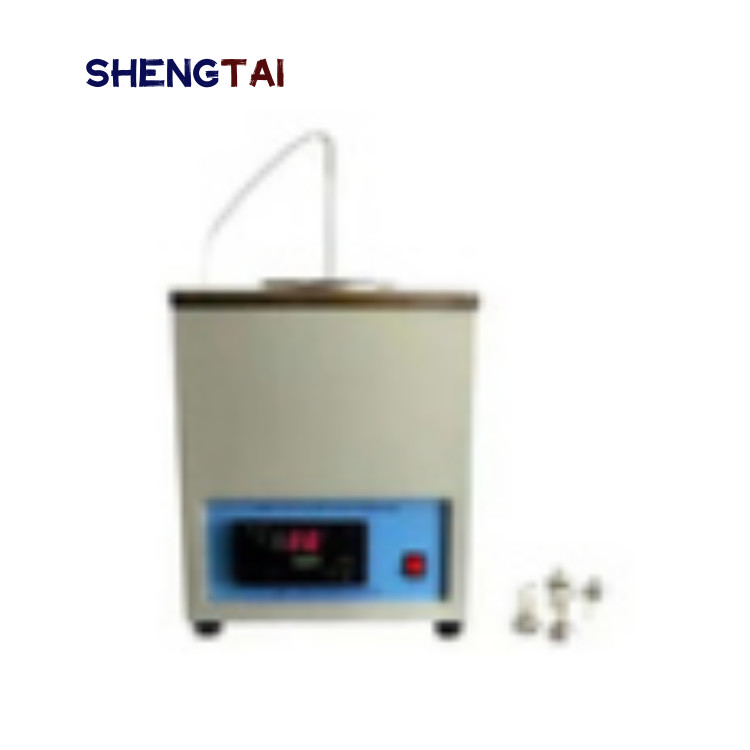

Digital temperature control electric furnace carbon residue tester carbon residue tester SD-30011

  • Digital temperature control electric furnace carbon residue tester carbon residue tester SD-30011
  • Digital temperature control electric furnace carbon residue tester carbon residue tester SD-30011
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SD-30011
Minimum Order Quantity 1
Price FOB/CIF
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD-30011 Power Supply AC(220±10%)V, 50Hz
Heating Mode Electric Furnace Temp. Control Accuracy ±5ºC
Ambient Temperature Room Temperature~ 35ºC Maximum Power Consumption 2000W
Temp. Control Range (0~520)ºC
Highlight

Petroleum Kinematic Viscometer

,

Automatic Calculation Kinematic Viscometer

,

Kinematic Viscometer ASTM D445
Leave a Message
Product Description

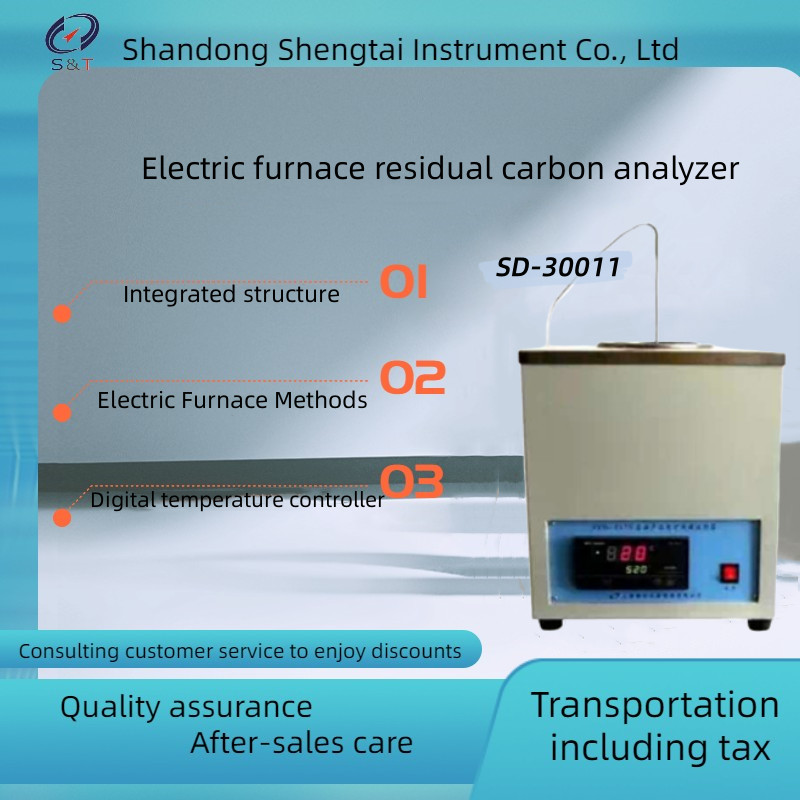

SD30011 Digital electric furnace carbon residue meter is designed and manufactured according to the requirements of the industry standard SH/TO170 "Carbon residue determination method (electric furnace method)" of the People's Republic of China. It is suitable for the determination of carbon residue of lubricating oil, heavy liquid fuel or other petroleum products according to the test method of SH/TO170 standard.


Carbon Residue Tester (Digital Temperature Controlled Electric Furnace Methods)

Carbon Residue Tester (Electric Furnace Methods)

Electric Furnace Carbon Residue Tester

Carbon Residue Apparatus for Testing The Carbon Residue of a Fue

Electric Furnace Method Carbon Residue Tester

SD30011 Electric Furnace Method Carbon Residue Tester

Digital temperature control electric furnace carbon residue tester carbon residue tester

SD30011 High Quality Carbon Residue Tester by Electric Furnace Method



I. Main technical features

1, the instrument adopts integrated structure design, heating furnace and controller constitute a complete whole, novel and beautiful.

2, Adopt digital temperature controller, with main heating and auxiliary heating functions, according to the need of auxiliary heating can be automatically controlled, but also manual control, easy to use.

3. The temperature of the heating furnace can reach 520℃, and the temperature control accuracy can reach ±5℃ in the full temperature control range, which meets the requirements of the test.

4, the instrument for the table structure, a furnace of four holes, can be placed at the same time four samples at the same time test, test efficiency is high.



II. Main technical parameters and indicators



Power supply AC(220±10%)V, 50Hz
Heating mode Electric furnace
Heating power two gears, main heating and auxiliary heating, 300W+600W+1000W;
Temp. Control range (0~520)ºC
Temp. Control accuracy ±5ºC
Test furnace One furnace with four holes
Ambient temperature Room temperature~ 35ºC
Relative humidity ≤85%
Maximum power consumption 2000W
Dimension 350mm×360mm×365mm
Weight 29kg



Packing List

S/N Name Quantity Unit Remarks
1 host 1 set
2 steel bath cap 4 piece
3 Porcelain crucible 4 piece
4 Crucible cover 4 piece
5 Crucible tongs 1 piece
6 power cord 1 piece
7 fuse tube 1 piece 10A
8 Operating instruction 1 copy
9 packing list 1 copy
10 Certificate of approval 1 copy

Digital temperature control electric furnace carbon residue tester carbon residue tester SD-30011 0

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
