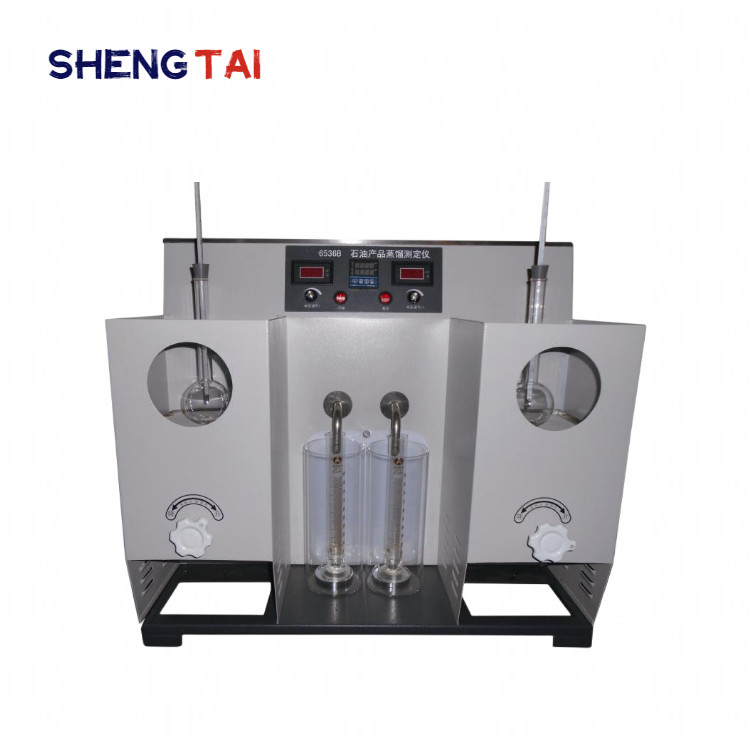

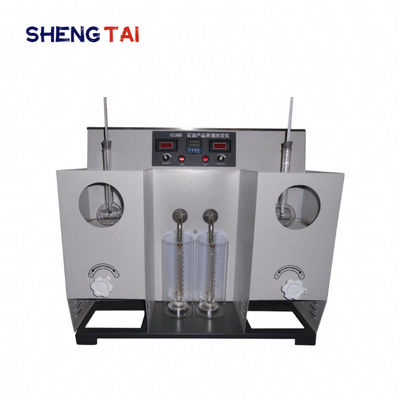

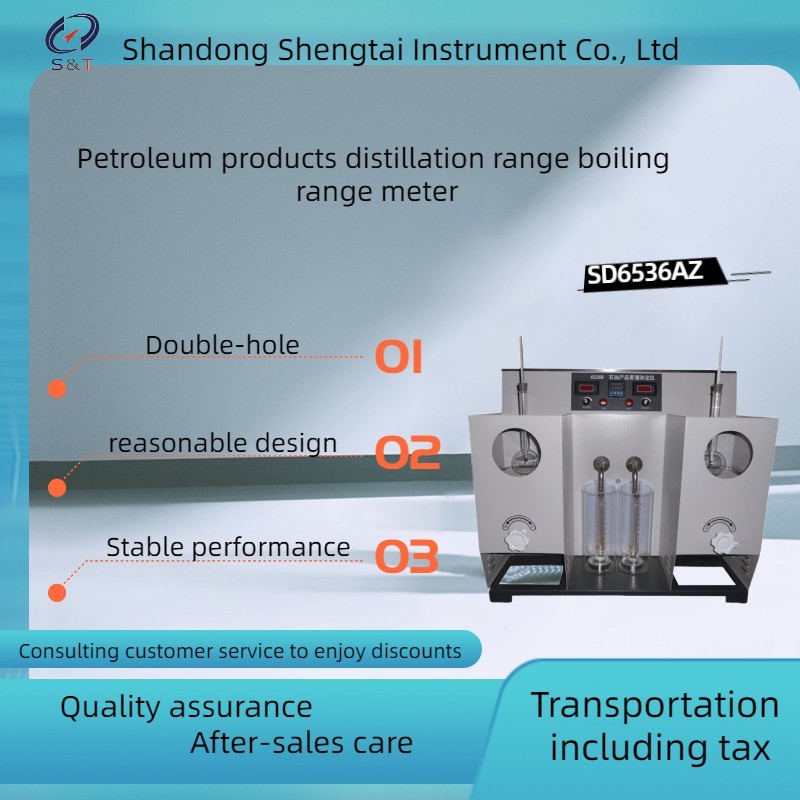

SD6536AZ petroleum product distillation apparatus (double holes) GB/T6536, ASTM D86

  • SD6536AZ petroleum product distillation apparatus (double holes) GB/T6536, ASTM D86
  • SD6536AZ petroleum product distillation apparatus (double holes) GB/T6536, ASTM D86
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SD6536AZ
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD6536AZ Power Supply AC220V±10%, 50Hz
Heating Power Of Electric Furnace 1000W×2 Measuring Cylinder Volume 100 ML, Indexing 1 ML
Temperature Control Accuracy ±0.5℃ Temperature Display Mode LED Digital Display.
Highlight

GB / T2423.17 Salt Spray Test Machine

,

CNS Salt Spray Test Machine

,

Salt Spray Lab Test Instruments
Leave a Message
Product Description

Purpose and scope of application

SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.

Main technical parameters and technical characteristics

(1) Main technical parameters

⑴ Power supply: AC220V±10%, 50Hz.

⑵ Heating power of electric furnace: 1000W×2.

⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.

The distillation flask: 125mL, in line with the requirements of GB/T6536.

⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.

The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38mm, Φ 50mm.

① Temperature control range: (0 ~ 80) ℃ arbitrary setting (with refrigeration).

② Temperature control accuracy: ±0.5℃.

③ Temperature display mode: LED digital display.

(8) Compressor circulation refrigeration device

Instrument size: 760 × 520 × 500mm

Instrument weight: 36kg

Item GD-6536A Distillation Tester
Test standard GB/T6536, ASTM D86
Suitable for gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products
Features Can test two samples simultaneity
Heating power of electric furnace 1000 W*2, heating power can be continuously adjusted
Volume of graduated flask 100 ml with scale division of 1ml
Distillation flask 125 ml
Thermometer -2~300°C, and -2~400°C
Temperature controlling range (0 ~ 80) ℃ arbitrary setting (with refrigeration).
Receiver compartment temperature 1 ~ 60°C
Temperature controlling accuracy ±0.5°C
Power supply AC 220V±10%, 50 Hz
Ambient temperature: ≤+35°C ≤+35°C
Relative humidity ≤85%
Total power consumption ≤2500 W

Packing list



S/N Name Quantity Unit Note
1 Host 1 set
2 Distilled flask (125 ml) 2 piece
3 Aquarium 2 piece
4 Silica gel plug 4 piece
5 Silicon carbide plate, aperture Φ 32mm, Φ 38mm, Φ 50mm 2 piece
6 Measuring cylinder (100ml) 2 piece
7 Test platform 2 piece
8 power cord 1 piece
9 Thermometer 2 piece
10 fuse tube 1 piece 10A
11 Operating instruction 1 copy
12 packing list 1 copy
13 Certificate of approval 1 copy

SD6536AZ petroleum product distillation apparatus (double holes) GB/T6536, ASTM D86 0SD6536AZ petroleum product distillation apparatus (double holes) GB/T6536, ASTM D86 1

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
