Automatic Crude Oil Wax Precipitation Point Tester Glass Transition Temperature

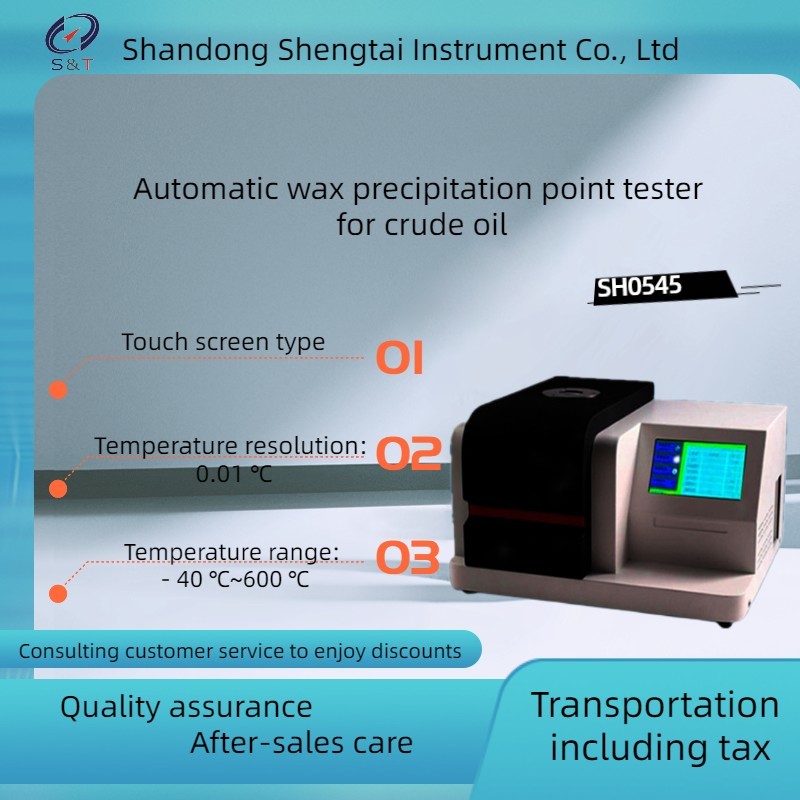

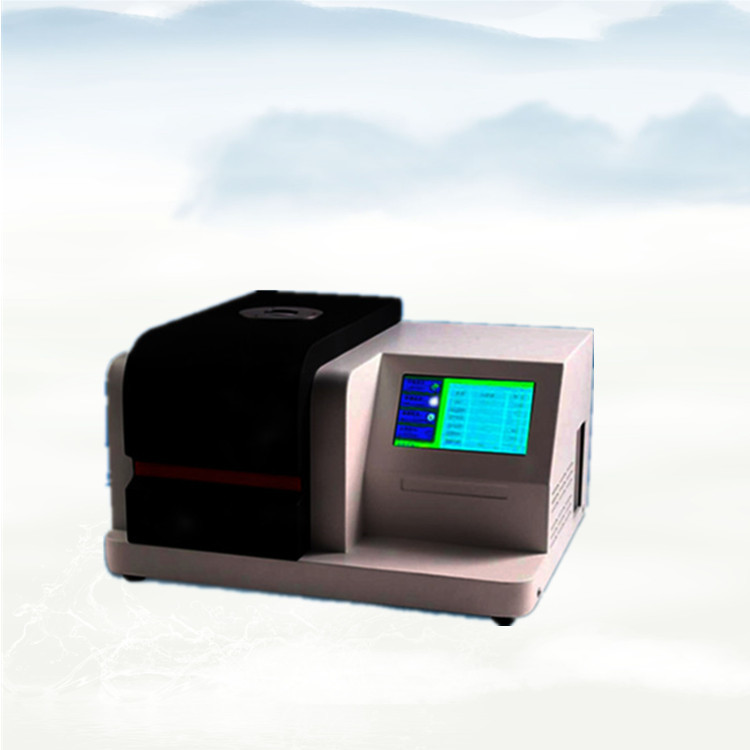

   SH0545 automatic crude oil wax precipitation point tester is a touch screen type tester, which can be used to test glass transition temperature, phase transition, melting and enthalpy value, product stability, curing, specific heat, oxidation induction period, etc.

Wax precipitation point

The temperature at which wax crystals begin to separate from the crude oil liquid system, that is, the corresponding initial temperature when the sample curve starts to deviate from the baseline and forms an exothermic peak, expressed in Tc.

Heat the crude oil sample to the temperature above the wax precipitation point, and then lower the temperature at a certain rate. Record the differential heat flow of the sample and the reference at each temperature point. Draw the wax precipitation curve of crude oil with the differential heat flow as the ordinate and the temperature as the abscissa.

Technical performance parameters:

● Standard: SY T 0545-2012 Thermal characteristics of wax precipitation of crude oil

● Temperature range: - 40 ℃~600 ℃;

● Temperature resolution: 0.01 ℃

● Temperature fluctuation: ± 0.01 ℃

● Temperature repeatability: ± 0.1 ℃

● Heating rate: 0.1~100 ℃/min

● Cooling rate: 0.1~20 ℃/min

● Constant temperature time: program setting ≤ 24h

● Curve scanning: heating scanning, cooling scanning

● Display mode: human inductive touch screen

● USB communication interface, with strong universality, reliable communication without interruption, and supporting self recovery connection function

● New metal furnace structure, better baseline and higher precision. Indirect conduction mode is adopted for heating, which has high uniformity and stability, reduces pulse radiation and is superior to traditional heating mode.

● Display mode: 7-inch LCD touch screen display

● Data interface: standard USB interface

● Instrument size: 480 * 430 * 490mm, weight 35kg

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instruments and materials provided are brand new goods that meet the national quality standards and have the manufacturer's certificate;

----The materials and main components provided meet the technical requirements specified in the technical data;

----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).

----We are responsible for free maintenance of the instrument in case of quality problems during the warranty period. In case of equipment failure caused by the user, we shall be responsible for maintenance and reasonable charge.

----The equipment will be supplied with spare parts at a preferential price for life, and the whole machine will be maintained and repaired for life.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.

packing list
