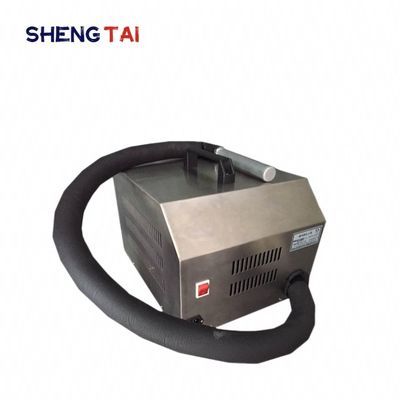

ZL-1Low temperature fluctuation of imported compressor refrigeration for input type refrigerators

ZL-1 Input Refrigerator is specially designed and made according to the specific climatic conditions of China and the specific needs of the laboratory. When the room temperature is higher than the experimental temperature and the test bath needs to be cooled, it can be conveniently placed in the experimental container to directly cool the liquid in the container.

I. Main technical features

The instrument is compact, portable, fast refrigeration, good effect, easy to use.

This instrument can be used with the company's oil product anti-foam tester, oil product density tester, oil product kinematic viscosity tester and other kinds of need to cool down, constant temperature test bath matching;

At the same time, it can also be used as a refrigeration source for all kinds of test bath cooling and constant temperature work. It is a widely used general equipment for laboratory cooling and constant temperature.

II. Main technical parameters and indicators

1. Power supply: AC220V±10%, 50Hz;

2. Total power: 200W;

3. Refrigeration compressor: fully enclosed compressor;

4, the use of working medium: environmentally friendly R134A;

5, ambient temperature: (5 ~ 35)℃;

6, relative humidity: ≤85%;

7, instrument material: all 304 stainless steel production

8, Dimensions: 350㎜×280㎜×300㎜ (length × width × height);

9, the use of the environment: the surrounding environment without strong vibration and magnetic field, no dust and corrosive gas.

Refrigeration head size: φ 32*200mm

Simple operation

1. The instrument should be kept dry and clean.

2. After the instrument is turned off, it should stay for at least 20 minutes before starting up, otherwise it will reduce the service life of the compressor, or even damage the compressor.

3. After the instrument is used, first turn off the power switch, unplug the power plug, and carefully take out the probe of the refrigerator from the constant temperature bath.
