800 W Distillation Tester Standards Gb/T 9168 Astm D1160 Iso 6616

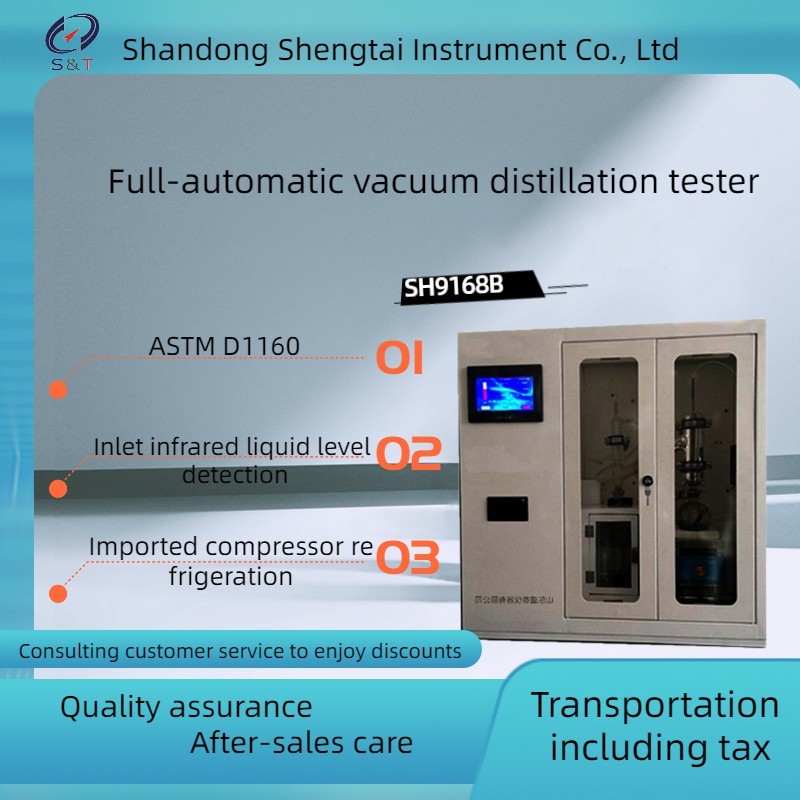

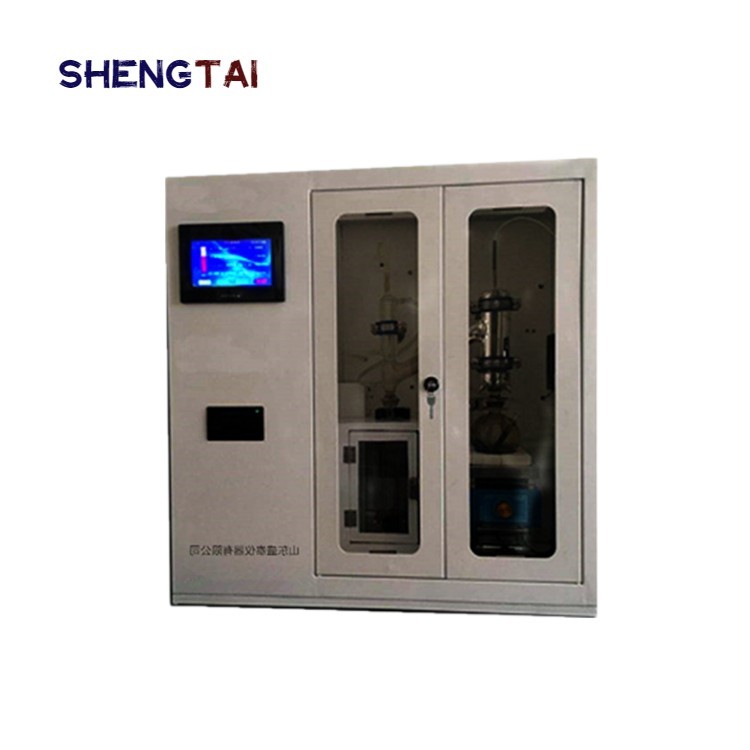

SH9168B automatic vacuum distillation tester is a special test instrument designed and manufactured according to the standard GB/T 9168 and ASTM D-1160 of the People's Republic of China. It can partially or completely evaporate the boiling point range of petroleum products.

This instrument is automatic decompression distillation measuring instrument, with heating device and refrigeration device, equipped with imported liquid level sensor, automatic tracking liquid level, the selection of imported compressor refrigeration, 7 inch touch screen display data, experimental data saved after the completion of the experiment, and can print the experimental results of data.

Vacuum Distillation Tester of Petroleum Products with High Boiling Point Range

ASTM D1160 Automatic Reduced Pressure Vacuum Distillation Tester

Automatic Vacuum Distillation Tester

Automatic Vacuum Distillation Tester for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process

Performance characteristics:

1. The heating and cooling, liquid level tracking, temperature recording, printing and other automatic completion of the measurement process.

2, Built-in miniature thermal printer automatically report the test results, one key to complete the determination.

3. The testing process complies with the standard provisions and the data is reliable.

The method is reliable and reproducible.

4. Imported infrared liquid level detection is not affected by indoor light interference, accurate recovery reading.

Technical parameters

1, display mode: embedded industrial grade color touch screen

2. Refrigeration method: Germany imported compressor refrigeration

3, temperature range: -40℃ ~ room temperature or room temperature ~ 500°C accuracy ±0.1°C

4, Heating mode: electric heating unit, maximum heating power 800 W

5, Temperature sensor: PT 100 glass probe imported from Germany

6. Refrigeration method: compressor refrigeration.

7, distillation rate: 4 ~ 5mL/min

8, volume detection range: 0 ~ 200mL

9, working power supply: AC220V 50HZ
