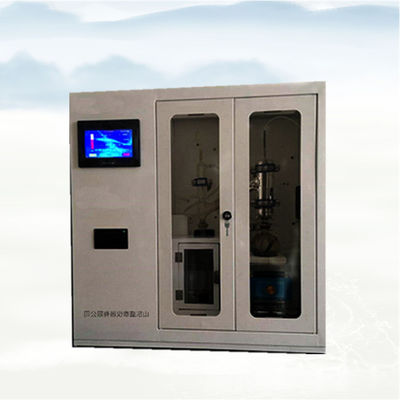

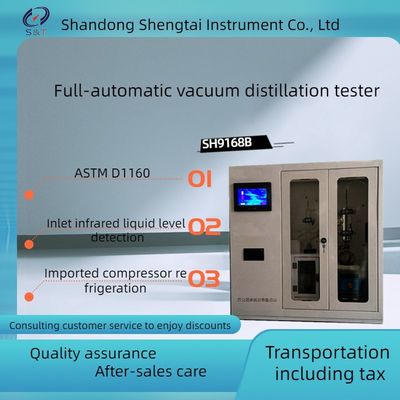

ASTM D1160 Automatic Vacuum Distillation Tester For Petroleum Products

ASTM D1160Automatic Vacuum Distillation Tester For Distillation Characteristics Of Petroleum Products

SH9168B automatic vacuum distillation tester is a special test instrument designed and manufactured according to the standard GB/T 9168 and ASTM D-1160 of the People's Republic of China. It can partially or completely evaporate the boiling point range of petroleum products.

This instrument is automatic decompression distillation measuring instrument, with heating device and refrigeration device, equipped with imported liquid level sensor, automatic tracking liquid level, the selection of imported compressor refrigeration, 7 inch touch screen display data, experimental data saved after the completion of the experiment, and can print the experimental results of data.

Vacuum Distillation Tester of Petroleum Products with High Boiling Point Range

ASTM D1160 Automatic Reduced Pressure Vacuum Distillation Tester

Automatic Vacuum Distillation Tester

Automatic Vacuum Distillation Tester for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process

Performance characteristics:

1. The heating and cooling, liquid level tracking, temperature recording, printing and other automatic completion of the measurement process.

2, Built-in miniature thermal printer automatically report the test results, one key to complete the determination.

3. The testing process complies with the standard provisions and the data is reliable.

The method is reliable and reproducible.

4. Imported infrared liquid level detection is not affected by indoor light interference, accurate recovery reading.

Technical parameters

1, display mode: embedded industrial grade color touch screen

2. Refrigeration method: Germany imported compressor refrigeration

3, temperature range: -40℃ ~ room temperature or room temperature ~ 500°C accuracy ±0.1°C

4, Heating mode: electric heating unit, maximum heating power 800 W

5, Temperature sensor: PT 100 glass probe imported from Germany

6. Refrigeration method: compressor refrigeration.

7, distillation rate: 4 ~ 5mL/min

8, volume detection range: 0 ~ 200mL

9, working power supply: AC220V 50HZ

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
