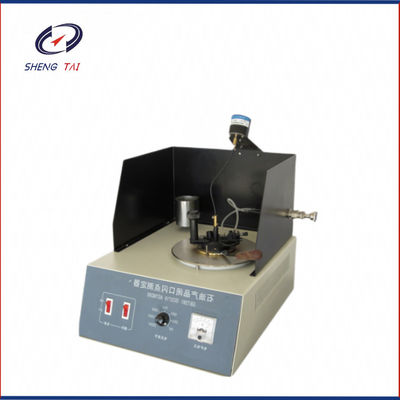

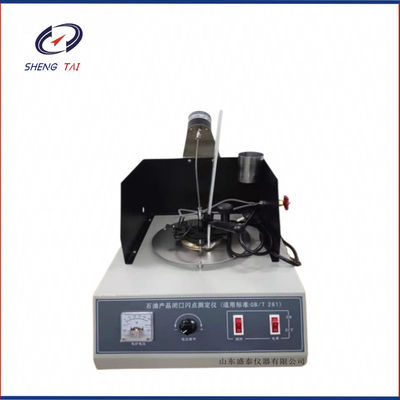

SD261 Binsky Martin Closed Flash Point Instrument For Petroleum Products

SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.

ASTM D93 Automatic Binsky Martin Closed Cup Flash Point Apparatus Tester

closed mouth flash point tester, used to measure the closed mouth flash point value of petroleum products

closed-mouth flash point tester / Closed Cup Flash Spot Analyzer

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for laboratory testing

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for oil testing

Portable Manual Binsky-Martin Closed Cup Flash Point Tester

I. Main technical features

1. The design of this instrument fully complies with the requirements of GB/T261-2008 standard.

2. The heating power is continuous and stepless adjustable.

3. Working power supply: AC 220V ± 10%, 50Hz.

4. Heating device: The heating power is continuously adjustable from 0 to 600W.

5. Sample heating rate: 1-12 ℃/min.

6. Standard oil cup: ⑴ Inner diameter: 50.7-50.8mm.

7.Depth: 55.7-56.0 mm.

8. Oil testing capacity, depth of marking: 33.9-34.3mm.

9. Oil testing capacity: approximately 70 milliliters.

10. Ignition device:

⑴ Ignition source: gas (or other civil combustible gas, the same below).

⑵ Pilot aperture: 0.8mm.

11. Thermometer: rod Mercury-in-glass thermometer, which meets the requirements of GB/T 261-2008 standard.

Size: 280 ×220× 240mm (length × wide × High) Weight: 9kg

II. Main technical parameters and indicators

Packing list:

Customer provided: air source and air source required pressure reducing valve
