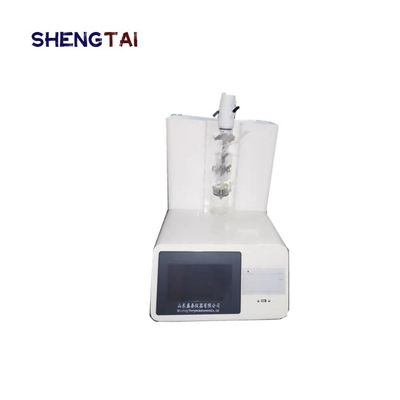

ASTM D611 fully automatic aniline point tester starts automatic photoelectric detection with one click SD262B

SD262B Automatic aniline point tester is designed and manufactured according to the requirements of national standard GB/T262 "Aniline point determination method of petroleum products" and ASTM D611. It is suitable for the determination of aniline point of light colored petroleum products and dark colored petroleum products.

Aniline point is the lowest temperature at which petroleum products dissolve into a single liquid phase with aniline in equal volume.

Performance characteristics and technical parameters:

1.7 inch color LCD touch screen, fashionable and beautiful. Chinese human-machine dialogue interface, clear and intuitive.

2. Using imported photoelectric sensors, the test results are accurate and have consistent repeatability.

3. Equipped with over temperature alarm function. In the test, if the sample temperature exceeds 170 ℃, the buzzer will automatically alarm and stop the test.

4. Easy to operate, one click start, and the test process is automatically completed.

5. The host is controlled by a microprocessor program, with automatic heating and stirring during the testing process, automatic identification and storage of aniline points. Working mode: automatic photoelectric detection, microcontroller control

6. Automatic printing, automatic shutdown at the end of the test.

7. The experimental results can be exported through a USB flash drive and stored in a computer for multiple experimental comparisons

8. It has the function of setting date and password.

9. Temperature control range: room temperature~200 ℃

10. Temperature control accuracy: ± 0.1 ℃

11. Temperature detection: pt100 platinum resistance temperature sensor

12. Heating method: electric heating rod

13. Heating power: 60W

14. Mixing method: motor driven flexible shaft mixing

15. Cooling rate: 1 ℃/min~2 ℃/min

16. Detection method: photoelectric sensor

17. Storage records: 200

18. Printing method: Micro printer

19. Working power supply: AC 220V ± 10% 50HZ

20. Storage method: The experimental results can store 199 sets of historical data for easy query;

21. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

22. Output Format: The output format of the result USB drive is CSV or Excel.

23. Standard printing: Standard micro printer for automatic measurement and thermal printing

★ 24. Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional)

★ 25. Data management: can be connected to the LIMS system (optional)

Technical parameters:

Packing list
