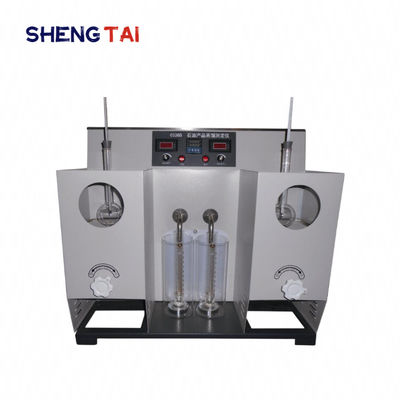

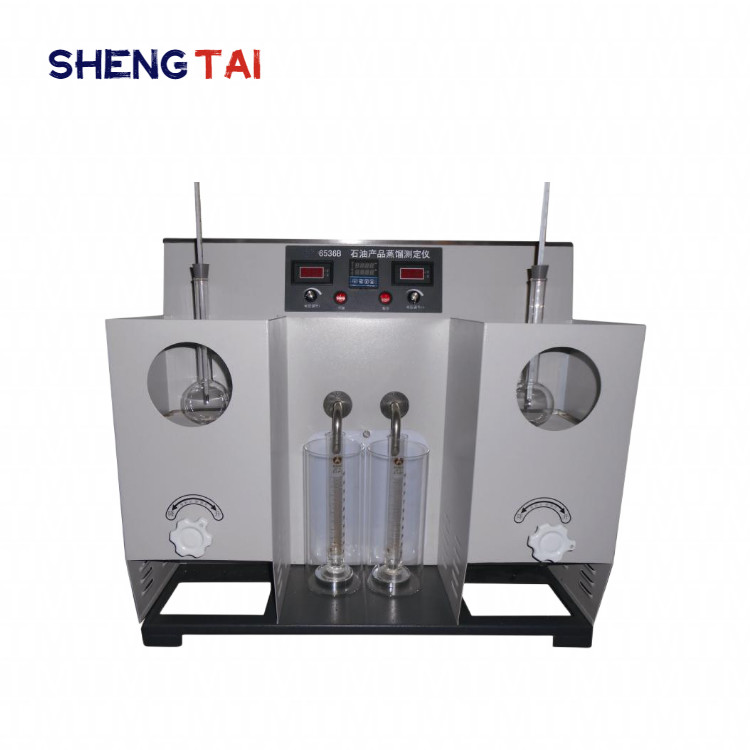

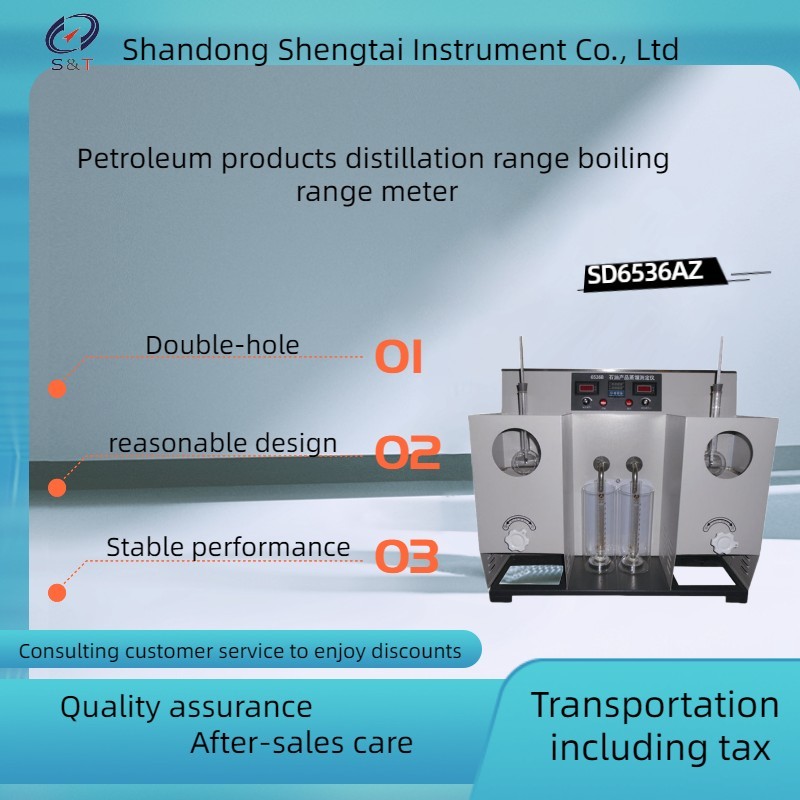

Naphtha distillation boiling range tester (double hole) compressor refrigeration SD6536AZ

Purpose and scope of application

SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.

Main technical parameters and technical characteristics

1. A constant temperature bath is composed of a digital temperature controller, stainless steel heater, and a new refrigeration compressor, with uniform temperature inside the bath, fully meeting the requirements of the experiment.

2. Adopting a special heating furnace form to ensure the safety of the test; The heating power is continuously adjustable, meeting the requirements of the experiment.

3. This instrument is fully equipped and easy to use, and can be used for distillation range boiling range testing of petroleum products under low temperature conditions upon purchase.

4. The condensate water tank is made of stainless steel and can be heated and cooled

5. Working power supply: AC 220V ± 10%, 50Hz rated power: approximately 2000W.

6. Electric furnace heating power: 1000W * 2;

7. Heating furnace: high-quality nickel cadmium alloy heating wire, power 0-1000W, continuously adjustable

8. Volume of measuring cylinder: 100ml, graduated 1ml;

9. Distillation flask: 125mL, meeting the requirements of GB/T 6536;

10. Distillation pressure regulating furnace power: 0-1 KW × 2

11. Condensing tube size: Φ 14 × 560 mm condenser tube: seamless brass tube

12. The volume of the condensation bath is 5.5L, and 4.5L of liquid is actually added

13. Heating method of condensation bath: electric heating rod;

14. Condensation bath temperature control method: digital temperature controller temperature control;

15. Refrigeration system: new refrigeration compressor

16. Heating temperature range: 0-400 ℃.

17. Maximum power of the entire machine: 2.45 KW.

18. Number of experiments: double hole

19. Instrument size: 760 ×520 × 500 mm (length × wide × High)

20. Instrument weight: 36kg

Packing list
