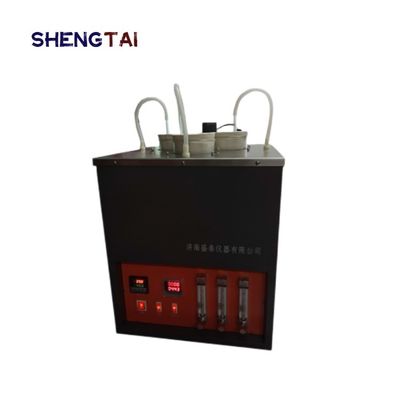

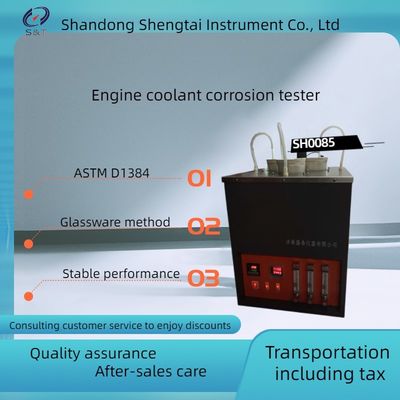

ASTMD1384 Engine coolant corrosion tester with water bath heating and built-in silent air compressor with three holes

SH0085 antifreeze corrosion instrument is according to the law of the People's Republic of China petroleum and chemical industry standard SH/T0085 the engine cooling fluid corrosion measurement the requirements of the design and manufacture, suitable for according to the SH/T0085 standard measurement method, the determination of high boiling point and low boiling point engine coolant and concentrate on the extent of the typical specimens of metal corrosion, SH0085 corrosion tester upgraded instruments bring silent air compressor, no need to manually equipped with air.

ASTM D1384 Engine Coolant Corrosion Tester

ASTM D1384 Antifreeze Coolant Corrosion Tester

Engine Coolant Corrosiveness Tester

Coolant Corrosion Testing Equipment ASTM D1384

ASTM D1384 Engine Oil Tester for Coolant Oil

Main technical specifications

Beaker: Made of heat-resistant glass. High profile mouthless 1000ml, compliant with SH/T0085 standard

Gas diffusion tube: The diffusion head is made of sand core glass, and the pipe diameter is made of heat-resistant glass.

Reflux condenser tube: water-cooled type, with a sleeve length of no less than 400mm.

Technical parameters

Sample size and material:

SH/T0085 engine coolant corrosion determination method (glassware method) set of test plates AST,M D1384

50x20x2mm (20# steel, brass sheet, copper sheet)

50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)

Single center hole: φ7.0mm

Supporting products:

Brass washers, Insulation washers, Steel washers, Insulation bushing, Brass bracket

Instrument size: 350 * 370 * 480mm Weight: 28kg

Packing list
