ASTM D1120 Engine coolant boiling point tester Heating mantle heating tap water circulating cooling

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0089
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH0089 Applicable Standards ASTM D1120, SH/T0089 Or SH/T0430
Heating Mode Electric Heating-jacket Total Power 500W
Cooling Method Water Circulation
Leave a Message
Product Description

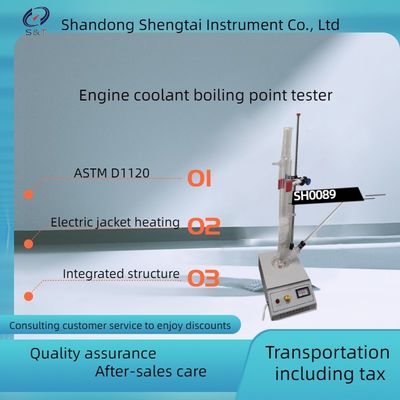

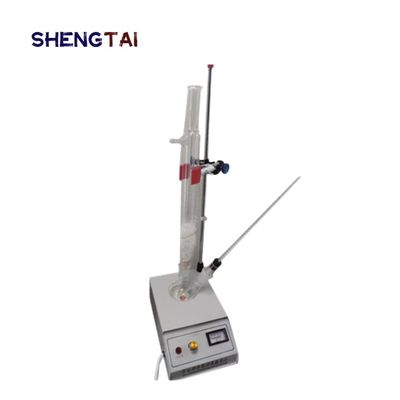

SH0089 engine coolant boiling point tester is to determine the equilibrium boiling point of engine coolant, suitable for the determination of diluted or concentrated engine coolant.

Product model SH0089
Product name Engine coolant boiling point tester
Testing items Suitable for measuring diluted or concentrated engine coolant.
Compliant with standards ASTM D1120 SH/T0089 SH/T0430
Simple technical features or parameters Heating mantle heating, no open flame, safe and environmentally friendly;Integrated structure, easy to operate;





Boiling Point of Engine Coolants Tester

ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester

ASTM D1120 Equilibrium Boiling Point Tester for Engine Coolants

ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester

ASTM D1120 Equilibrium Boiling Point Test Equipment for Engine Coolants

ASTM D 1120 Engine Coolants Brake Fluid Boiling Point Detector

Boiling Point of Engine Coolants Apparatus



performance characteristics

  1. Electric heating sleeve heating, no open fire, safe and environmental protection;
  2. Integral structure, easy to operate;
  3. Precision potentiometer to adjust the heating rate;
  4. Convenient access to control box;
  5. Tap water circulation cooling;
  6. High power solid state voltage regulator control heater;
  7. The surface is treated with electrostatic spray, easy to clean;

ASTM D1120  Engine coolant boiling point tester Heating mantle heating tap water circulating cooling 0

Technical parameters



1 Applicable standards

ASTM D1120, SH/T0089 or SH/T0430



2 Heating mode electric heating-jacket
3 Temperature control mode solid state voltage regulator (SSVD)
4 Total power 500W
5 Cooling method

water circulation



6 Reflux condensing pipe

200mm long, in line with SH/T0089 standard requirements.



7 Thermometer the temperature range of -5℃-300℃, the minimum index value of 1.0℃
8 Distilled flask made of hard glass and heat resistant above 500 degrees
Instrument size: 320 * 290 * 360mm Weight: 15kg
Package size: 450 * 390 * 420mm Weight: 18kg

With a thermometer socket, in line with the requirements of SH/T0089.



Packing list



S/N Name Quantity Unit Remarks
1 Instrument host (electric heating device) 1 set
2 Condenser tube holder 1 piece
3 Condenser tube 1 piece
4 Round bottom flask 1 piece
5 Power cord 1 piece
6 Certificate warranty card 1 copy
7 Instruction manual 1 copy

ASTM D1120  Engine coolant boiling point tester Heating mantle heating tap water circulating cooling 1
