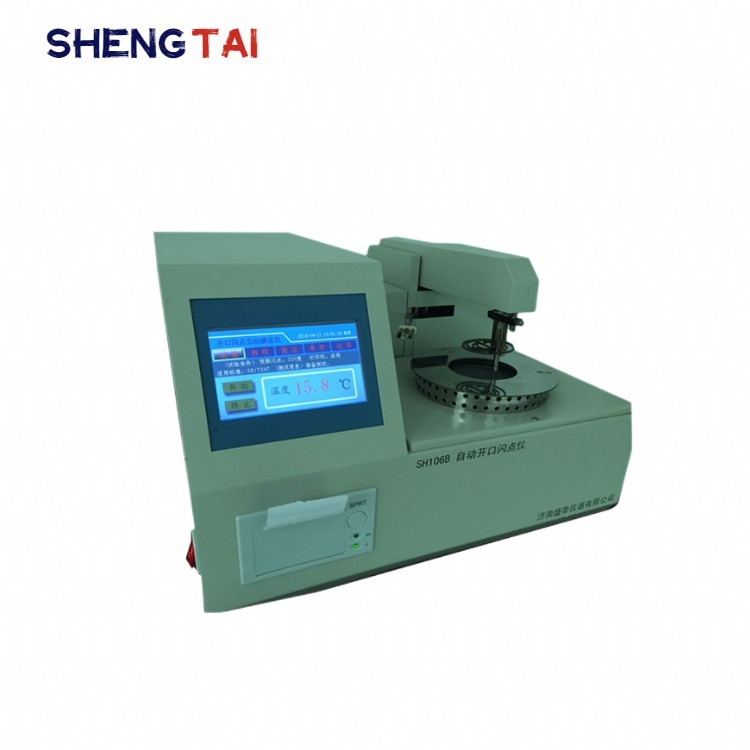

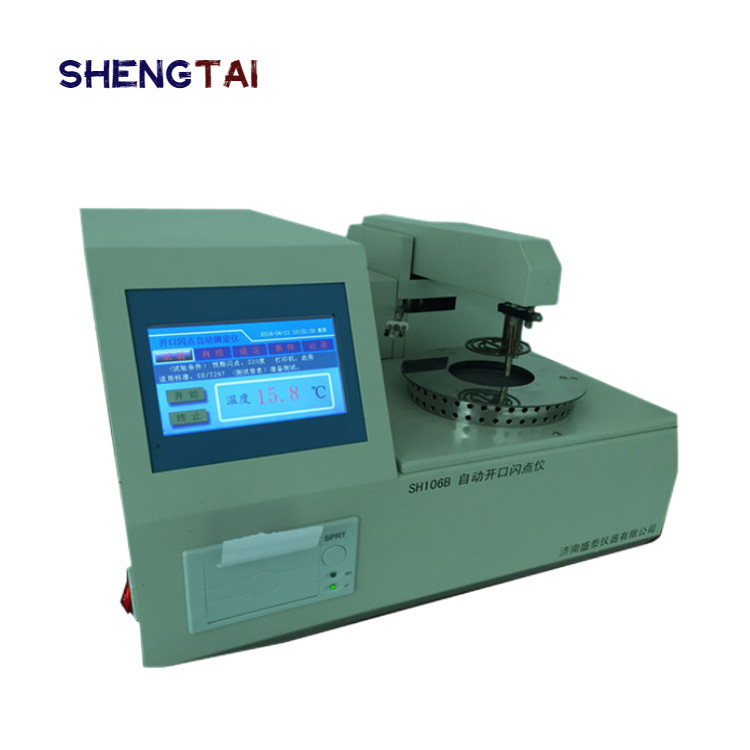

SH106B Full Automatic Cleveland Open Flash Point Tester For Gear Oil

SH106B full-automatic open flash point tester is designed and manufactured in accordance with the requirements specified in the China standards GB/T 3536 and GB/T267 Petroleum Products Flash Point and Fire Point Determination Method (Cleveland Open Cup Method), and also supports the determination of GB/T1671-2008 plasticizer flash point ASTMD92.

The open flash point is mainly used to measure gasoline engine lubricating oil, diesel engine lubricating oil, compressor oil, and refrigerationOil, turbine oil, Gear oil, machine oil, etc

The principle of open flash point measurement is to load the sample into the test cup to the specified mark. Firstly, increase the temperature of the sample, then slowly raise the temperature, and as it approaches the flash point, increase the temperature at a constant rate. At the specified temperature interval, a small test flame is passed horizontally through the test cup, and the lowest temperature at which the vapor on the liquid surface is ignited by the test flame is used as the measurement result of the open flash point.

ASTM D92 SH106B Automatic Cleveland Open Cup Flash Point Tester for Oil Testing

ASTM D92 Automatic Engine Oil Open Cup Flash Point Tester

Automatic Digital Portable Open/Closed Cup Type Oil Flash and Fire Point Tester

Automatic open flash point tester for Turbine oil standard ASTMD 92 GB/T3536 Cleveland open cup method

Instrument features

1. The instrument adopts color LCD large screen display, full Chinese man-machine dialogue interface, no identification keyboard, for the parameters such as pre-value temperature, sample label, atmospheric pressure, test date, with prompt menu, oriented input function.

2. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

3. Differential detection, automatic correction of system deviation.

4. Scanning, detection and printing data are automatically completed, and the test arm automatically rises and falls.

5. Electronic ignition and forced air cooling

6, without automatic ignition of air source, improve the safety of the test

Main technical indexes and parameters

1, working power supply: AC220V±10%, 50Hz

2, temperature measurement: range: room temperature ~ 400℃;

Repeatability: flash point ≤150℃ error ±2℃ flash point ≥150℃ error ±3℃

Resolution: 0.1℃;

Precision: 0.5%;

3. Heating speed: in line with GB/T3536 standard;

4, ignition mode: electronic ignition, flame 3mm~4mm;

5, ambient temperature: (10~40)℃;

6, relative humidity: ≤80%;

7.Boundary dimension: 430 * 380 * 520 (mm), about 15kg

Packing list
