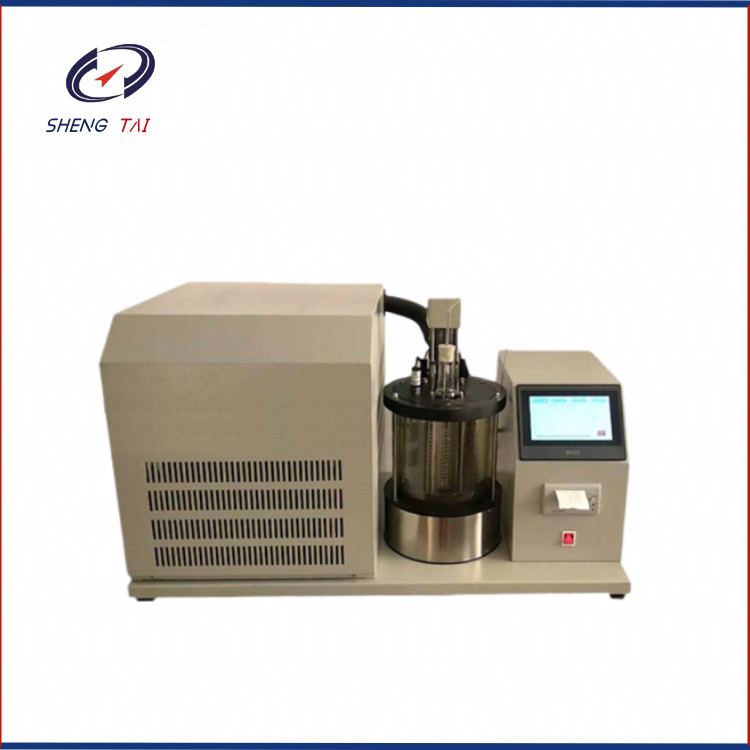

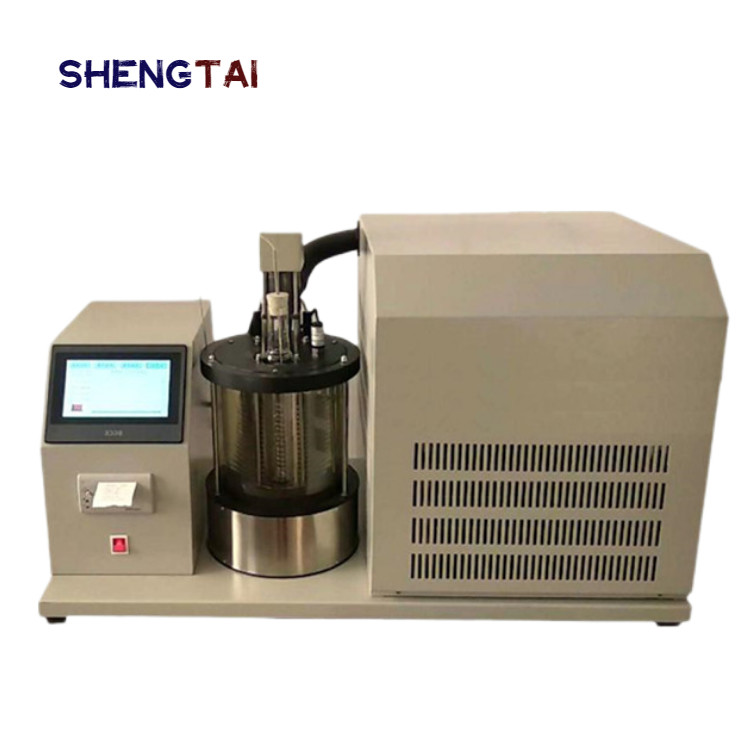

ASTM D445 Silicone Oil Low Temperature Motion Viscosity Meter Customized SH112E

SH112E low temperature petroleum kinematic viscometer conforms to the national standard GB/T265 "Petroleum product kinematic viscosity measurement method and dynamic viscosity calculation method" standard measurement requirements.

ASTM D445 Petroleum Automatic Digital Low Temperature Cold Kinematic Viscometer

SH112E Low Temperature Kinematic Viscometer

Digital Refrigerated ASTM D445 Low Temperature Kinematic Viscometer Bath

Laboratory Low Temperature Viscosity Testing Kinematic Viscometer Apparatus ASTM D445

Low Temperature Precision Kinematic Viscosity Bath GB/T265

Electric Automatic kinematic viscosity apparatus low temperature kinematic viscosity tester for oil and tar

The main features are as follows:

1. The constant temperature bath is double-layer dewar bottle with low temperature. The temperature distribution in the bath is even and the temperature control effect is good.

2, the instrument adopts precision digital temperature controller to control the temperature in the bathtub, the executive components are solid-state relay SSR, with temperature control accuracy and accuracy, no contact, no noise, no spark, fast action, long life and other characteristics.

3, Capillary card adopts three point vertical type, flexible and convenient operation, reliable clamping.

4.Adopt color LCD large screen Chinese display, no marker button, temperature measurement using precision platinum resistance PT100, -40 ℃~60 ℃ can be set arbitrarily, and the constant of the capillary can be stored after power off. Manual sampling, manual cleaning, and automatic calculation of viscosity value can be performed.

5. USB data output function, imported to computer in Excel format

★ 6. Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional)

★ 7. Data management: can be connected to the LIMS system (optional)

Main technical indicators:

Temperature control point: -40℃-60℃ Temperature control precision: + 0.1℃;

Display mode: digital display;

Stopwatch timing: 0.00seconds 9999 seconds;

Heating power: 750W;

Power supply: AC 220V±10%, 50Hz ±5%;

Ambient temperature: 5℃-40℃;

Ambient humidity: < 85%;

Dimensions: 530×460×870mm;

Weight: 58Kg.

Customer supplies are required: water or alcohol.

Strictly according to national standards, the viscosity tube test before the need to clean the following reagents: solvent oil or petroleum ether.

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
