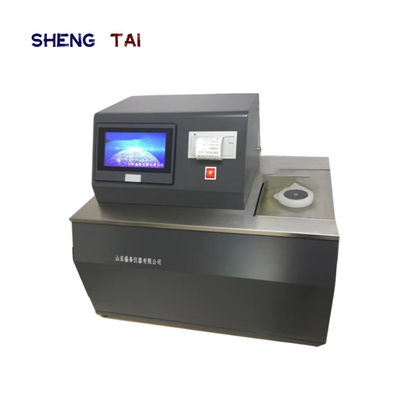

Fully automatic petroleum product pour point tester Single hole SH113E glass test tube automatic tilting method

The SH113E fully automatic solidifying point tester is based on the national standard GB/T510 "Method for Determining the Solidification Point of Petroleum Products". It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technology. It can automatically complete the testing of the freezing point of petroleum products. This instrument adopts photoelectric detection technology, glass tube automatic tilting method, and imported compressor refrigeration system to ensure the required cooling depth is achieved.

The solidifying point is the highest temperature of an oil product under specified test conditions, expressed in ℃, when the test oil is placed in a test tube and cooled until the liquid level does not move

Technical parameters and characteristics:

1. Compliance with standard: GB/T510

2. Human machine interface: 7-inch color LCD touch screen;

3. Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

4. Detection method: Imported photoelectric switch detection

5. After upgrading, historical data can be stored for easy query; It can also be equipped with a USB flash drive output function.

6. Standard micro printer for automatic measurement and printing

7. If there are no personnel to operate after the test is completed, set the automatic shutdown time of the refrigeration machine within 0-50min to avoid frequent startup of the compressor and compressor, and extend the service life of the instrument,

9. Standard micro printer for automatic measurement and thermal printing

10. Number of test holes: single hole

11. Temperature range:+30 ℃~-70 ℃

12. Temperature control accuracy: ＜± 0.1 ℃

13. Sample size: Place at the scale line of the test tube

14. Refrigerating medium: metal bath refrigeration

15. Printer: Small thermal printer

16. Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

17. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

18. Output Format: The output format of the result USB drive is CSV or Excel.

19. Standard printing: Standard micro printer for automatic measurement and thermal printing

20. Data memory: The memory of microcomputer instruments can be expanded to 16GB.

★ 21. Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

★ 22. Data management: can be connected to the LIMIS system (optional)

23. Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

Packaging size: 690 * 520 * 660 Packaging weight: 80kg

Packing list of automatic freezing point instrument
