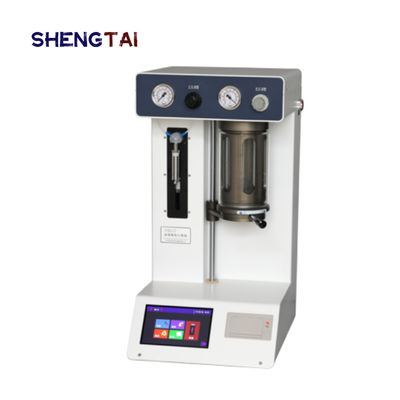

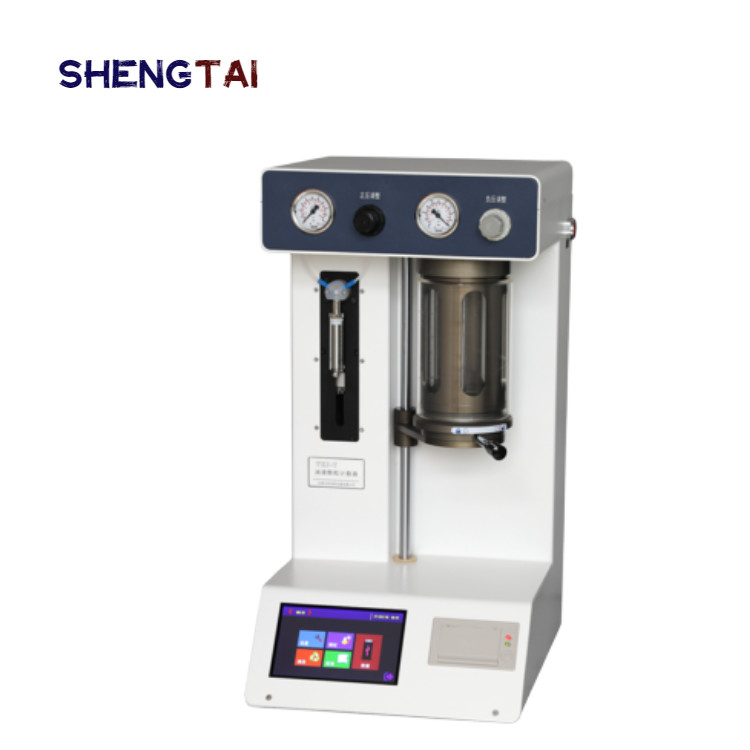

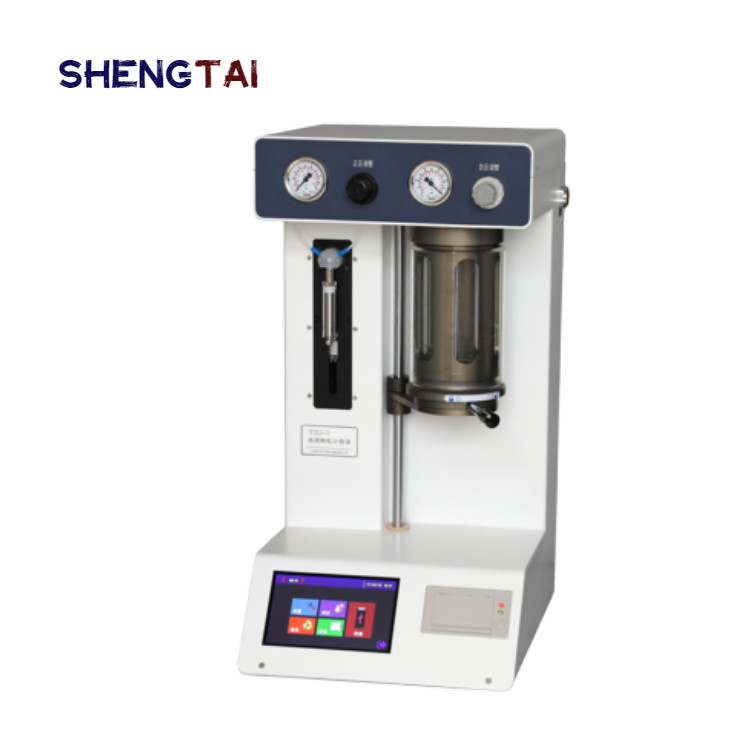

Fully Automatic Turbine Oil Tester Oil Pollution Particles Detection SH302B

SH302B automatic oil particle counter is used to detect the size and number of the solid particles in the liquid, can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, machinery, automobile manufacturing and other fields, the hydraulic oil, lubricating oil, rock oil, transformer oil, insulating oil, turbine oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluid solid particle pollution tests such as oil, and organic liquid, polymer solution for detection of insoluble particles.

Automatic oil pollution particle counter uses "photoresist method" to measure particles, and adopts the classic methods of oil industry NAS1638 and ISO4406, and can be according to the requirements of users, built-in a variety of standards required by users.

Precision syringe type sampling system, to achieve constant sampling speed and accurate control of sampling volume.

Positive/negative pressure sampling chamber device, sample degassing and high viscosity sample detection.

Large color LCD touch screen, graphic menu display, touch operation, simple and convenient.

Automatic Liquid Particle Counter for Detecting Particles in Oil

performance characteristics

1. The counting principle of light resistance (shading) method formulated by International Hydraulic Standards Committee is adopted
2. High precision laser sensor, wide test range, stable performance, low noise, high resolution
3. Adopt the high pressure injection pump sampling mode, can set the sampling volume, the sampling speed is stable, the sampling accuracy is high
4. Sampling system combined with positive and negative pressure can realize sample degassing, which is suitable for inspection and testing of different viscosity
5. Built-in pressure sensor, you can set the pressure value, and automatically judge the cabin air pressure, ensure safety
6. Built-in air purification system to ensure that the test is not polluted
7. Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration
8. Built-in GJB - 420 - b, NAS1638, ISO4406 (GB/T14039), SAE4059E and Г OCT17216-71, and other common standards, support custom standard tests, and can according to customer requirements set the required standards
9. Built - in data analysis system, one test can give all standard test data and pollution level
10. The particle size can be set arbitrarily, with nearly ten thousand particle sizes built in, which is convenient for particle size analysis
11. Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries
12. Full function automatic color touch screen operation, support Chinese and English dual interface, easy to operate
13. Single channel and multi-channel calibration can be carried out to achieve automatic calibration function
14. With RS232 interface, it can be connected to computer or laboratory platform for data processing
15. With mass data storage, printing function, can store 1000 groups of data and support U disk data storage

Technical indicators

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
