IP278 Petroleum Product Sealing Adaptability Index Tester Electric Heating Wire Heating

SH0305 petroleum product sealing adaptability index tester is suitable for the determination of all kinds of petroleum products, but not suitable for the determination of petroleum products containing water.

The inner diameter of the rubber ring is measured with a conical gauge, and then the rubber ring is soaked in the sample at a certain temperature for 24 hours. Then the rubber ring is taken out and cooled. The change of the inner diameter of the rubber is measured with a conical gauge.

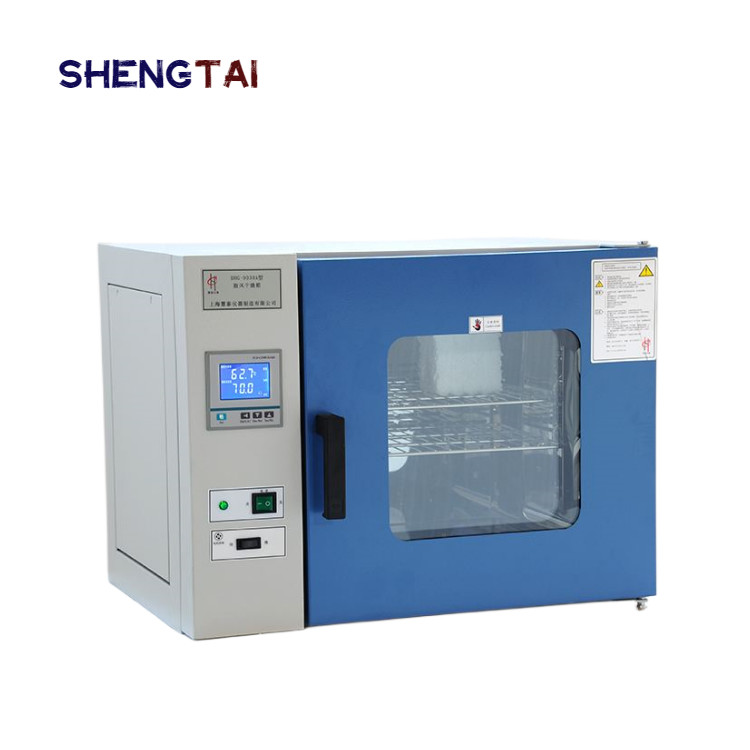

Petroleum Products Seal Compatibility Index Tester

Main features

1. Stainless steel lining with fan, 350 x 350 x 350 mm inside.High efficiency thermal insulation;
2. Microcomputer LCD PID temperature control, accuracy 0.1°C, temperature sensor PT100 RTD;
3. Operating range: room temperature ~ 200°C ± 1°C (test temperature is 100°C);
4. Over temperature safety protection;Stainless steel heater;
5. 300 x 200 mm glazing on the double doors for easy viewing;
6. Standard alloy steel gauge;
7. Instrumentation includes a convection oven with a standard design for temperatures up to 200°C

Technical parameters

Applicable standard: SH/T0305 IP278

Power source: AC220±10% 50Hz±5%

Heating method: electric heating wire heating

Temperature control mode: PID temperature controller

Temperature control range: normal temperature ~200±1℃

Operating voltage: 10kV ±2%

Packing list:

CUSTOMERS NEED TO PREPARE TEST SUPPLIES:

1. MEASURING CYLINDER: 50ML

2. BAMBOO TWEEZERS: LENGTH 150~200MM

3. Scissors

4. Filter Paper

5. Petroleum ether: analytical pure, 60~90 °C
