SH810 Petroleum Products Fully Automatic Colorimeter Optical Automatic Judgment

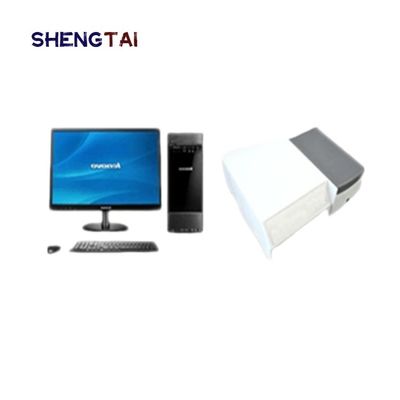

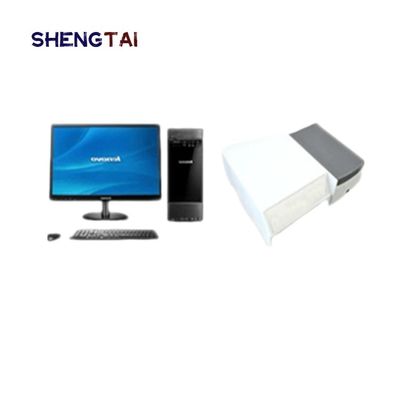

SH810 Fully automatic petroleum product colorimeter

The SH810 fully automatic petroleum product colorimeter is a specialized instrument designed for liquid color measurement with unique microcomputer control technology. It is exquisite, portable, novel, and unique in design, suitable for laboratory and on-site use. Equipped with factory calibration and user defined calibration functions, the sample cell design is unique and easy to measure and maintain.

Platinum cobalt colorimeter adopts D/0 measurement structure, integrates full band light source, single grating optical path Photosystem, ETC real-time calibration and other technologies, so that the resolution of the instrument can reach 0.0001, the standard deviation of transmittance is within 0.08%, and the chromaticity value is: Δ E * ab 0.015.

The result of platinum cobalt chroma is expressed in Hazen. Each liter of solution contains 1 milligram of platinum. The color of Chloroplatinic acid and 2 milligrams of Cobalt(II) chloride hexahydrate solution is 1 unit of platinum cobalt chroma. The general range of values is between 1 and 500. Suitable for measuring the color of liquid chemical products that are transparent or slightly close to the reference platinum cobalt color number. This color characteristic is usually brownish yellow.

Platinum cobalt colorimetry (in accordance with ASTM D1209 GB/T3143) Visual method

Gardner color code: Cobalt(II) chloride solution, ferric chloride solution and Potassium hexachloroplatinate solution are mixed in different proportions as standard chroma, and the general value is between 1-18. Suitable for darker yellow or brownish colors than platinum cobalt. (ASTM D1544)

Saybolt (ASTM D156, GB/T3555 NF M 07-003)

The color of jet fuel is determined according to the method specified in GB/T355-1992 "Petroleum Products - Determination of Sabot Color (Sabot Colorimeter Method)", with color numbers ranging from+30 to -16 (+30 light color, -16 dark color).

Instrument characteristics

1. The color number is fully in accordance with the ISO standard color number in GB/T6540, and has been calibrated according to the ISO standard color number;

2. The instrument automatically determines the color number of the sample through optics, and automatically determines the result;

3. Adopting UV enhanced silicon photodiodes;

4. Expand the measurement range of transmittance from 0 to 100% to 0 to 200%;

Technical Parameter

Color management software

Facilitate the quality control and color data management.

It can digitize users' color management, compare color difference, generate test report, provide various color space measurement data, and customize customers' color management.

Ultraviolet - enhanced silicon photodiode is used

The transmittance measurement range is expanded from 0~100% to 0~200%

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
