Crude Benzene Distillation Range Tester SH6536 Fully Automatic Boiling Range Tester

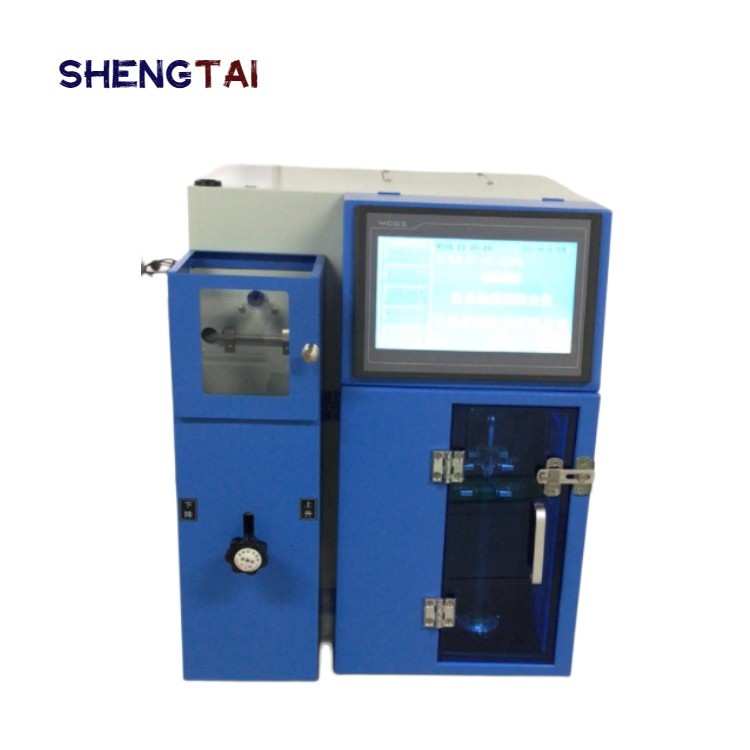

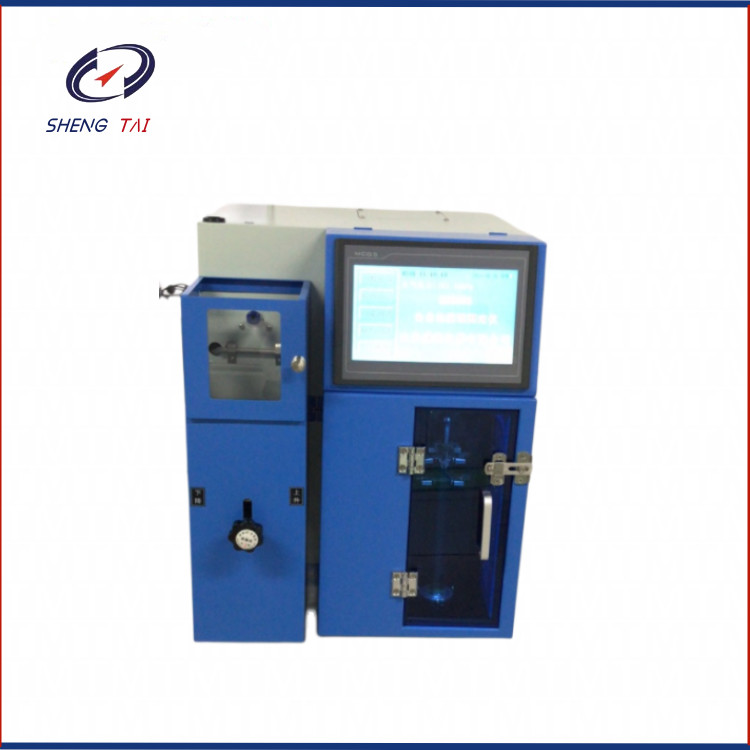

SH6536 Automatic Distillation Range Boiling Range Tester

The SH6536 fully automatic distillation range boiling range tester adopts a color LCD display screen, Chinese menu human-machine dialogue, guided operation, and the measurement process is fully automated. Comply with the national standard GB/T6536 "Petroleum Products Distillation Determination Method" and the GB/T6536 and ASMT D86 standards GB/T7534-2004 Determination of Boiling Range for Industrial Volatile Organic Liquids GB/T255, as well as the GB338-2004 Chemical Raw Material Standard for Industrial Methanol Boiling Range Determination.

Adopting embedded computers, imported industrial control computers, large LCD touch screens, friendly human-machine dialogue interfaces, and convenient experimental operations. By using single-chip microcomputer and intelligent control technology, the heating and cooling of the distillation experiment process, the tracking of distillate liquid level, the control of distillation rate, the control of recovered liquid volume, temperature recording, and the printing of test results are all automatically completed.

Executive standards: GB/T6536-2010, GB/T26984-2011, SH/T0121, GB/T255, GB/T7534-2004

Distillation range refers to the temperature range obtained by distillation of oil products under specified conditions, which represents the evaporation characteristics from the initial boiling point to the final boiling point.

Boiling range: During distillation, the temperature at which the first drop of liquid drops from the condenser tube is the initial distillation temperature; The temperature near the end of distillation is the final distillation temperature, and the range between the two temperatures is the boiling range

Performance characteristics and parameters

• Compliant with standard: GB/T6536 GB/T7534 ASMT D86
• Output display: 12 inch touch screen display
• Liquid level tracking: The system consists of a high-precision stepper American linear motor and an imported photoelectric tracker
• Automatic completion: heating and cooling of the distillation test process, tracking of distillate liquid level, distillation rate control, volume control of recovered liquid, temperature recording, printing of test results, etc., all completed automatically
• Distillation electric furnace: Heating is automatically controlled to control the flow rate of the sample from the initial boiling point to 95%, within 4-5ml per minute
• Data judgment: It can provide initial and final distillation point temperature values, as well as temperature and flow rate values for each percentage point
• Atmospheric pressure: Automatically detects local atmospheric pressure and corrects it to the temperature at standard atmospheric pressure
• Test conditions: You can choose to stop the test according to steam temperature or recovery volume
• Experimental results: Store, query, and print the experimental results, and the data can be output through a USB flash drive
• Cooling medium: internal circulation for cooling, and the coolant should be checked and added once every 3 years.
• Temperature measurement range: room temperature~400 ℃
• Display accuracy: 0.1 ℃
• Steam sensor: imported pt100 platinum resistor
• Starting heating to initial boiling point time: 5-15 minutes
• Distillation rate (flow rate from initial distillation point to 95% recovery): 2-10ml/min (adjustable)
• Time from 5ml residual in the flask to the endpoint: no more than 5 minutes
• Recovery volume measurement range: 0-100ml
• Recovery volume measurement accuracy: ± 0.1 ml
• Volume measurement: liquid level tracking system, mainly composed of stepping motor and Optical fiber liquid level sensor, with motor stepping 0.01ml each time
• Cooling system: compressor cooling
• Cold bath temperature: -5~60 ℃
• Recovery room temperature: 0-40 ℃
• Fire extinguishing system: equipped with a fire extinguishing device, which can be manually extinguished with nitrogen gas in case of fire to prevent safety accidents caused by the explosion of heated distillation flasks (nitrogen bottles need to be provided by the customer)
• Overtemperature protection: If the heating temperature exceeds the set safe temperature, the instrument will automatically stop the experiment and blow air to dissipate heat.
• Automatic detection: Automatically detect and display the temperature and flow rate time at every 5% volume point
• Stop method: Multiple automatic stop methods can be selected, such as automatic stop of final distillation point, set to stop when reaching the specified temperature, and set to stop when reaching the specified volume

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data sharing: can be accessed into the LIMS system of the group company (optional)

Size and weight: 480 * 380 * 650mm 35kg
