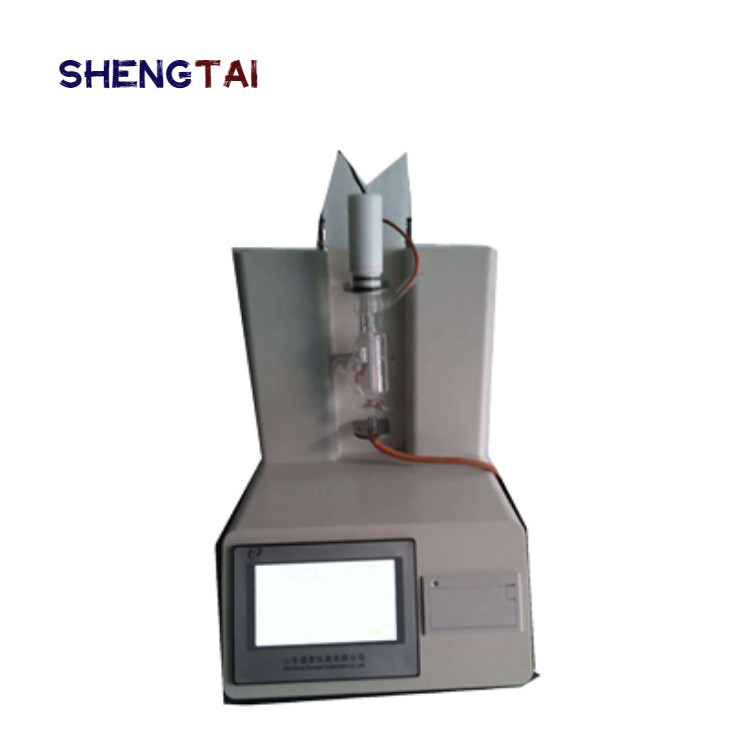

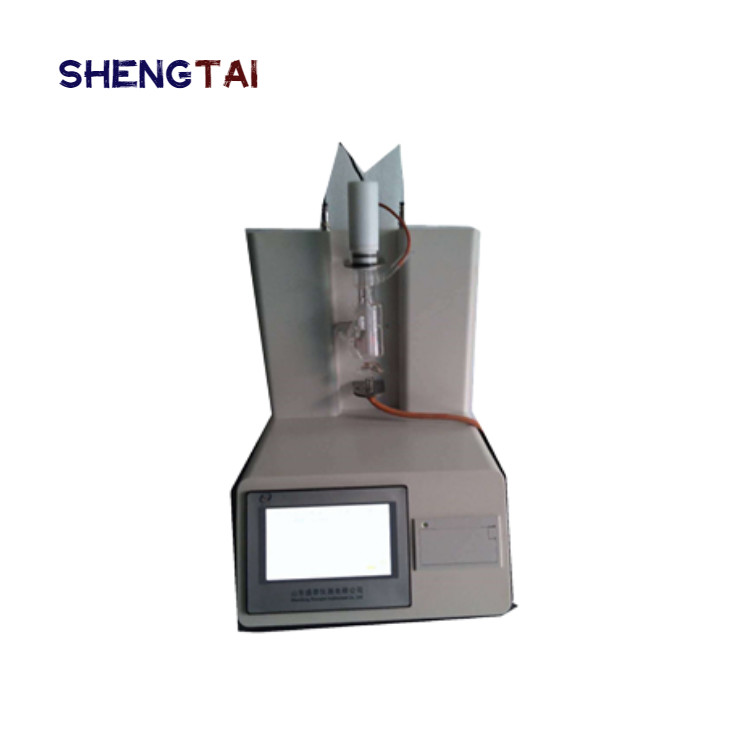

ASTM D2024 Automatic Nonionic Surfactant Cloud Point Tester Petroleum Testing Instruments

       ASTM D2024 nonionic surfactant cloud point of the requirements of the standard test method for the design and manufacture of chemical products is suitable for the determination of light color cloud point.

     SH412 automatic nonionic surfactant cloud point tester is according to the national standard GB/T5559-2010 "type epoxy ethane and epoxy ethane a block polymerization of epoxy propane type nonionic surfactant cloud point determination"

ASTM D2024 nonionic surfactant cloud point tester

Performance characteristics:

1.7-inch color LCD touch screen.

2. The photoelectric sensor imported from abroad is adopted, and the test results are accurate and repeatable.

3. Simple operation, one key start, the test process will be completed automatically.

4. The host adopts microprocessor program control, the test process automatically heating, automatic mixing, automatic cloud point identification, automatic storage.

6. Automatic printing, automatic stop after the test.

7, the experimental results can be exported through the U disk, stored in the computer can be compared for many times

8, with date password setting function.

Technical parameters:

Meet the standard: GB/T5559  ASTM D2024

Temperature control range: room temperature ~200℃

Temperature control accuracy: ±0.1℃.

Heating method: electric heating rod

Heating power: 60W

Stirring mode: automatic stirring by motor

Detection method: photoelectric sensor

Stored records: 200

Print mode: Micro printer

Power supply: AC 220V± 10% 50Hz

Storage: 199 sets of historical data can be stored for easy query;

Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage

Output format: The output format of the result USB flash disk is CSV or EXCEL.

Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).

Data protection: with date password setting function.

Standard printing: standard micro printer automatic measurement automatic thermal printing

Remote upgrade: with TCP network transmission function, can be later software remote upgrade

Data management: can connect to the LIMS system

Data memory: microcomputer instrument memory can be expanded to 16 gigabytes.

packing list
