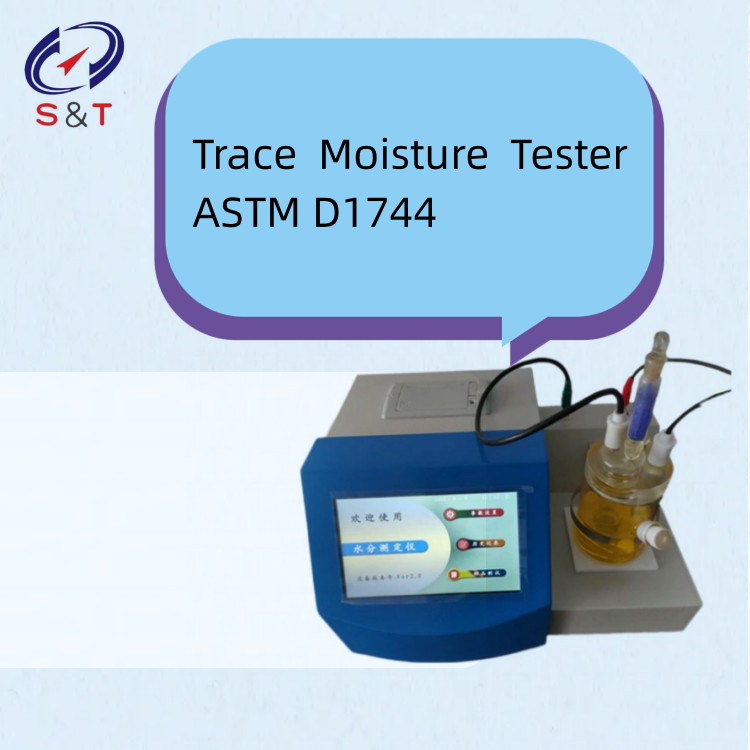

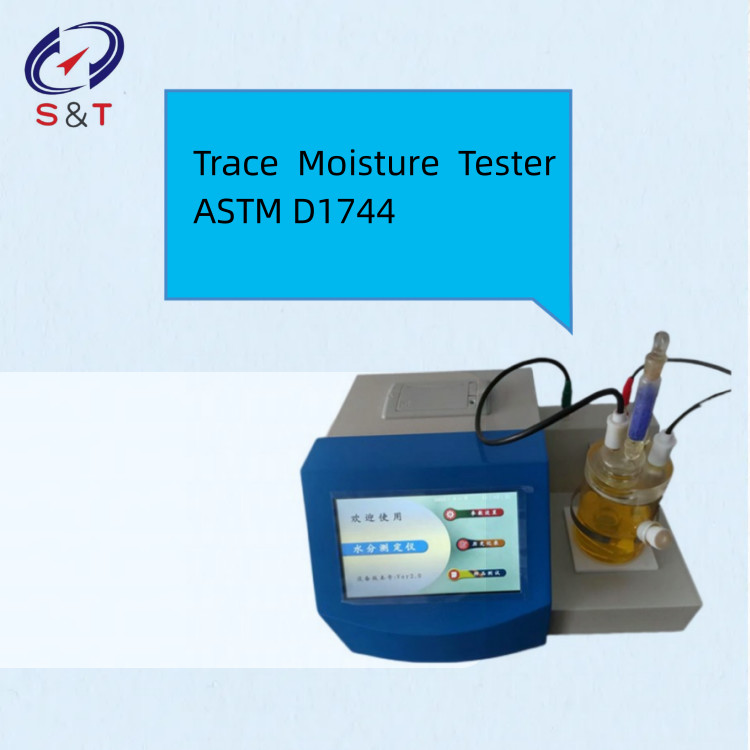

Karl Fischer Moisture Meter Transformer Oil Testing Equipment For Analysis

Product Description:

The Transformer Oil Testing Equipment is designed to provide precise and accurate measurements of moisture content in transformer oil. It can accurately detect moisture levels from 0.1ug to 100g with a sensitivity of not more than 2%, converted to 0.3% above 1mg (excluding injection error). The titration speed is up to 2.5mg/min (Max). This testing equipment is suitable for use in ambient temperatures from 5℃ to 40℃ and has a weight of 35kg. It adopts a fiber optic sensor determination for the decision procedure, and has an automatic calculation system and a temperature range from room temperature to 100℃. Temperature control accuracy is ±0.1℃. The Transformer Oil Testing Equipment is the ideal Karl Fischer Moisture Meter for transformer oil testing.

Features:

• Product Name: Transformer Oil Testing Equipment
• Separation rate: 0.1ug
• Display Mode: LCD Display
• Ambient Temperature: 5℃-40℃
• Titration speed: 2.5mg/min(Max)
• Weight: 35Kg
• Temperature Range: Room temperature-100℃
• Output format: The output format of the result USB flash disk is CSV or EXCEL.
• Temperature control accuracy: ±0.1℃

Technical Parameters:

Applications:

Shengtai Instrument SH103 Transformer Oil Testing Equipment is a reliable and accurate device in the transformer oil testing industry. It is used to measure the moisture of transformer oil, and can quickly and accurately determine the quality of transformer oil. This equipment is mainly used in transformer manufacturing, transformer oil production, transformer oil testing, and transformer oil maintenance industries. It has a high precision, fast response, sensitive sensitivity, and wide range of applications.

The model of Shengtai Instrument SH103 Transformer Oil Testing Equipment has a timing range of 0.0s ~ 999.9s, and a sample quantity of 2 sets of capillary viscometers. It has a sensitivity of 0.1ug-- 100g not more than 2%, converted to 0.3% above 1mg (excluding injection error). The overall dimension of this equipment is 380 * 350 * 390mm. It has an ambient temperature of 5℃-40℃, and an output mode of automatic calculation, which can output Ug, PPM and %. This product has a weight of 35Kg. It has a brand name of Shengtai Instrument, a model number of SH103, a place of origin of China, a certification of factory, a minimum order quantity of 1, a price of email communication, and a packaging of wooden. The delivery time is 5-7 days, and the payment terms are air or shippment. It has a supply ability of 1.

Customization:

Shengtai Instrument SH103 Transformer Oil Testing Equipment is designed with superior features such as a temperature sensor: PT100 platinum resistance;, Temp Range:Room temperature-100℃, Measuring range: 1.5-17000mm2/s. It has a Brand Name of Shengtai Instrument, Model Number of SH103, Place of Origin of China, Certification of Factory, Minimum Order Quantity of 1, Price of Email communicate, Packaging Details of Wooden, Delivery Time of 5-7Days, Payment Terms of Air or shippment, Supply Ability of 1, Ambient Temperature of 5℃-40℃, Power Supply of AC220V/50Hz, Sensitivity of 0.1ug-- 100g Not More Than 2%, Converted To 0.3% Above 1mg (excluding Injection Error), Display Mode of LCD Display and Weight of 35Kg.

Support and Services:

Technical Support and Services for Transformer Oil Testing Equipment

We provide comprehensive support and services for our Transformer Oil Testing Equipment, so that our customers can get the most out of their purchase. We offer:

• 24/7 technical support
• On-site installation and training
• Maintenance and repair services
• Software and hardware upgrades
• Warranty for all parts and components

We are dedicated to providing the best customer service and technical support for our products. Our knowledgeable staff is here to help you with any questions or issues you may have.

Packing and Shipping:

Transformer Oil Testing Equipment will be securely packed in thick, durable cardboard boxes with bubble wrap surrounding the equipment for extra protection. Heavy-duty strapping will be used to ensure the equipment won't move during transit.

The equipment will be shipped via a reliable carrier to the customer's chosen address. Tracking information will be provided to the customer so that they can track the shipment.

FAQ:
