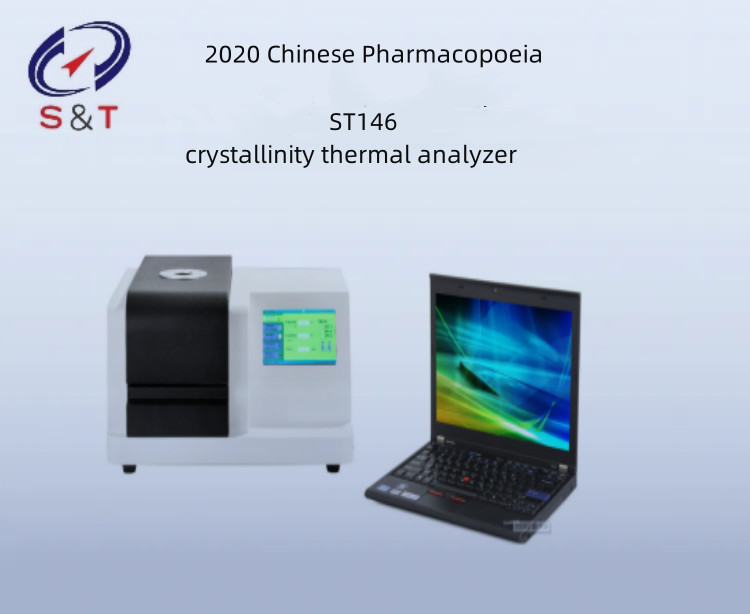

Pharmaceutical Testing Instruments Crystallinity Thermal Analyzer 0981 For Crystallinity Detection

ST146 crystallinity thermal analyzer is designed and manufactured based on the new version of the General Principles of the 2020 Chinese Pharmacopoeia 0981 for crystallinity detection and the 0661 differential scanning calorimetry method. The crystallinity thermal analyzer adopts a touch screen design and can perform tests such as glass transition temperature, phase change, melting and enthalpy values, product stability, curing, specific heat, and oxidation induction period

Technical parameters and characteristics

● Temperature range: room temperature~600 ℃

● Temperature sensitivity: 0.001 ℃

● Temperature fluctuation: ± 0.01 ℃

● Temperature repeatability: ± 0.1 ℃

● Heating rate: 0.1~100 ℃/min

● Data scanning: heating scan, cooling scan, constant temperature scan

● Temperature control method: PID precise control (fully automatic program control); The lower computer interface can set and define PID parameter values to meet different environments and power heating needs; Customizable initial heating power;

● DSC range: 0~± 600mW

● DSC resolution: 0.01uW

● DSC sensitivity: 0.001mW

● Working power supply: AC220V/50Hz or customized

● Atmosphere control gas: nitrogen, oxygen (instrument automatically switches)

● Gas flow rate: 0-300mL/min;

● Display method: 24 bit color, 7-inch LCD touch screen display

● Parameter standard: equipped with standard substance (tin), users can calibrate the temperature themselves

● Software: With specific heat capacity testing function, including specific heat capacity testing standard samples; The software can simultaneously set 6 experimental parameters;

● The software comes with automatic analysis function, data can be generated in Excel format, and experiments can be saved as PDF reports

● An industrial grade 7-inch touch screen with rich display information.

● New metal furnace body structure, better baseline and higher accuracy. Heating adopts an indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is superior to traditional heating modes.

● USB communication interface, strong universality, reliable and uninterrupted communication, supporting self recovery connection function.

★ Data extension: Account layering and audit tracking function (optional)

Note: Gas self provided

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
