Feed Testing Instrument Grain Testing Corn Grain Fatty Acid Value Titration Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ST-59 | Key Words | Grain Fatty Acid Value Titration Tester |
|---|---|---|---|
| Range | 0-300mg KOH/100g | Suction Pump Specification | 10ml |
| Titration Speed Of The Suction Pump | 0.5ml/min-10ml/min (adjustable) | Mixing Speed | 10-250r/min (adjustable) |
| Sample Detection Time | ≤ 10min/sample | Repeatability | ≤ 2 Mg/100g |
| Highlight | Grain Testing Instrument,Corn Grain Testing Instrument,Feed Testing Instrument |
||
Product Description

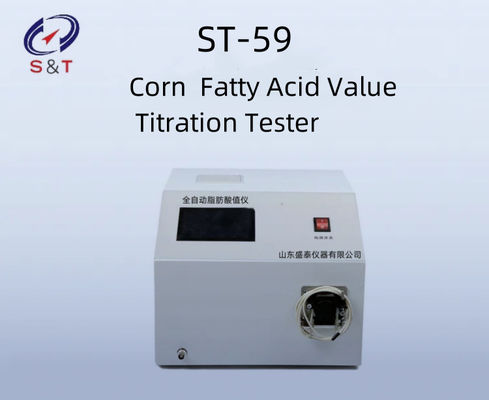

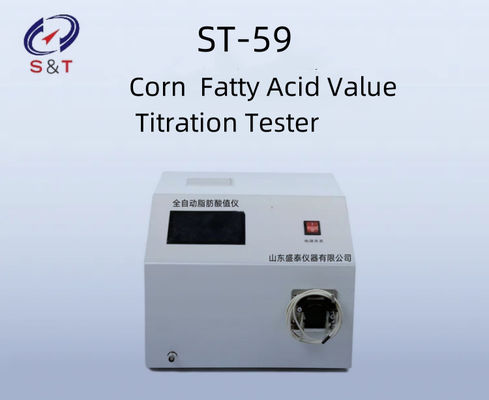

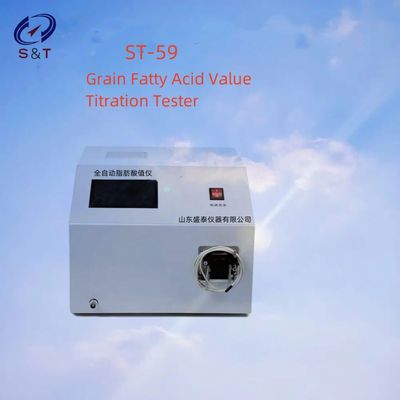

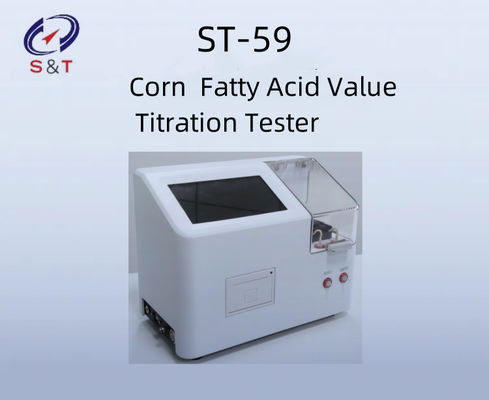

ST-59 Corn Grain Fatty Acid Value Titration Tester is a full-automatic grain fatty acid value tester, which is an automatic titration device based on the color change of titration end point. It is mainly used to measure the fatty acid value of rice, brown rice, rice and other grains. The fatty acid value tester realizes the automation of titration end point determination, measurement, data processing, determination result display and printing, and improves the objectivity and accuracy of the detection results.
Feature
⦿5-inch capacitive touch screen
⦿ More than 10000 pieces of data can be stored
⦿ Single-channel test
⦿Automatic titration device of fatty acid value tester to avoid manual error
⦿ The measurement results are automatically generated and printed without manual intervention
⦿ Large display screen, easy to observe the measurement results
⦿ With calibration function
⦿ Touch screen operation or Windows system upper computer software operation
Specification
| Pump flow accuracy | RSD ≤ 1% |
| Resolution | 0.01 mg KOH/100g dry matter |
| Noise | less than 60dB |
| CV | When the fatty acid value is greater than 12mg/100g, the CV is not greater than 4% |
| Measurement range | 0-300mg KOH/100g dry matter |
| Suction pump specification | 10ml |
| Titration speed of the suction pump | 0.5ml/min-10ml/min (adjustable) |
| Mixing speed | 10-250r/min (adjustable) |
| Sample detection time | ≤ 10min/sample |
| Repeatability | ≤ 2 mg/100g |
| The fatty acid value of rice | double experiment difference ≤ 2mg/100g (meeting GB/T20569 national standard) |
| The fatty acid value of corn | double experiment difference ≤ 2mg/100g (meeting GB/T20570 national standard) |
| Wheat flour | meet the requirements of GB/T 5510 national standard |
| Ambient temperature | 15 ºC - 40 ºC |
| AC | 110V-240V |
ST-59 Corn Grain Fatty Acid Value Titration Tester is a full-automatic grain fatty acid value tester, which is an automatic titration device based on the color change of titration end point. It is mainly used to measure the fatty acid value of rice, brown rice, rice and other grains. The fatty acid value tester realizes the automation of titration end point determination, measurement, data processing, determination result display and printing, and improves the objectivity and accuracy of the detection results.
Feature
⦿5-inch capacitive touch screen
⦿ More than 10000 pieces of data can be stored
⦿ Single-channel test
⦿Automatic titration device of fatty acid value tester to avoid manual error
⦿ The measurement results are automatically generated and printed without manual intervention
⦿ Large display screen, easy to observe the measurement results
⦿ With calibration function
⦿ Touch screen operation or Windows system upper computer software operation
Specification
| Pump flow accuracy | RSD ≤ 1% |
| Resolution | 0.01 mg KOH/100g dry matter |
| Noise | less than 60dB |
| CV | When the fatty acid value is greater than 12mg/100g, the CV is not greater than 4% |
| Measurement range | 0-300mg KOH/100g dry matter |
| Suction pump specification | 10ml |
| Titration speed of the suction pump | 0.5ml/min-10ml/min (adjustable) |
| Mixing speed | 10-250r/min (adjustable) |
| Sample detection time | ≤ 10min/sample |
| Repeatability | ≤ 2 mg/100g |
| The fatty acid value of rice | double experiment difference ≤ 2mg/100g (meeting GB/T20569 national standard) |
| The fatty acid value of corn | double experiment difference ≤ 2mg/100g (meeting GB/T20570 national standard) |
| Wheat flour | meet the requirements of GB/T 5510 national standard |
| Ambient temperature | 15 ºC - 40 ºC |
| AC | 110V-240V |
