Transformer Oil Testing Equipment ASTM D892 Lubricating Oil Insulating Oil Foam Tester

     Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester

The instrument adopts digital PID temperature automatic control system, high temperature control accuracy;

Display using high-definition color touch display, man-machine dialogue intuitive, convenient;

    ASTM D892 Lubricating Oil Foam Characterization Analyzer

 Transformer oil foam tendency tester ASTM D892 

 Foaming Characteristics Test Apparatus for The Foaming Characteristics of Lubricating Oils

 ASTM D892 Lube Oil Foaming Characteristic Tester

 ASTM D892 Foam Tester for Measuring Lubricant's Foaming Tendency and Stability

Automatic timing, air supply, simple test operation, practical.

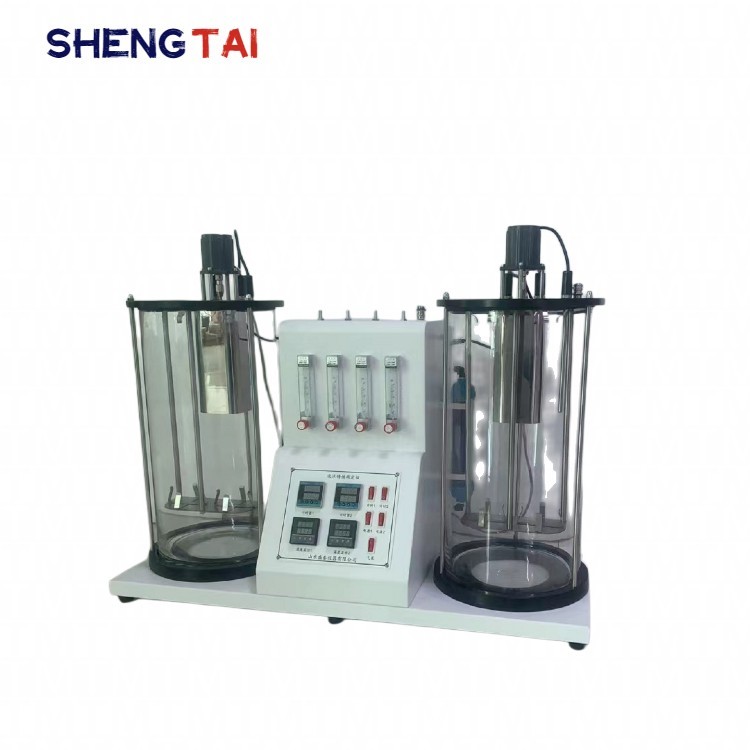

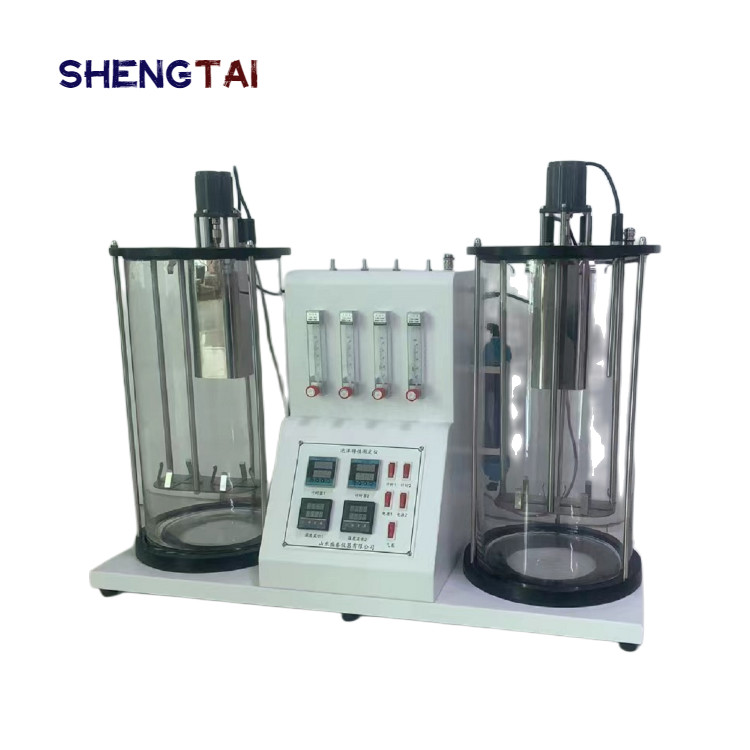

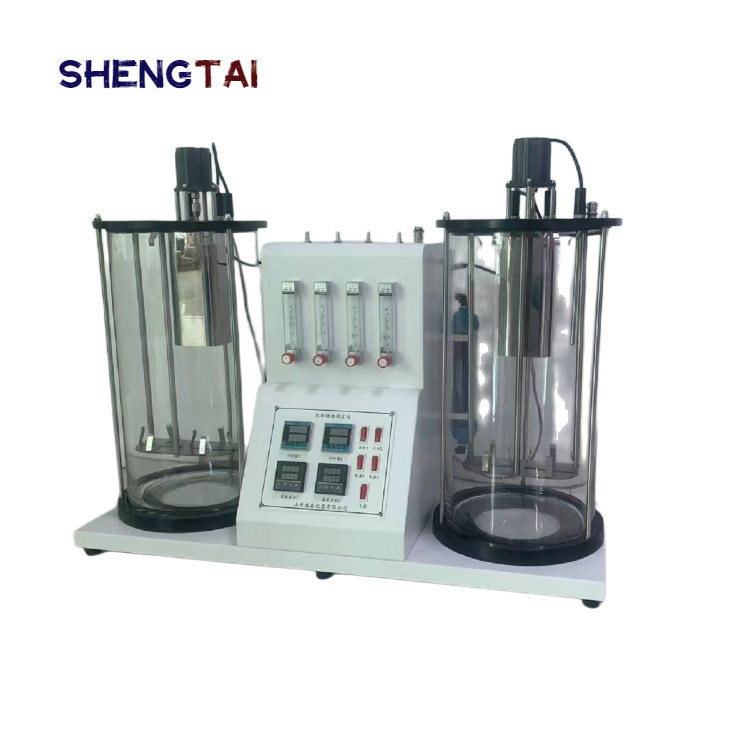

   SH126 Foam Tester is designed and manufactured according to the national standard GB/T12579, which is used to determine the tendency and stability of foam formation of oil products such as fuel oil, lubricating oil, gear oil and hydraulic oil.

  Automatic temperature control, automatic timing, air source and gas flow centralized control, reasonable design, beautiful.

SH126 lubricating oil foam tester conforms to GB/T12579,ASTMD892 method requirements.

It is suitable for testing the foam tendency and foam stability of lubricating oil under the standard conditions.

Technical parameters:

★ Applicable standard: GB/T12579 ASTMD892

Timing mode: automatic timing, accuracy ±1S

★ Temperature control range: 0℃ ~ 99.9℃

Temperature control accuracy: ±0.5℃

★ Temperature control: low temperature bath: 24±0.5℃ high temperature bath: 93.5±0.5℃

★ Flow control: 16 ~ 160ml/min float flow meter, adjustable

Air source: with air source, 3L/min

★ Gas diffuser: 3000 ~ 6000 ml /min, under 2.45 kPa

Timing device: 0 ~ 99.99 hours

Specifications of test cylinder: 1000mL (special cylinder)

Instrument size: 680 * 380 * 550mm Weight: 35kg

Packing list
