Petroleum Product Distillation Apparatus Double Holes
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM D86 ASTM D850 ASTMD1078、ISO3405、ISO918、IP123、IP195 | Key Words | ASTM D850 Distillation Tester (Double Hole &Refrigeration) |
|---|---|---|---|
| Key Word | ASTMD1078 Petroleum Product Distillation Apparatus | Name | ISO3405 Distillation Tester |
| Heating Power Of Electric Furnace | 1000W×2. | Measuring Cylinder Volume | 100 ML, Indexing 1 ML. |
| The Distillation Flask | 125mL | ||
| Highlight | Double Holes petroleum testing instruments,Petroleum Product Distillation Apparatus Double Holes |
||
Product Description

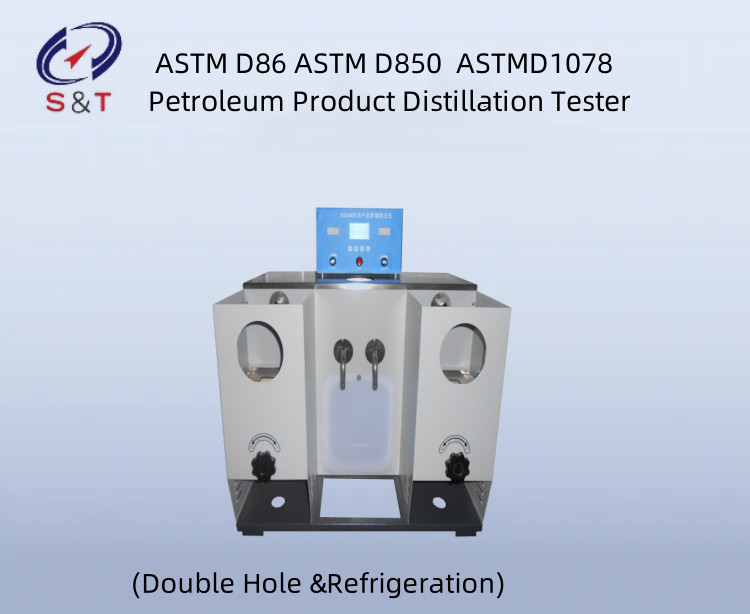

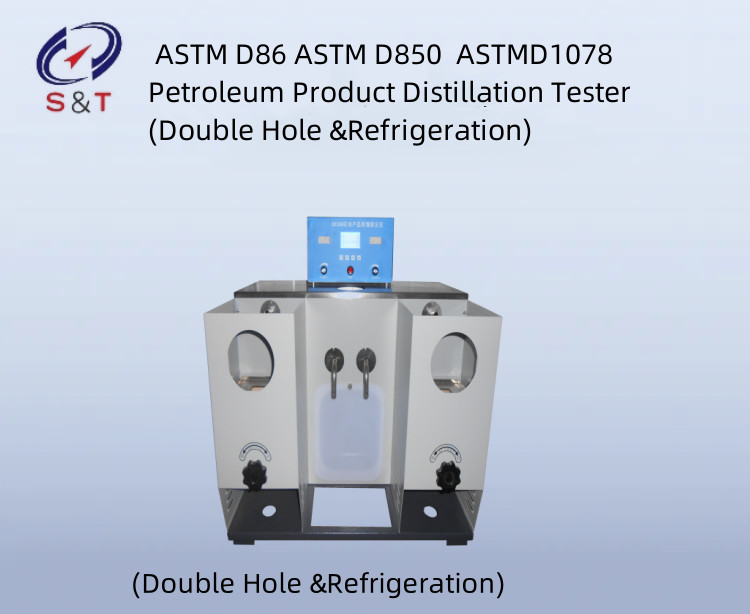

SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.
Petroleum Product Distillation Tester (Double Hole & Refrigeration)
ASTM D86 Petroleum Product Distillation Tester (Double Hole &Refrigeration)
ASTM D850 Distillation Tester (Double Hole &Refrigeration)
ASTMD1078 petroleum product distillation apparatus
ISO3405 Distillation Tester
ASTM D86 ASTM D850 ASTMD1078,ISO3405,ISO918,IP123,IP195
Main technical parameters and technical characteristics
(1) Main technical parameters
⑴ Power supply: AC220V±10%, 50Hz.
⑵ Heating power of electric furnace: 1000W×2.
⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.
The distillation flask: 125mL, in line with the requirements of GB/T6536.
⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.
The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.
① Temperature control range: (0 ~ 80) ℃ arbitrary setting (with refrigeration).
② Temperature control accuracy: ±0.5℃.
③ Temperature display mode: LED digital display.
(8) Compressor circulation refrigeration device
| Item | Distillation Tester |
| Test standard | GB/T6536, ASTM D86 |
| Suitable for | gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products |
| Features | Can test two samples simultaneity |
| Heating power of electric furnace | 1000 W*2, heating power can be continuously adjusted |
| Volume of graduated flask | 100 ml with scale division of 1ml |
| Distillation flask | 125 ml |
| Thermometer | -2~300°C, and -2~400°C |
| Temperature controlling range | (0 ~ 80) ℃ arbitrary setting (with refrigeration). |
| Receiver compartment temperature | 1 ~ 60°C |
| Temperature controlling accuracy | ±0.5°C |
| Power supply | AC 220V±10%, 50 Hz |
| Ambient temperature: ≤+35°C | ≤+35°C |
| Relative humidity | ≤85% |
| Total power consumption | ≤2500 W |
SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.
Petroleum Product Distillation Tester (Double Hole & Refrigeration)
ASTM D86 Petroleum Product Distillation Tester (Double Hole &Refrigeration)
ASTM D850 Distillation Tester (Double Hole &Refrigeration)
ASTMD1078 petroleum product distillation apparatus
ISO3405 Distillation Tester
ASTM D86 ASTM D850 ASTMD1078,ISO3405,ISO918,IP123,IP195
Main technical parameters and technical characteristics
(1) Main technical parameters
⑴ Power supply: AC220V±10%, 50Hz.
⑵ Heating power of electric furnace: 1000W×2.
⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.
The distillation flask: 125mL, in line with the requirements of GB/T6536.
⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.
The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.
① Temperature control range: (0 ~ 80) ℃ arbitrary setting (with refrigeration).
② Temperature control accuracy: ±0.5℃.
③ Temperature display mode: LED digital display.
(8) Compressor circulation refrigeration device
| Item | Distillation Tester |
| Test standard | GB/T6536, ASTM D86 |
| Suitable for | gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products |
| Features | Can test two samples simultaneity |
| Heating power of electric furnace | 1000 W*2, heating power can be continuously adjusted |
| Volume of graduated flask | 100 ml with scale division of 1ml |
| Distillation flask | 125 ml |
| Thermometer | -2~300°C, and -2~400°C |
| Temperature controlling range | (0 ~ 80) ℃ arbitrary setting (with refrigeration). |
| Receiver compartment temperature | 1 ~ 60°C |
| Temperature controlling accuracy | ±0.5°C |
| Power supply | AC 220V±10%, 50 Hz |
| Ambient temperature: ≤+35°C | ≤+35°C |
| Relative humidity | ≤85% |
| Total power consumption | ≤2500 W |
