Four Holes Kjeldahl Nitrogen Analyzer Protein Analyzer Power 1200W

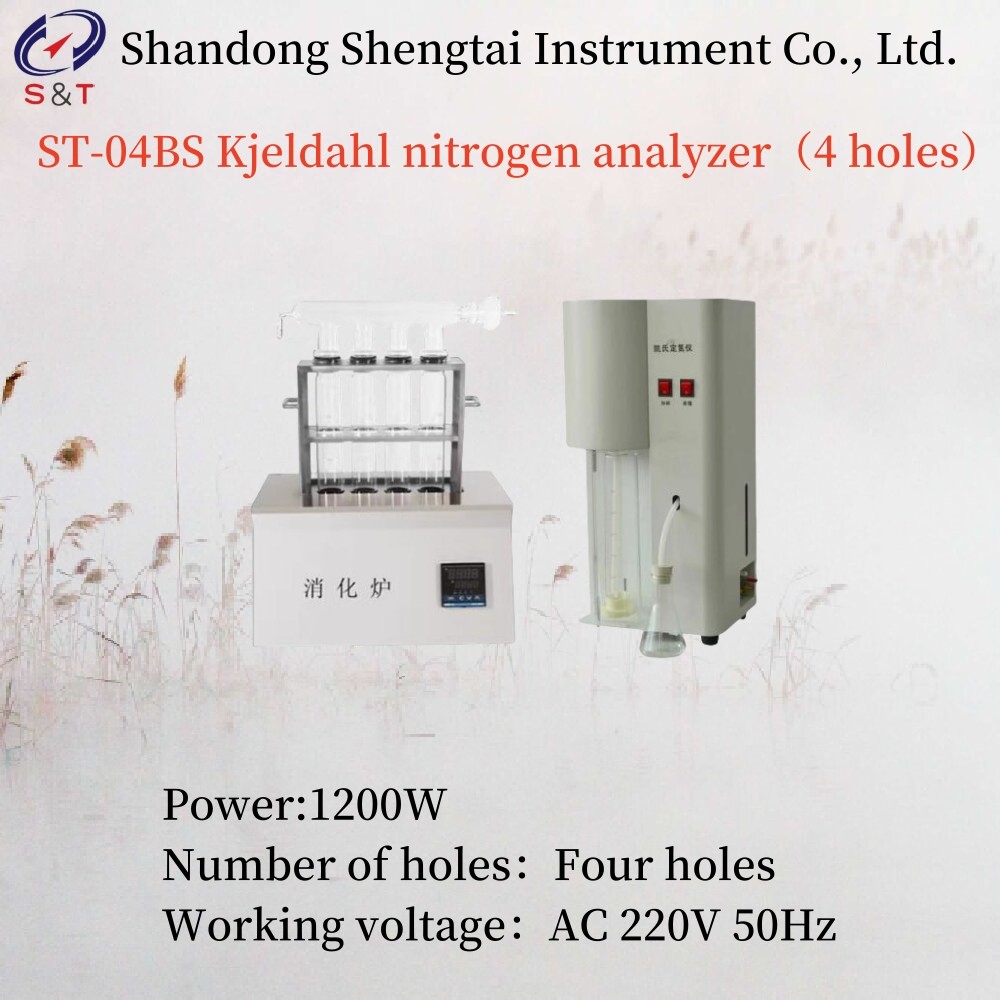

ST-04BS Kjeldahl nitrogen analyzer(4 holes)

ST-04BS=ST-04B nitrogen still+ST-04C digital digestion furnace

ST-04BS nitrogen analyzer (also known as protein analyzer) is a series of products designed by our company based on the principle of Kjeldahl nitrogen determination. It is mainly used to detect the content of ammonia nitrogen, protein nitrogen, and other substances in grains, food, dairy products, beverages, feed, soil, water, drugs, sediments, and chemicals. The test results meet the indicators specified in GB/T6432-2018.

Technical parameters:

Determination of varieties:grains,food,dairy products,beverages,feed,soil,water,drugs,sediment,chemicals,etc

Measurement range:nitrogen content 0.05-90%(0.1-200mg nitrogen)

Working voltage:AC 220V 50Hz

Accuracy:Relative difference of 1%

Number of holes:Four holes

Power:1200W

Distiller:800W

Weight:25kg

SIze:380 x 330 x 820mm

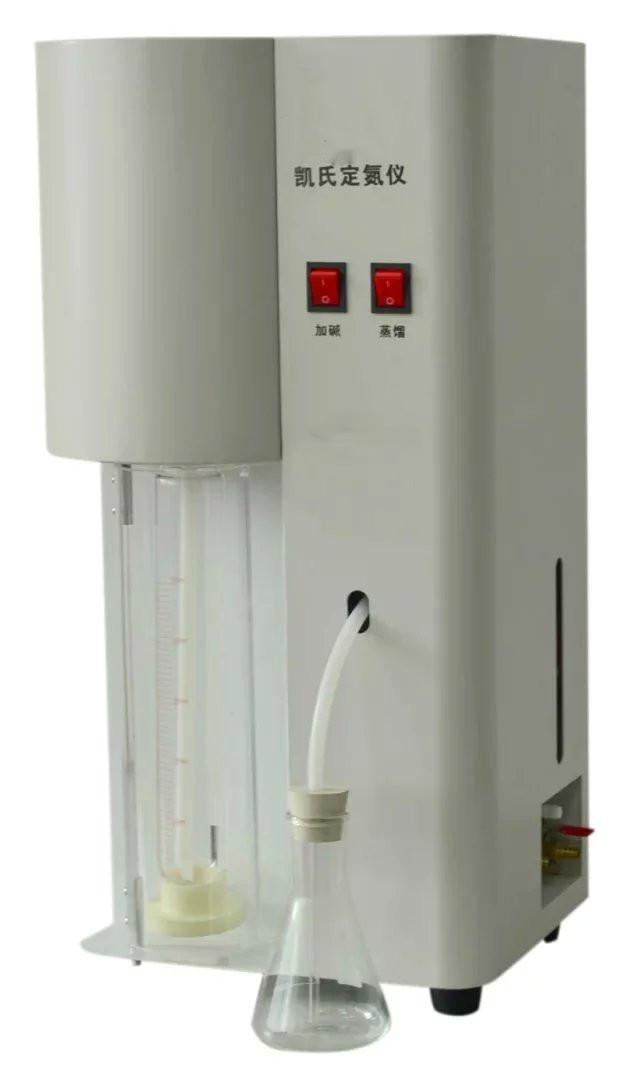

Distiller:Distilled water is fed into the still.

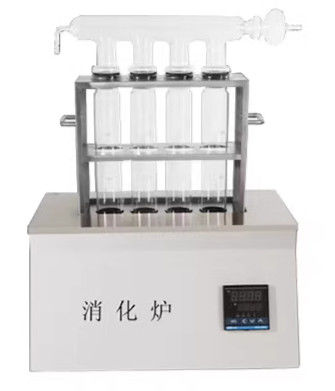

The nitrogen analyzer mainly consists of two parts: an electric heating digestion furnace and a still:It takes about 40 minutes for an electric heating digestion furnace to digest a batch of samples. Harmful gases such as SO2 that escape from digestion are discharged from the water into the sewer through the drainage pipe on the digestion furnace and the exhaust tee.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
