Room Temp-999℃ Automatic Activated Carbon Ignition Point Tester AC220V 50Hz

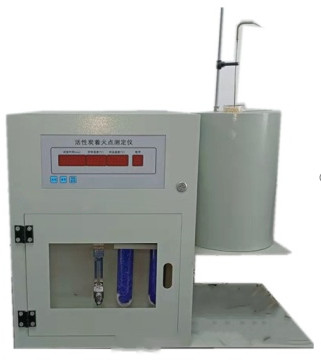

ST-63 Automatic activated carbon ignition point tester

ST-63 fully automatic activated carbon ignition point tester is suitable for measuring the ignition point of activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.9 "Test Methods for Coal Granular Activated Carbon - Determination of ignition point" and GBT 20450-2006. The fully automatic activated carbon ignition point tester software comes with a database function, and the temperature points corresponding to each time point are automatically recorded during the experimental process. Users can analyze the ignition point characteristics of the current experimental activated carbon after the experiment.

Working principle: The computer automatically controls and describes the determination of the reference ignition point of granular activated carbon in flowing air. The computer automatically and accurately obtains the ignition point, visually displays the time temperature curve and results of the heating process, and prints the curve and experimental results through a color printer. The computer software of this instrument saves all experimental data.

Standard:GB/T7702.9,ASTM D3466,JIS K1474

Main technical parameters:

●Control method: digital tube control and computer operation

●Temperature measurement range: room temperature -999 ℃

●Thermocouple accuracy: furnace temperature

●thermocouple: Class A sample thermocouple: Class 0.5

Temperature resolution: 1 ℃

● Experimental time: Automatically judge the results and stop the experiment automatically

● Heating rate: about 10 ℃/min before 150 ℃; After 150 ℃, 2 ℃ -3 ℃/min

● Fire point: Computer automatically calculates the fire point

● Drawing curves: Computer automatically draws experimental curves

●Carbon layer height: 25mm ± 1mm

●Burning tube: National standard quartz burning tube

●Flowmeter range: 0L/min-20L/min

●Quartz beads (high-temperature beads): diameter 3-4mm

● Database function: Yes (can export test process data)

●Printing method: Computer color A4 printer printing

● Overall power: ＜ 2000W

●Voltage: AC220V 50Hz

● Overall dimensions: (excluding computer) L * W * H 700mm * 430mm * 580mm

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
