Power＜ 2000W Activated Carbon Tetrachloride Adsorption Rate Instrument COD Voltage AC220V 50HZ

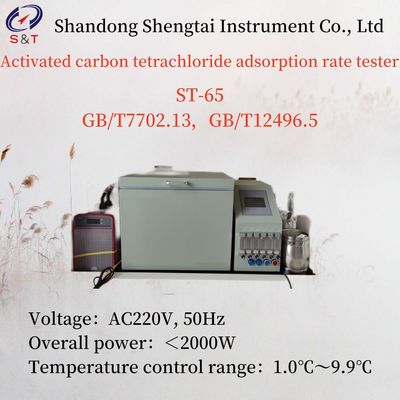

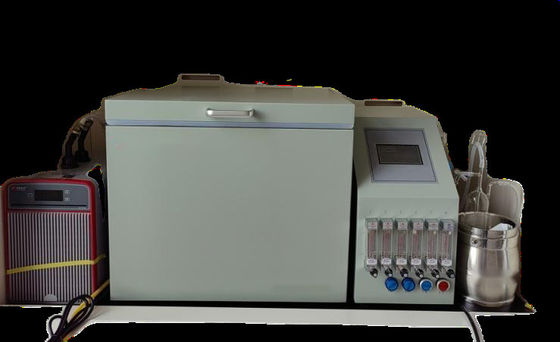

ST-65 Activated carbon tetrachloride adsorption rate tester

The ST-65 Activated Carbon Tetrachloride Adsorption Rate tester is suitable for measuring the carbon tetrachloride adsorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the national standards of GB/T7702.13 Test Methods for Coal based Granular Activated Carbon - Determination of Carbon tetrachloride adsorption rate and GB/T12496.5 Test Methods for Wooden Activated Carbon - Determination of Carbon tetrachloride adsorption rate (activity). The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.

The activated carbon tetrachloride desorption rate meter adopts a 4.3-inch intelligent touch screen, which automatically controls the constant temperature of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The new intelligent timing function allows for arbitrary setting of working hours, avoiding the uncertainty of manual timing.

Adopting a high-precision platinum probe and a non fixed probe design, it can detect real-time temperature at each working point of the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient.

Main technical parameters

●Display method: LCD screen display

lCarbon layer height: (10 ± 0.2) cm

●Adsorption temperature: (25 ± 1) ℃ [The serpentine tube must ensure that the airflow temperature reaches the water bath temperature, which is (25 ± 1) ℃].

lMeasure the cross-sectional area of the tube: (3.15 ± 0.26) c ㎡.

lNumber of samples: 6

●Refrigeration method: compressor refrigeration

lTiming function: The steam time can be set arbitrarily, and the gas will automatically stop at the end of the timing

lSteam generator bottle: 60 * 280

lTemperature control range: 1.0 ℃ -9.9 ℃

lDisplay accuracy: ± 0.1 ℃

lPurification device: (50mm * 320mm) * 2

lSteam generator bottle: 60 * 280

●Overall power: ＜ 2000W

lExternal dimensions: length x width x height

Temperature control unit: 255 x 550 x 450mm

Water bath unit: 570 x 525 x 510 mm

Refrigeration unit: 200 x 340 x 300 mm

●Voltage: AC220V, 50Hz
