3KW Activated Carbon Tetrachloride Desorption Rate Meter AC220V 50Hz 10L

ST-66 Activated carbon tetrachloride desorption rate meter

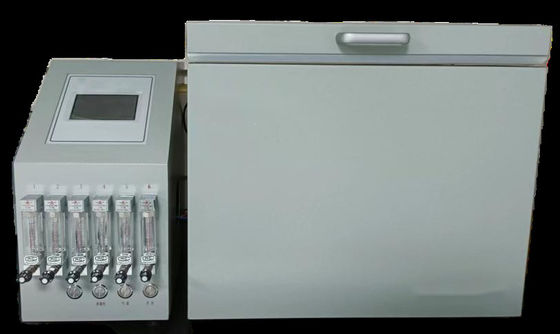

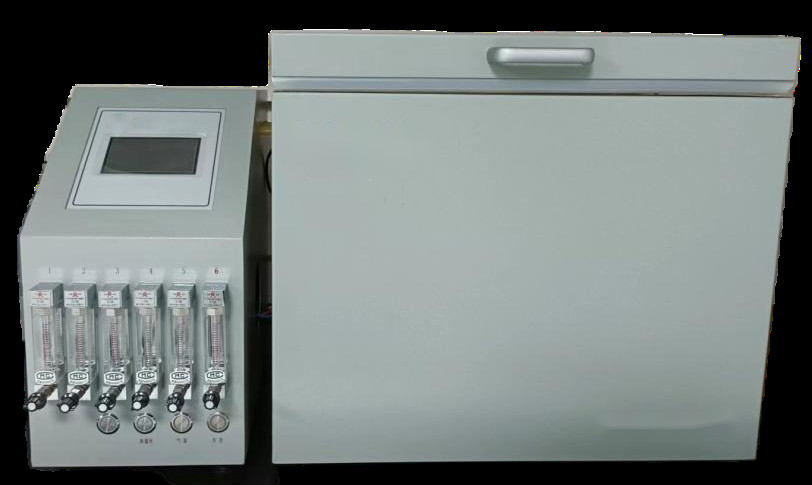

ST-66 Activated Carbon Tetrachloride Desorption rate meter is suitable for measuring the tetrachloride desorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.19 "Test methods for coal based granular activated carbon - Determination of tetrachloride desorption rate". The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.

The activated carbon tetrachloride desorption rate meter adopts a 4.3-inch intelligent touch screen, which automatically controls the constant temperature of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The new intelligent timing function allows for arbitrary setting of working hours, avoiding the uncertainty of manual timing.

Adopting a high-precision platinum probe and a non fixed probe design, it can detect real-time temperature at each working point of the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient. This instrument device needs to be used in conjunction with the ST-65 carbon tetrachloride adsorption rate tester

Main technical parameters

Display method: LCD screen display

Temperature control method: fully automatic heating

Carbon layer height: (10 ± 0.2) cm

Measure the cross-sectional area of the tube: (3.15 ± 0.26) c㎡.

Timing function: The steam time can be set arbitrarily, and the gas will automatically stop at the end of the timing

Purification device: (50mm x 320mm) x 2

Flow meter: 10L

Temperature control accuracy: 80 ℃± 0.1 ℃

Heating power: 3KW

Number of samples: 6

External dimensions: length x width x height

Temperature control system: 255 mm x 550 mm x 450mm

Thermostatic water bath: 570mm x 525 mm x 510 mm

Voltage: AC220V 50Hz

ST-66 Activated Carbon Tetrachloride Desorption rate meter is suitable for measuring the tetrachloride desorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.19 "Test methods for coal based granular activated carbon - Determination of tetrachloride desorption rate". The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.
