GB/T 5509-2008 ST113 Flour Magnetic Metal Tester AC220V Motor Power 50W
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Specimen Volume | 1 Kg | Specimen Recovery Rate | Not Less Than 95% |
|---|---|---|---|
| Blade Speed | 50 R/min | Motor Speed | 50 R/min |
| Motor Power | 50W | Working Voltage | AC220V |
| Total Weight | 12 Kg | ||
| Highlight | AC220V Flour Magnetic Metal Tester,50W Flour Magnetic Metal Tester,50W Flour Magnetic Metal Detector |
||
Product Description

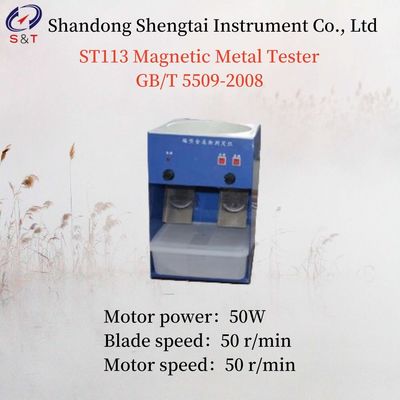

ST113 Magnetic Metal Tester
ST113 Flour Magnetic Metal Tester is a special testing instrument developed and produced according to the national standard of GB/T 5509-2008 "Grain and oil inspection powder magnetic metal matter determination method". It is suitable for quality supervision, flour (and all kinds of grain flour) processing, grain storage and transportation, purchase and sales, scientific research and other departments that need to determine the content of powdered magnetic metals.
Technical specifications:
| Maximum specimen volume | 1 kg |
| Specimen recovery rate | not less than 95% |
| Blade speed | 50 r/min |
| Motor speed | 50 r/min |
| Motor power | 50W |
| Working voltage |
AC220V
|
| Total weight | 12 kg |
| Overall dimensions |
255×275×385 mm |
Technical specifications of magnetic separation plate
| Magnetic induction strength |
not less than 120mT
|
| Strong magnetic area size | 130mm×130mm |
| Separation plate size | 210mm×210mm×6mm |
Packing list
| S/N | NAME | Quantity | unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Magnetic separator plate | 1 | piece | |
| 3 | Power cord | 1 | piece | |
| 4 | Fuse tube | 1 | piece | 10 Ain the safe seat |
| 5 | Instruction manual | 1 | copy | |
| 6 | Warranty card | 1 | copy |
ST113 Flour Magnetic Metal Tester is a special testing instrument developed and produced according to the national standard of GB/T 5509-2008 "Grain and oil inspection powder magnetic metal matter determination method". It is suitable for quality supervision, flour (and all kinds of grain flour) processing, grain storage and transportation, purchase and sales, scientific research and other departments that need to determine the content of powdered magnetic metals.
Technical specifications:
| Maximum specimen volume | 1 kg |
| Specimen recovery rate | not less than 95% |
| Blade speed | 50 r/min |
| Motor speed | 50 r/min |
| Motor power | 50W |
| Working voltage |
AC220V
|
| Total weight | 12 kg |
| Overall dimensions |
255×275×385 mm |
Technical specifications of magnetic separation plate
| Magnetic induction strength |
not less than 120mT
|
| Strong magnetic area size | 130mm×130mm |
| Separation plate size | 210mm×210mm×6mm |
Packing list
| S/N | NAME | Quantity | unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Magnetic separator plate | 1 | piece | |
| 3 | Power cord | 1 | piece | |
| 4 | Fuse tube | 1 | piece | 10 Ain the safe seat |
| 5 | Instruction manual | 1 | copy | |
| 6 | Warranty card | 1 | copy |
