AC220V 50HZ Coarse Fiber Tester Tests Fiber Analyzer Measuring Sample 6/Times
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Object | Raw Fiber Content In Various Kinds Of Grain, Feed, Food And Other Agriculture And Sideline Products | Measuring Sample Quantity | 6/times |
|---|---|---|---|
| Raw Fiber Level | < 10% | Absolute Value Erroe | ≤0.4% |
| Raw fiber Level | >10% | Absolute Value Error | ≤4% |
| Measuring Time | About 100min (including Acid 40min, Alkali 40min, Filter And Wash 20 Min) | Power | AC220V/50HZ |
| Size | 540×450×670mm | Weight | 28kg |
| Highlight | AC220V 50HZ Coarse Fiber tester,Coarse Fiber Analyzer,Coarse Fiber Measuring |
||
Product Description

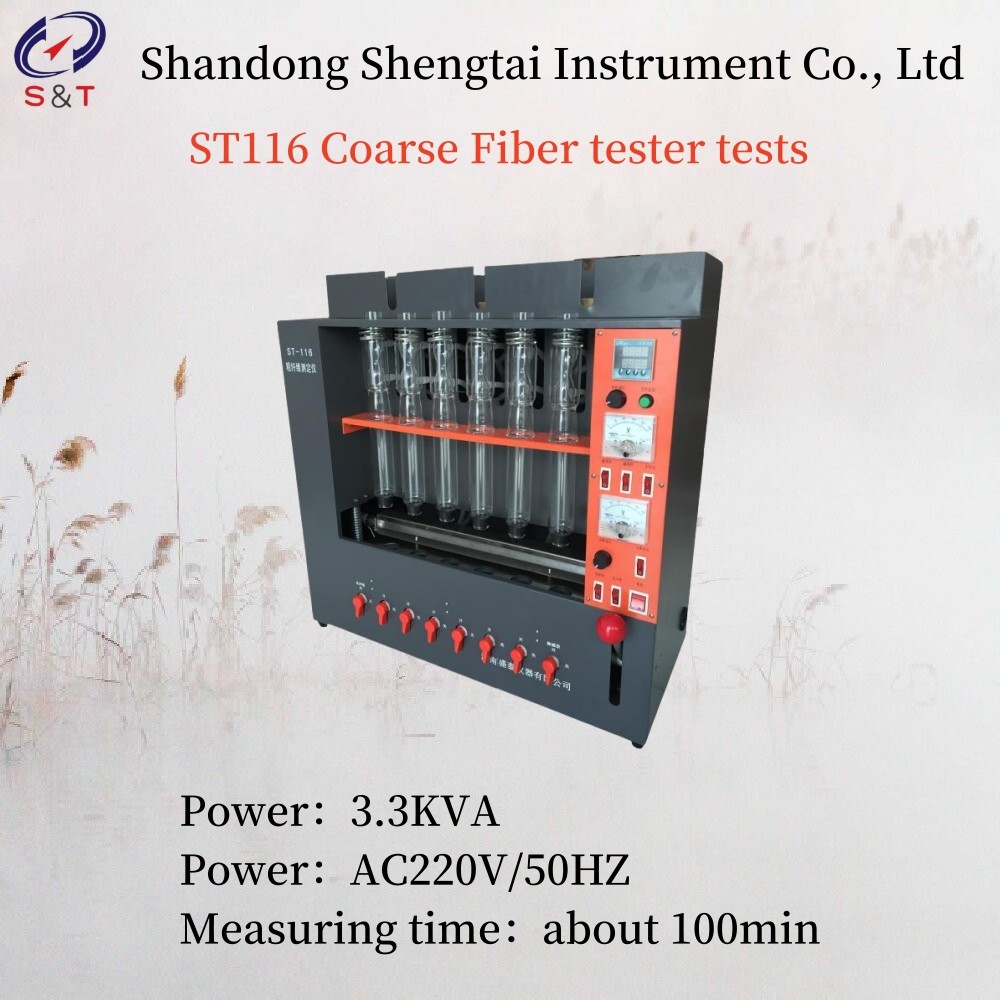

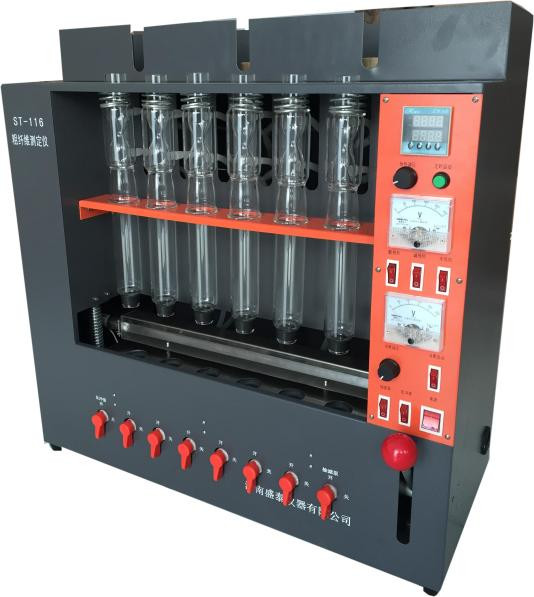

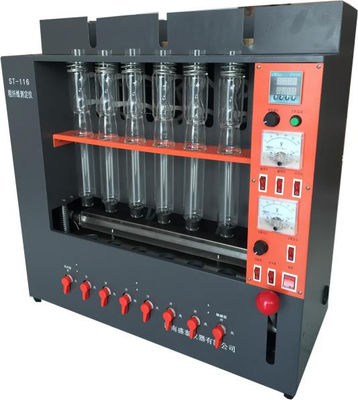

ST116 Coarse Fiber tester tests
ST116 Coarse Fiber tester tests raw fiber content according to acid and alkali boiling method.It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by C₂H₅OC₂H₅, deduct the amount of minerals by high temperature burning.
Hot Sale Crude Fiber Tester /Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Tester
Raw Fiber Analyzer Lab Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Analyzer
Technical parameter
Measuring object: raw fiber content in various kinds of grain, feed, food and other agriculture and sideline products
Measuring sample quantity: 6/times
Reproducibility error:
Raw fiber level < 10% absolute value erroe≤0.4%
Raw fiber level >10% absolute value error≤4%
Measuring time: about 100min (including acid 40min, alkali 40min, filter and wash 20 min)
Power: AC220V/50HZ,
Size: 540×450×670mm
Weight: 28kg
| Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error | Raw fiber level < 10% absolute value error≤0.4% Raw fiber level >10% absolute value error≤4% |
| Measuring time | It takes about 90 minutes on the instrument (including 30 minutes for acid, 30 minutes for alkali, and about 30 minutes for filtration and washing); |
| Power: | 3.3KVA |
| Size: 540×450×670mm Weight:28kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Fiber crucible | 6 | piece | |
| 3 | Glass Flask | 3 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | 10A in the safety seat |
| 6 | instructions | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
ST116 Coarse Fiber tester tests raw fiber content according to acid and alkali boiling method.It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by C₂H₅OC₂H₅,deduct the amount of minerals by high temperature burning.
Hot Sale Crude Fiber Tester /Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Tester
Raw Fiber Analyzer Lab Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Analyzer
Technical parameter
Measuring object: raw fiber content in various kinds of grain, feed, food and other agriculture and sideline products
Measuring sample quantity: 6/times
Reproducibility error:
Raw fiber level < 10% absolute value erroe≤0.4%
Raw fiber level >10% absolute value error≤4%
Measuring time: about 100min (including acid 40min, alkali 40min, filter and wash 20 min)
Power: AC220V/50HZ,
Size: 540×450×670mm
Weight: 28kg
| Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error | Raw fiber level < 10% absolute value error≤0.4% Raw fiber level >10% absolute value error≤4% |
| Measuring time | It takes about 90 minutes on the instrument (including 30 minutes for acid, 30 minutes for alkali, and about 30 minutes for filtration and washing); |
| Power: | 3.3KVA |
| Size: 540×450×670mm Weight:28kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Fiber crucible | 6 | piece | |
| 3 | Glass Flask | 3 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | 10A in the safety seat |
| 6 | instructions | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
