GB5494-2008 Electronic Sieve Shaker Electronic Sieving Apparatus Rotation Speed 120r/Min
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Sieving Quantity Range | 500 | Sieving Frame Level | 3 Layers |
|---|---|---|---|
| Sieving Range | 100mm | Rotation Speed | 120r/min |
| Sieve Diameter | 220mm (grain Sieve Should Buy Separately) | Rotation Time | 60s |
| Power | 60W AC220V 50Hz | Weight | 22kg |
| Outer Package Size | 400mm × 400mm × 200mm | ||
| Highlight | GB5494-2008 Electronic Sieve Shaker,3 layers Electronic Sieving Apparatus,120r/Min Electronic Sieving Apparatus |
||
Product Description

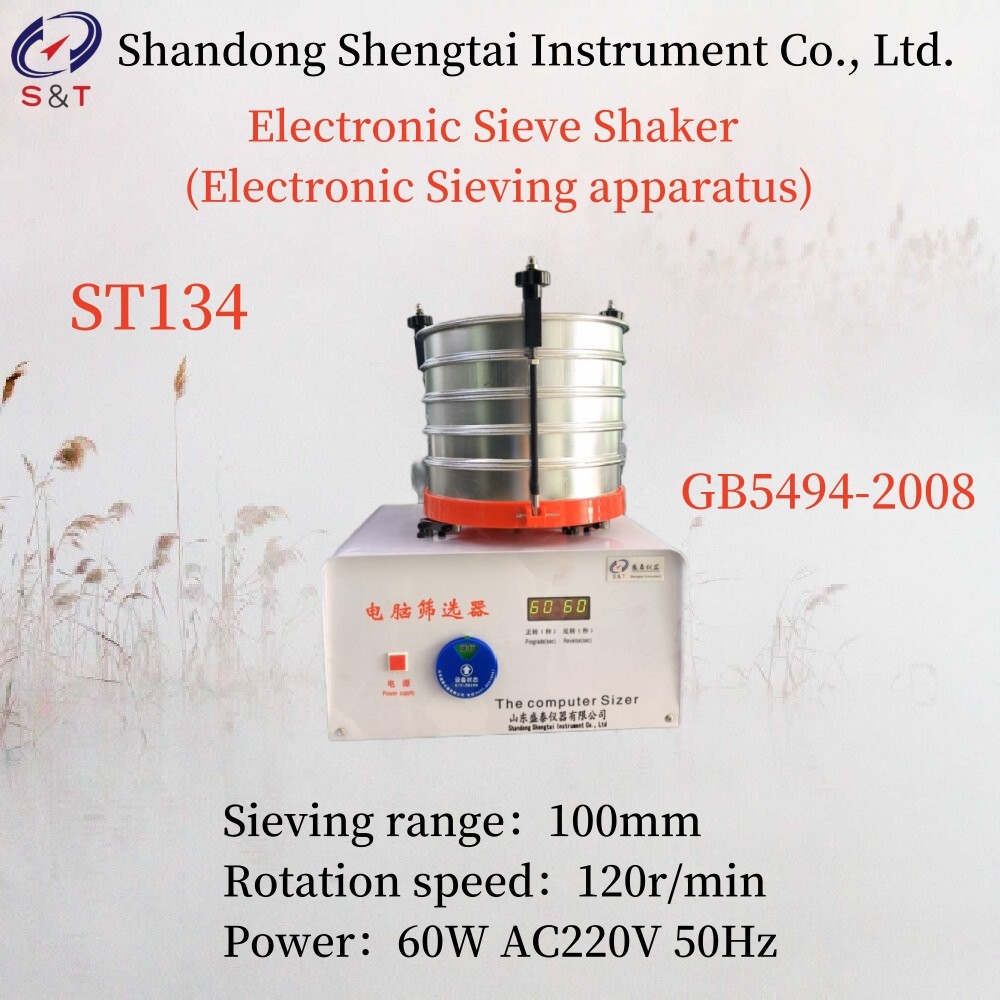

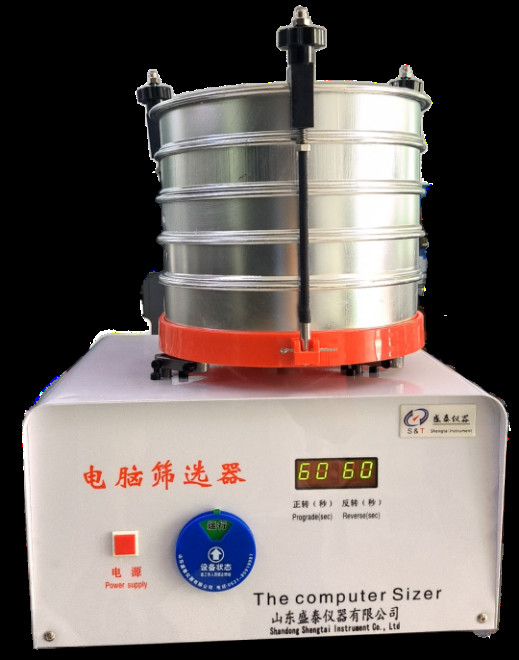

ST134 Electronic Sieve Shaker (Electronic Sieving apparatus)
ST134 electric Sieve shaker is a kind of special equipment developed according to GB5494-2008 inspection method for impurities and imperfect particles in grain and oil products .It is a semi-automatic mechanical screen with table structure, worm gear as variable speed transmission, screen body supported by three-point plane, and plane rotation by eccentric connecting rod
Characteristics:
Separate automatically
Compact and reasonable structure
Smooth operation, stable performance, easy to operate
Technical parameters:
| Max sieving quantity range | 500 |
| Sieving frame level | 3 layers |
| Sieving range | 100mm |
| Rotation speed | 120r/min |
| Sieve diameter | 220mm (grain sieve should buy separately) |
| Rotation time | 60s |
| Power | 60W AC220V 50Hz |
| Weight | 22kg |
| Outer package size | 400mm × 400mm × 200mm |
ST134 electric Sieve shaker is a kind of special equipment developed according to GB5494-2008 inspection method for impurities and imperfect particles in grain and oil products .It is a semi-automatic mechanical screen with table structure, worm gear as variable speed transmission, screen body supported by three-point plane, and plane rotation by eccentric connecting rod
Characteristics:
Separate automatically
Compact and reasonable structure
Smooth operation, stable performance, easy to operate
Technical parameters:
| Max sieving quantity range | 500 |
| Sieving frame level | 3 layers |
| Sieving range | 100mm |
| Rotation speed | 120r/min |
| Sieve diameter | 220mm (grain sieve should buy separately) |
| Rotation time | 60s |
| Power | 60W AC220V 50Hz |
| Weight | 22kg |
| Outer package size | 400mm × 400mm × 200mm |
ST134 electric Sieve shaker is a kind of special equipment developed according to GB5494-2008 inspection method for impurities and imperfect particles in grain and oil products .It is a semi-automatic mechanical screen with table structure, worm gear as variable speed transmission, screen body supported by three-point plane, and plane rotation by eccentric connecting rod
Characteristics:
Separate automatically
Compact and reasonable structure
Smooth operation, stable performance, easy to operate
Technical parameters:
| Max sieving quantity range | 500 |
| Sieving frame level | 3 layers |
| Sieving range | 100mm |
| Rotation speed | 120r/min |
| Sieve diameter | 220mm (grain sieve should buy separately) |
| Rotation time | 60s |
| Power | 60W AC220V 50Hz |
| Weight | 22kg |
| Outer package size | 400mm × 400mm × 200mm |
ST134 electric Sieve shaker is a kind of special equipment developed according to GB5494-2008 inspection method for impurities and imperfect particles in grain and oil products .It is a semi-automatic mechanical screen with table structure, worm gear as variable speed transmission, screen body supported by three-point plane, and plane rotation by eccentric connecting rod
