GB16765 Pellet Durability Index Tester Feed Durability Tester ISO17831 Speed 50 Rpm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Rotating Boxes | 2 | Rotation Speed | 50 Rpm |
|---|---|---|---|
| Number Of Turns | 500 Revolutions / Time | Usage Time | 10 Minutes |
| Box Size | 300*200*125mm | Time Adjustment Range | 0-10000s |
| Power Distribution | 120W 1440r / Min | Overall Dimension | 460*380*405mm |
| Package Size | 520×400×470mm | ||
| Highlight | GB16765 Pellet Durability Index Tester,ISO17831 Feed Durability Tester,50 Rpm Feed Durability Tester |
||
Product Description

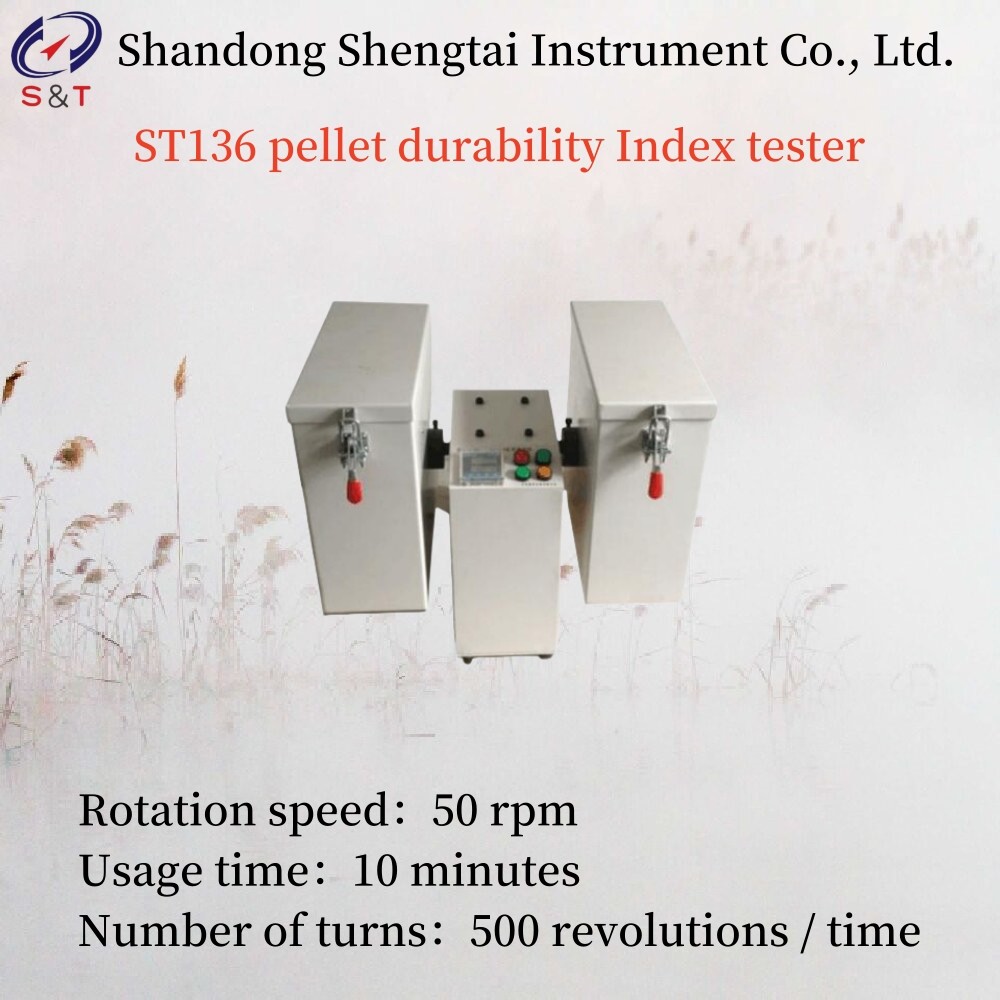

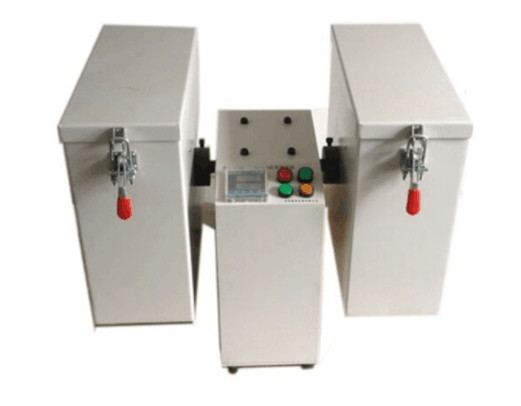

ST136 pellet durability Index tester
ST136 Pellet durability tester (particle pulverization rate tester) is designed and manufactured strictly in accordance with GB16765 General Technical Conditions for Pellet Feed and ISO17831 Standard for Mechanical Durability of Solid Biofuel Particles and Compression Blocks
pellet durability Index feed durability Index
Pellet durability Index tester is one of the most important indicators to reflect the quality of pellet feed. It is used to measure the relative ability of pellet crushing resistance in the process of conveying and handling of pellet pellet products
The higher the PDI value, the stronger the crushing resistance, the better the particle quality and the higher the pellet utilization.
Main technical parameter
| Number of rotating boxes | 2 |
| Rotation speed | 50 rpm |
| Number of turns | 500 revolutions / time |
| Usage time | 10 minutes |
| Box size | 300*200*125mm |
| Time adjustment range | 0-10000s |
| Power distribution | 120W 1440r / min |
| Overall dimension | 460*380*405mm |
| package size | 520×400×470mm |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Brush | 1 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Instructions | 1 | copy | |
| 6 |
Packing list
|
1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
ST136 Pellet durability tester (particle pulverization rate tester) is designed and manufactured strictly in accordance with GB16765 General Technical Conditions for Pellet Feed and ISO17831 Standard for Mechanical Durability of Solid Biofuel Particles and Compression Blocks
pellet durability Index feed durability Index
Pellet durability Index tester is one of the most important indicators to reflect the quality of pellet feed. It is used to measure the relative ability of pellet crushing resistance in the process of conveying and handling of pellet pellet products
The higher the PDI value, the stronger the crushing resistance, the better the particle quality and the higher the pellet utilization.
Main technical parameter
| Number of rotating boxes | 2 |
| Rotation speed | 50 rpm |
| Number of turns | 500 revolutions / time |
| Usage time | 10 minutes |
| Box size | 300*200*125mm |
| Time adjustment range | 0-10000s |
| Power distribution | 120W 1440r / min |
| Overall dimension | 460*380*405mm |
| package size | 520×400×470mm |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Brush | 1 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Instructions | 1 | copy | |
| 6 |
Packing list
|
1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
